Pinout Values and Diagnostic Parameters

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: TERMINALS OF ECU

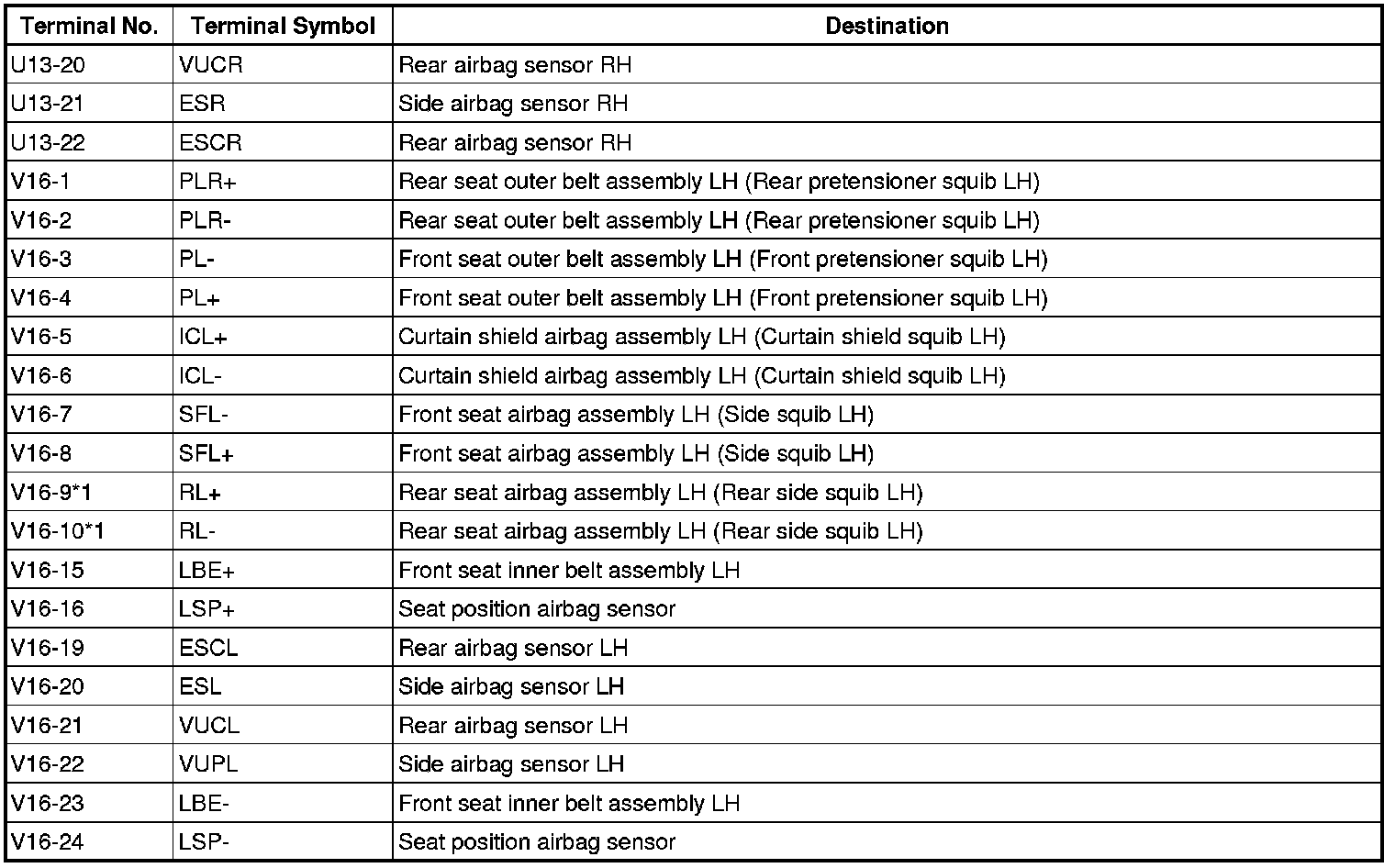

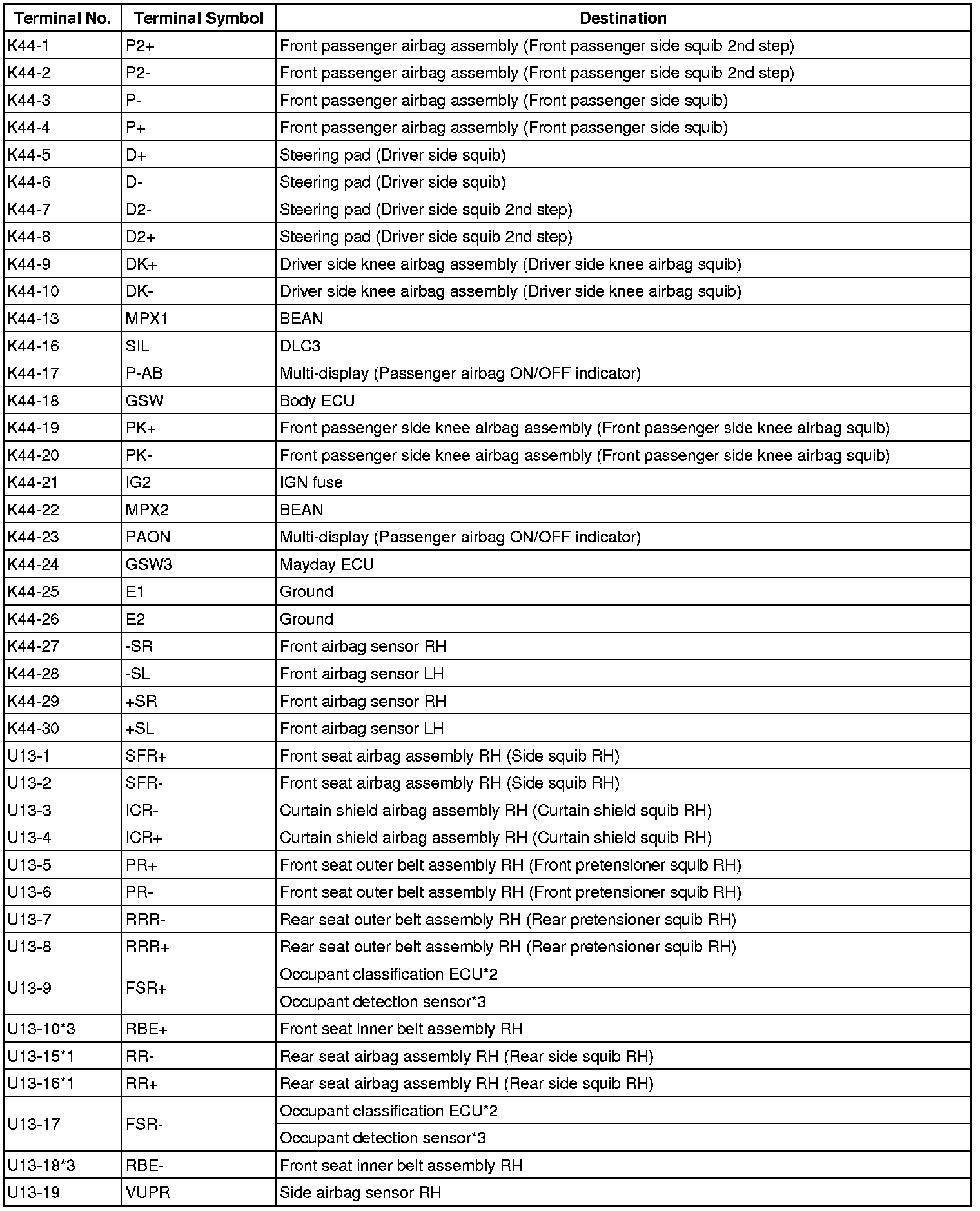

1. CENTER AIRBAG SENSOR ASSEMBLY













*1: w/ Rear Side Airbag
*2: w/ Occupant Classification System
*3: w/o Occupant Classification System
