Installation

SUSPENSION CONTROL: FRONT ACTIVE STABILIZER CONTROL ECU: INSTALLATION

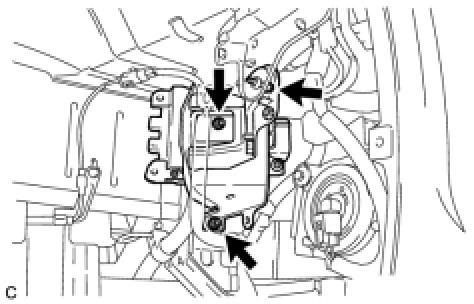

1. INSTALL FRONT ACTIVE STABILIZER CONTROL ECU






(a) Install the ECU with the bolt and 2 nuts.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf)
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

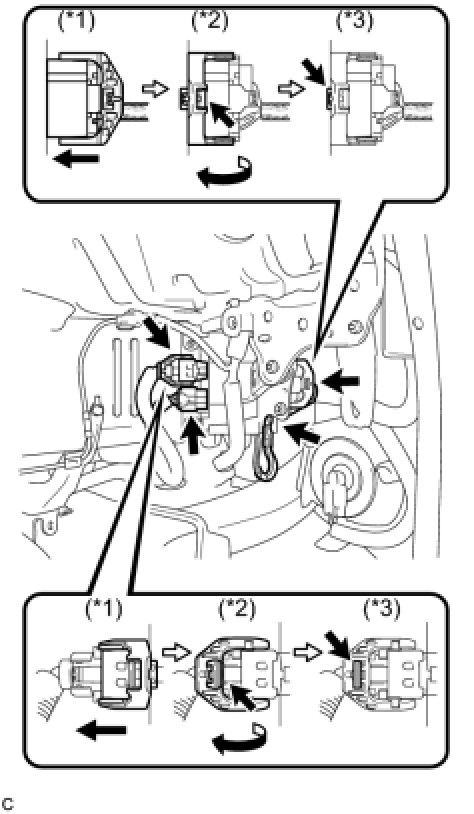

(b) Using the procedures below, connect the ECU connectors.
(1) Connect the ECU connector. (*1)
(2) Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
(3) Lock the lever's lock. (*3)
(c) Install the ground wire to the ECU with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(d) Connect the wire harness clamp to the bracket.

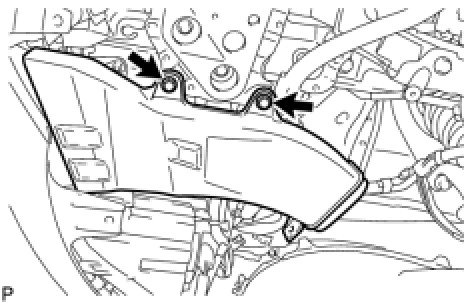

2. INSTALL NO. 2 COOL AIR INTAKE DUCT






(a) Install the intake duct with the 2 bolts.
3. INSTALL FRONT FENDER LINER RH
4. INSTALL FRONT FENDER WHEEL OPENING MOULDING RH
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
