Suspension Control Module: Diagrams

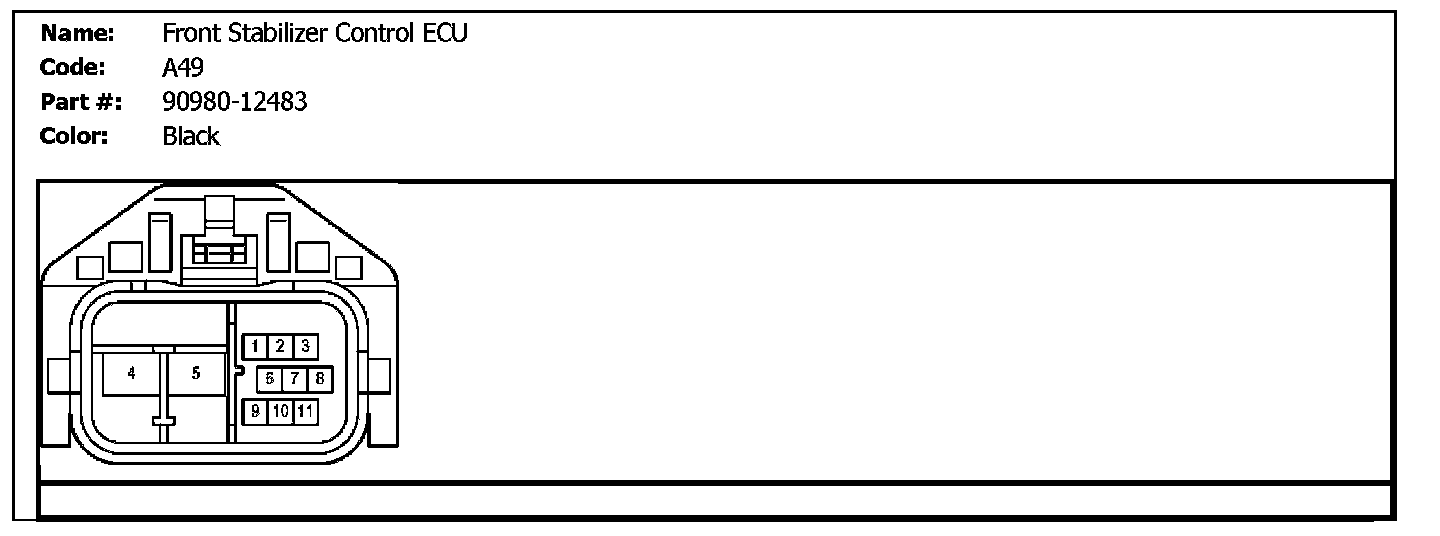

A49 (Front Stabilizer Control ECU):

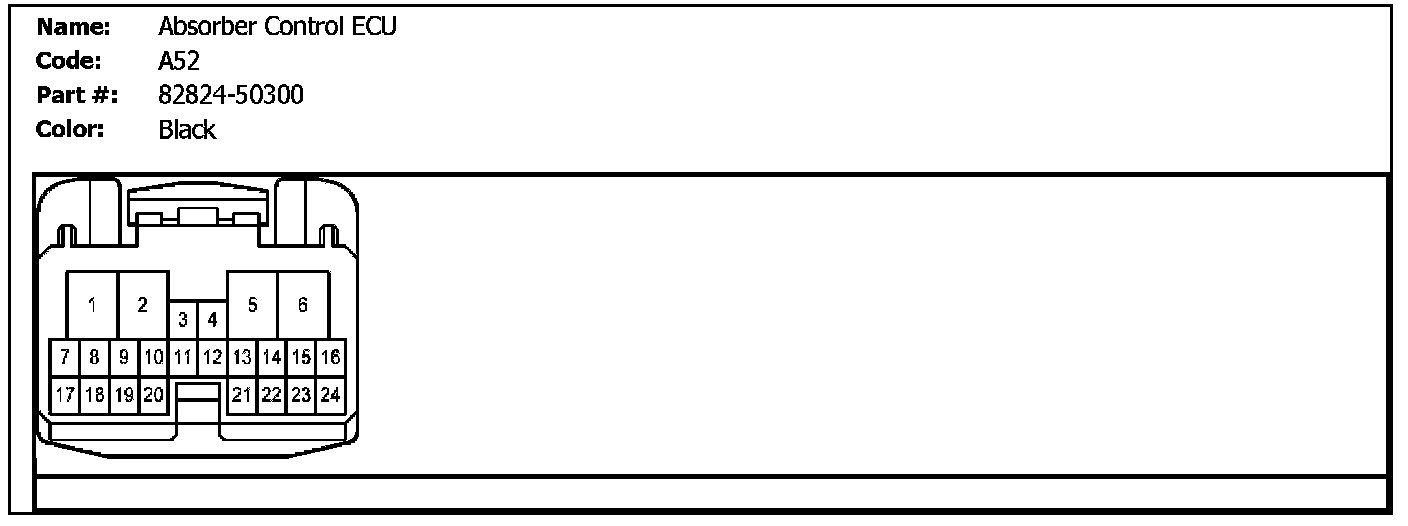

A52 (Absorber Control ECU):

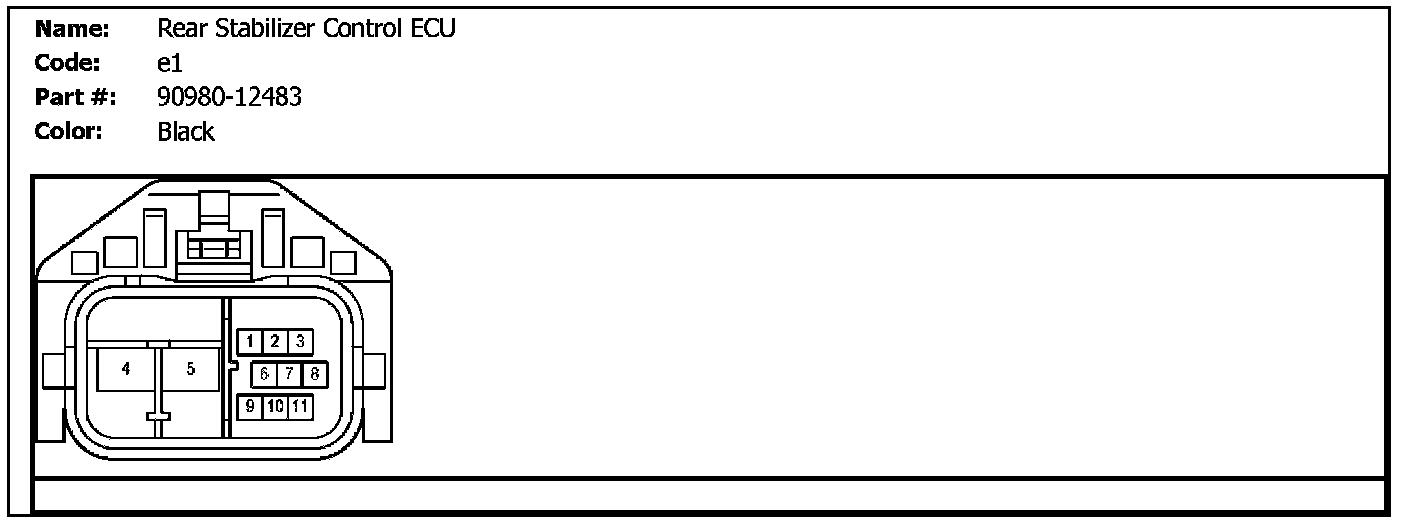

e1 (Rear Stabilizer Control ECU):

z10 (Rear Stabilizer Control ECU, Rear Stabilizer Control Actuator Assembly):

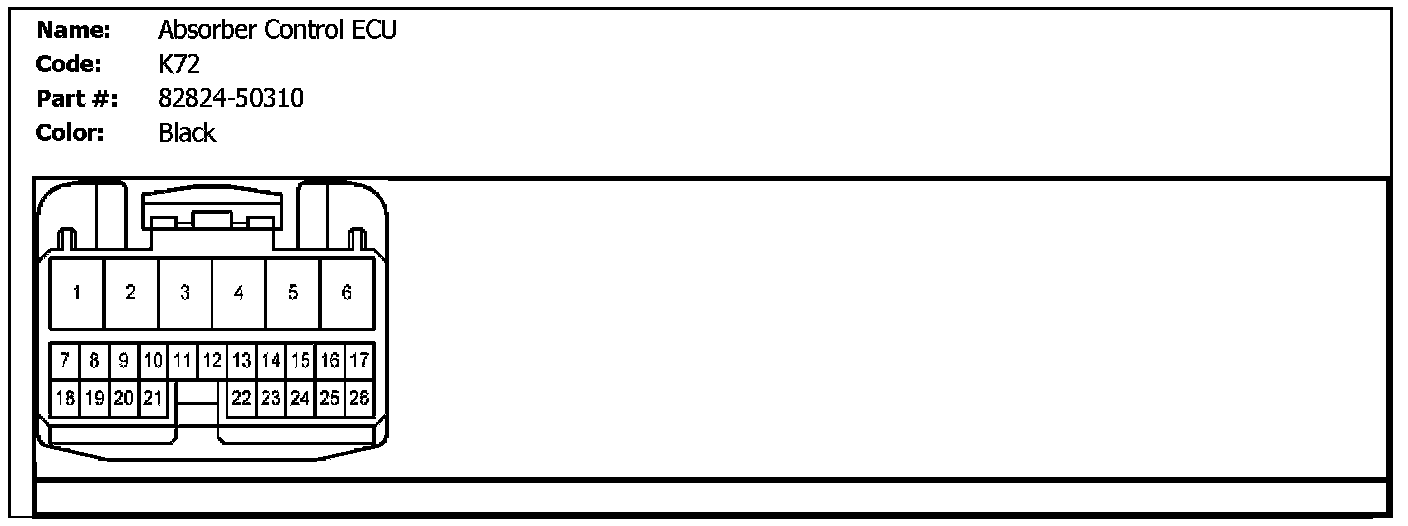

K72 (Absorber Control ECU):

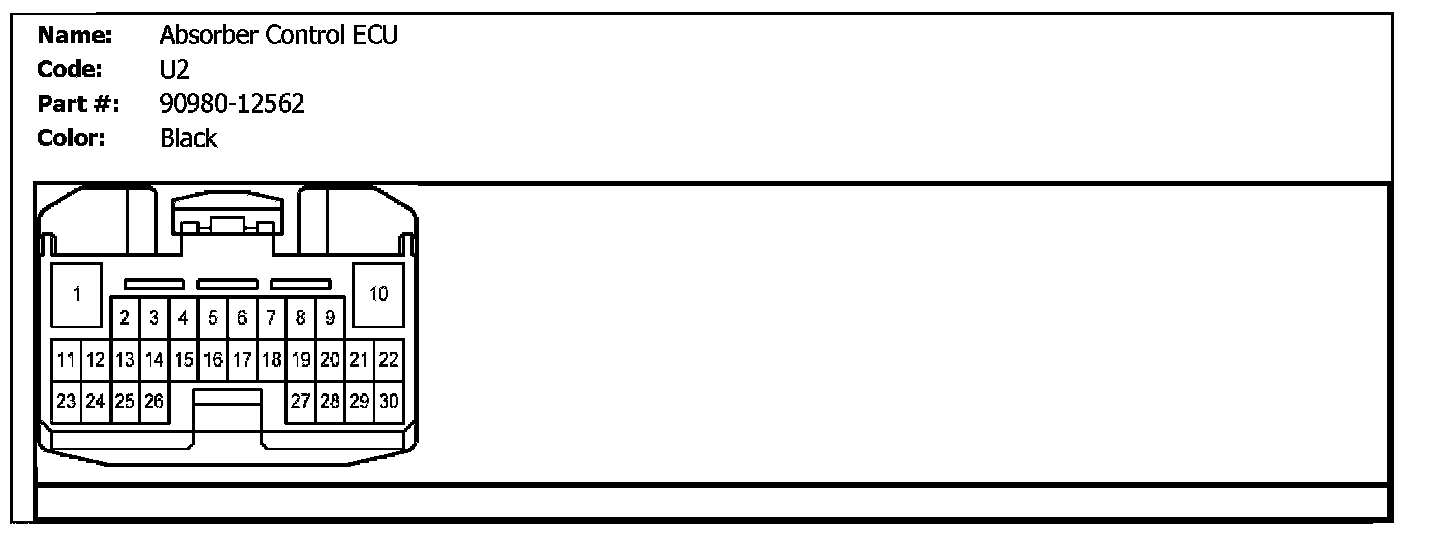

U2 (Absorber Control ECU):

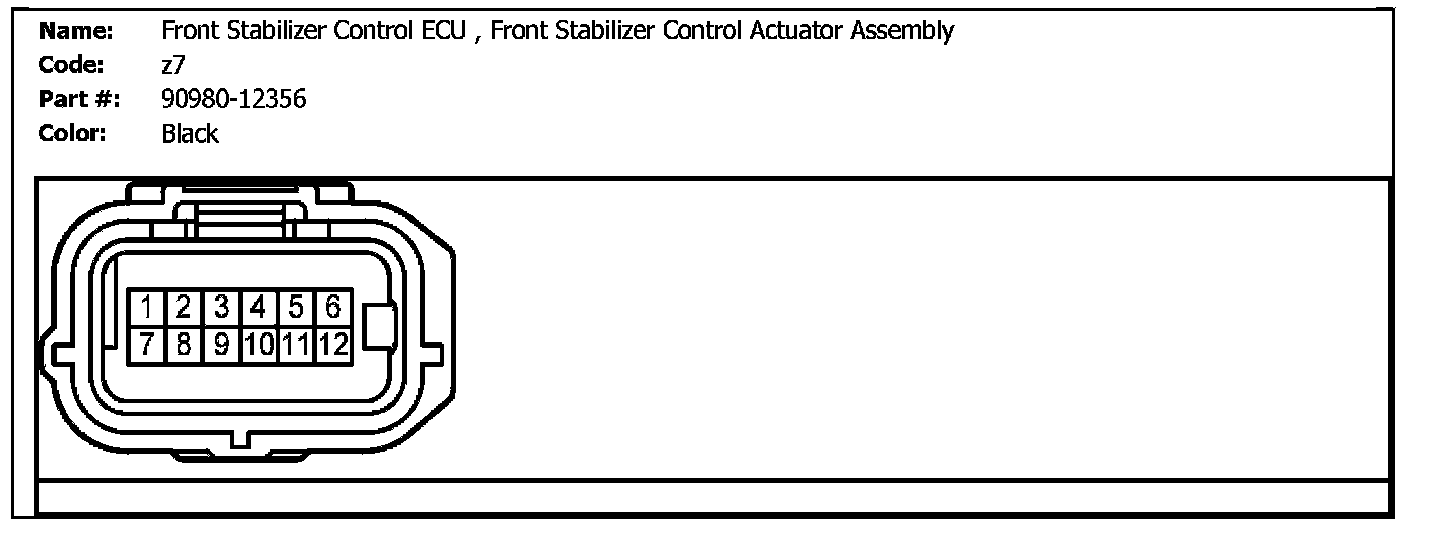

z7 (Front Stabilizer Control ECU, Front Stabilizer Control Actuator Assembly):

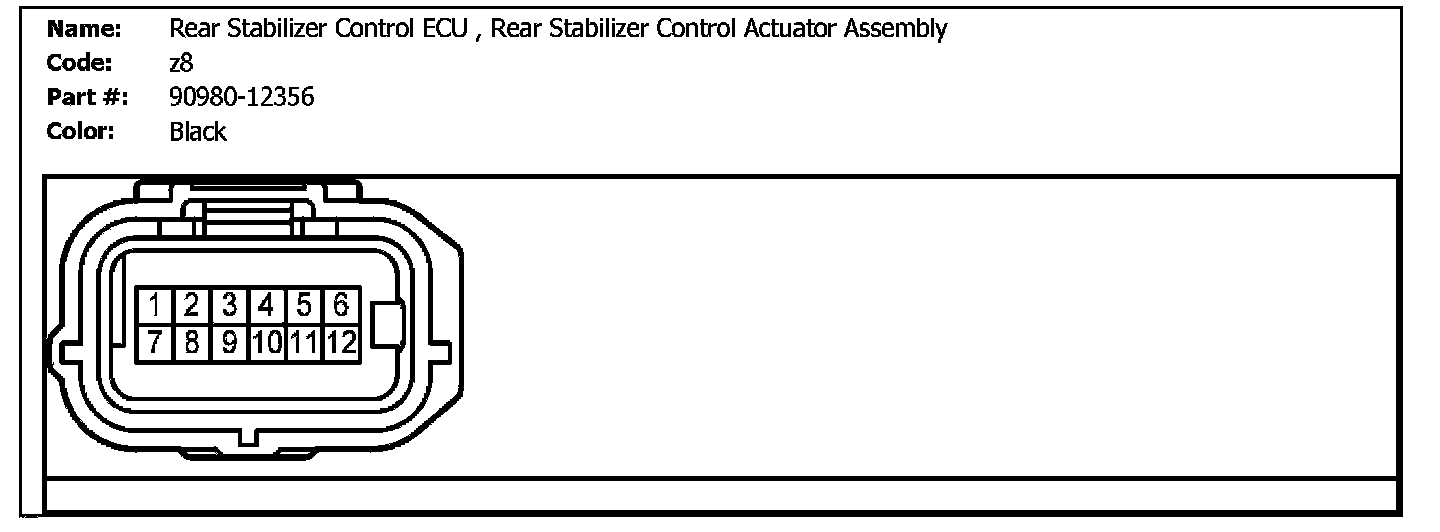

z8 (Rear Stabilizer Control ECU, Rear Stabilizer Control Actuator Assembly):

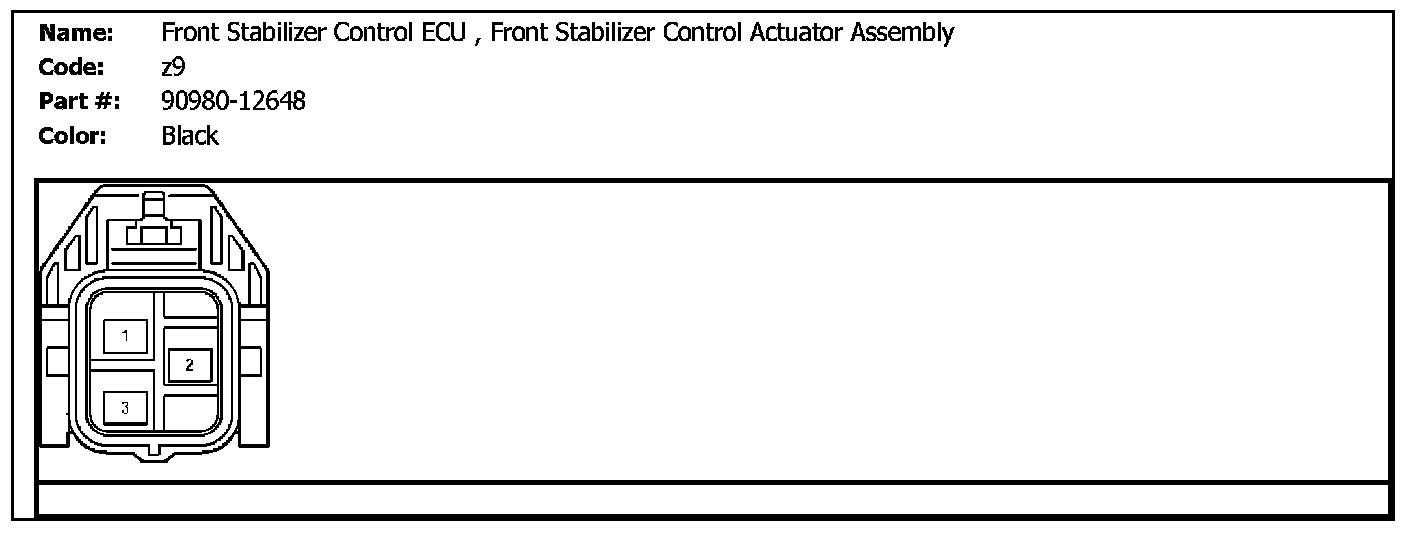

z9 (Front Stabilizer Control ECU, Front Stabilizer Control Actuator Assembly):
