Removal

STEERING COLUMN: STEERING CONTROL ECU: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Customize Parameters.

2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2 Removal

3. REMOVE STEERING CONTROL ECU






(a) Disconnect the 3 connectors form the steering control ECU.

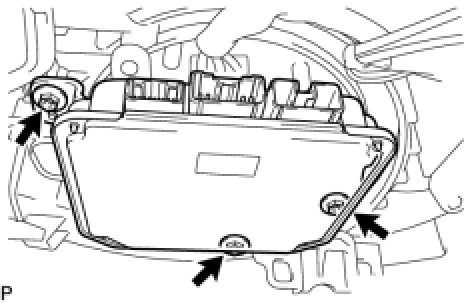

(b) Remove the 3 screws and the steering control ECU.
