Headlight Relay Inspection

LIGHTING: HEADLIGHT RELAY: INSPECTION

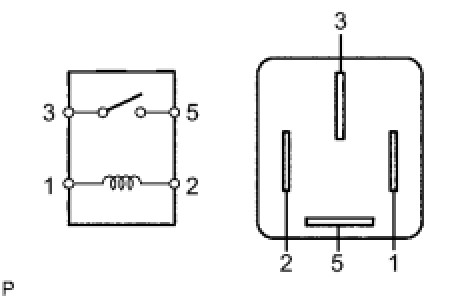

1. INSPECT HEADLIGHT RELAY (Marking: HEAD LP)
(a) Measure the resistance of the relay.

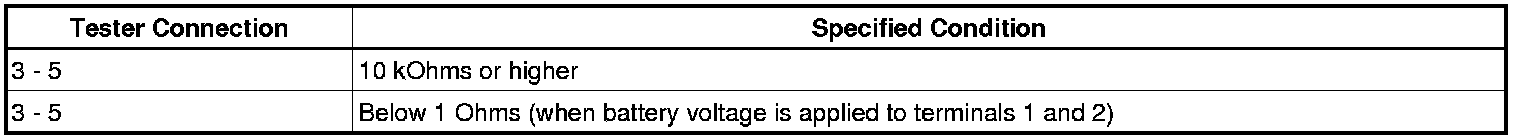

Standard resistance:





If the result is not as specified, replace the relay.
