Control Module HVAC: Locations









AIR CONDITIONING: AIR CONDITIONING SYSTEM: PARTS LOCATION

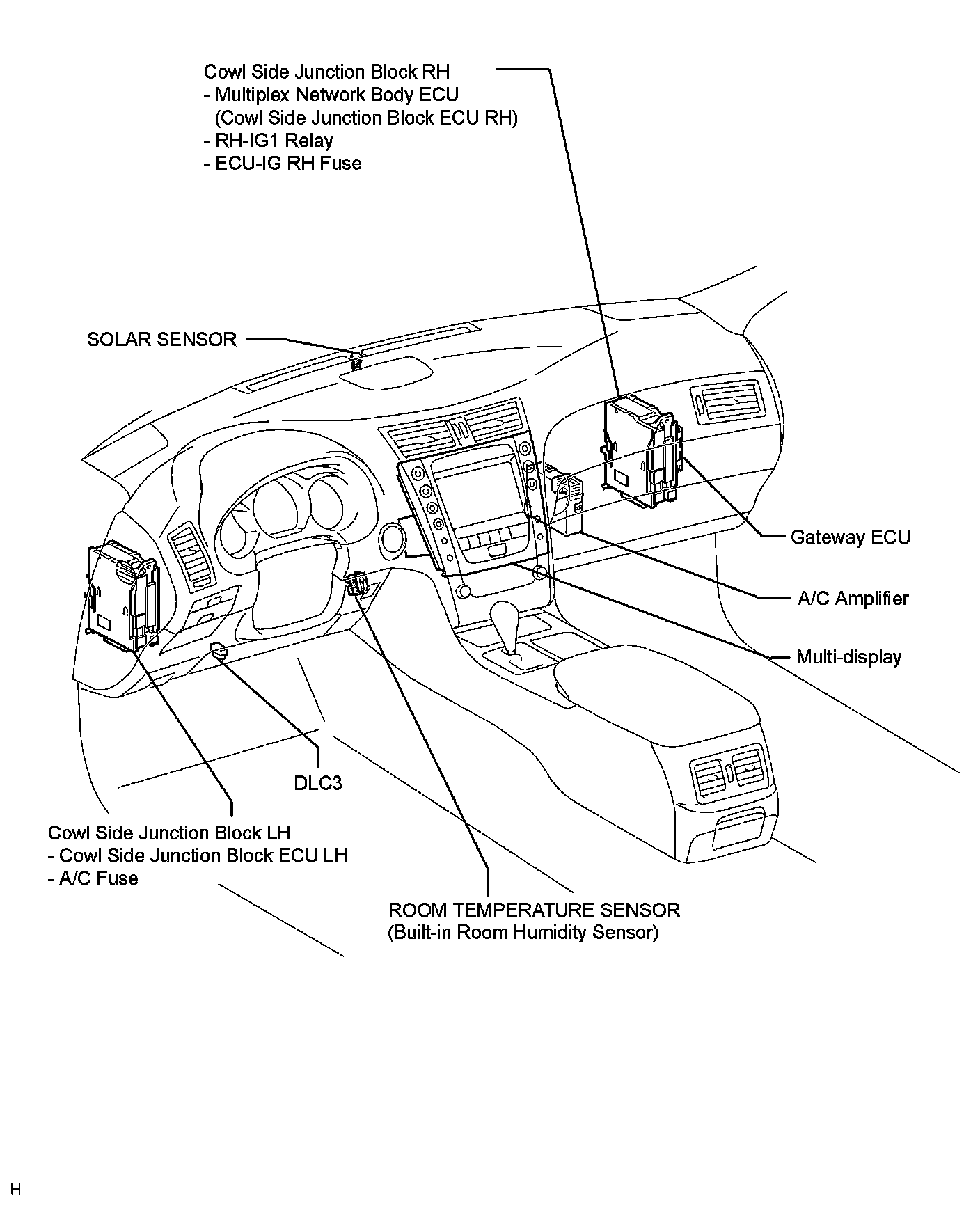

ILLUSTRATION

Air Conditioning: Parts Location:
