BRAKE CONTROL: SKID CONTROL ECU (for 2GR-FSE): INSTALLATION

BRAKE CONTROL: SKID CONTROL ECU

1. INSTALL SKID CONTROL ECU

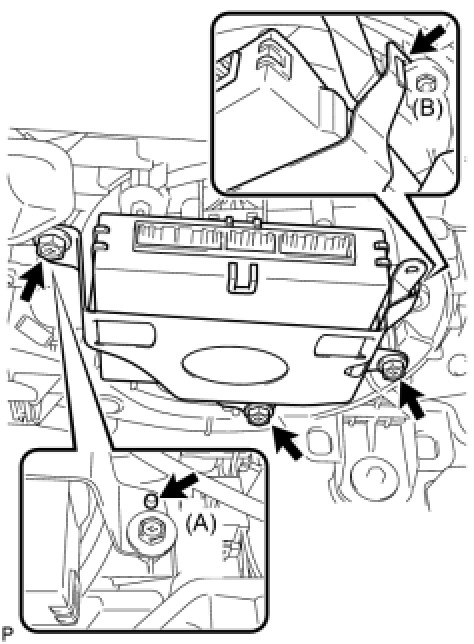

(a) Install the skid control ECU with the 3 screws.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
HINT:
- Align positioning boss (A) of the blower assembly with the hole of the skid control ECU.
- Securely engage hook (B) of the skid control ECU with the blower assembly.

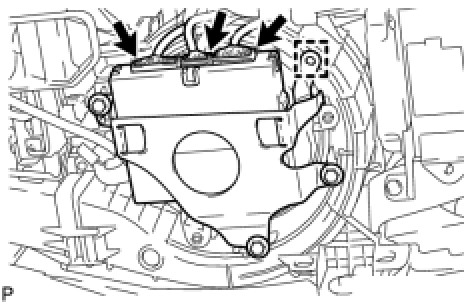

(b) Connect the 3 connectors to the skid control ECU.
(c) Install the wire harness clamp to the skid control ECU bracket.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. CHECK FOR VSC WARNING
Test Mode Procedure
