BRAKE CONTROL: ABS MOTOR RELAY (for 2GR-FSE): ON-VEHICLE INSPECTION

BRAKE CONTROL: ABS MOTOR RELAY

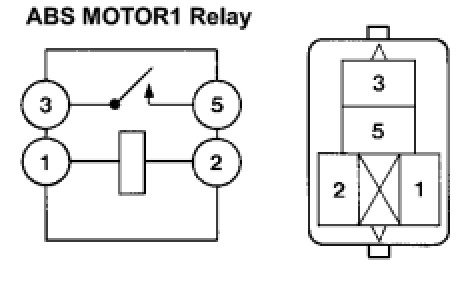

1. INSPECT ABS MOTOR1 RELAY






(a) Remove the ABS MOTOR1 relay.
(b) Measure the resistance according to the value(s) in the table below.
Resistance:

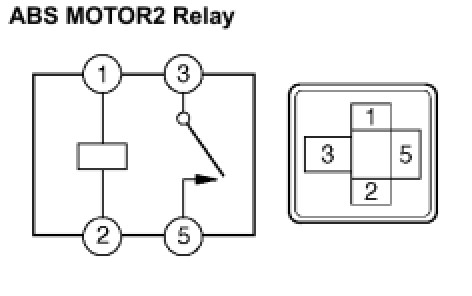

2. INSPECT ABS MOTOR2 RELAY






(a) Remove the ABS MOTOR2 relay.

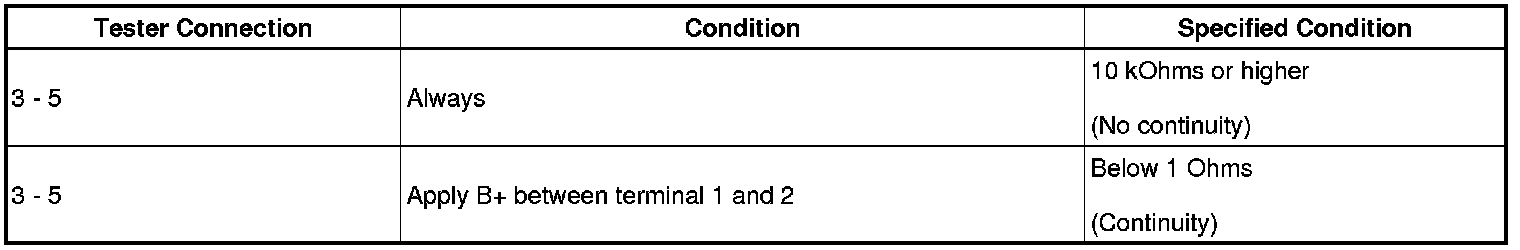

(b) Measure the resistance according to the value(s) in the table below.
Resistance:
