ABS Main Relay: Testing and Inspection

BRAKE CONTROL: ABS SOLENOID RELAY (for 2GR-FSE): ON-VEHICLE INSPECTION

BRAKE CONTROL: ABS SOLENOID RELAY

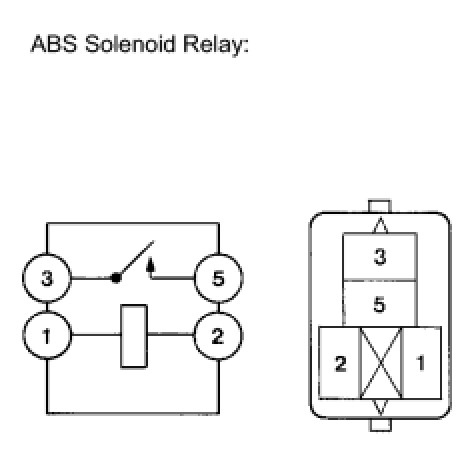

1. INSPECT ABS SOLENOID RELAY
(a) Remove the ABS solenoid relay.

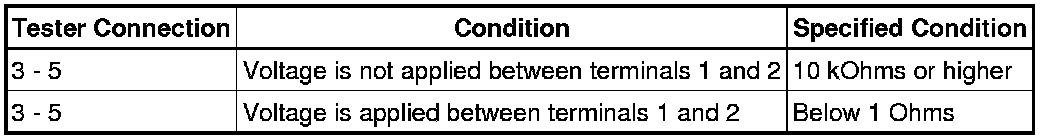

(b) Measure the resistance according to the value(s) in the table below.
Resistance:
