Reassembly

CELLULAR COMMUNICATION: MAYDAY ECU: REASSEMBLY

HINT:
A bolt without a torque specification is shown in the standard bolt chart.

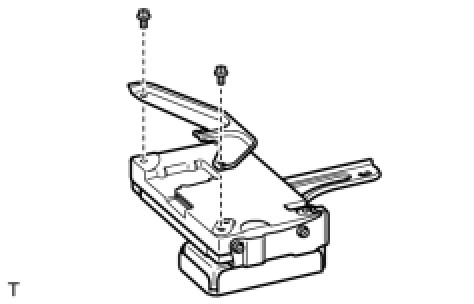

1. INSTALL MAYDAY BATTERY
(a) Install the battery and No. 4 mobilephone bracket with the bolt.

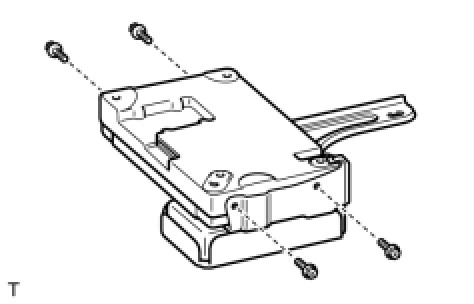

2. INSTALL MAYDAY ECU
(a) Install the ECU with the 4 bolts.

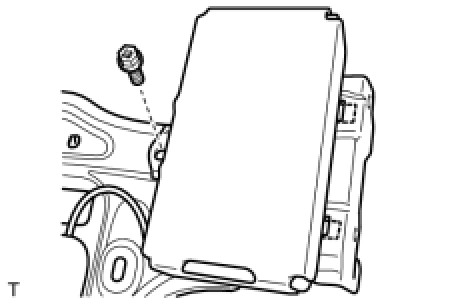

3. INSTALL NO. 2 MOBILEPHONE BRACKET
(a) Install the bracket with the 2 bolts.
