Emergency Contact Module: Description and Operation

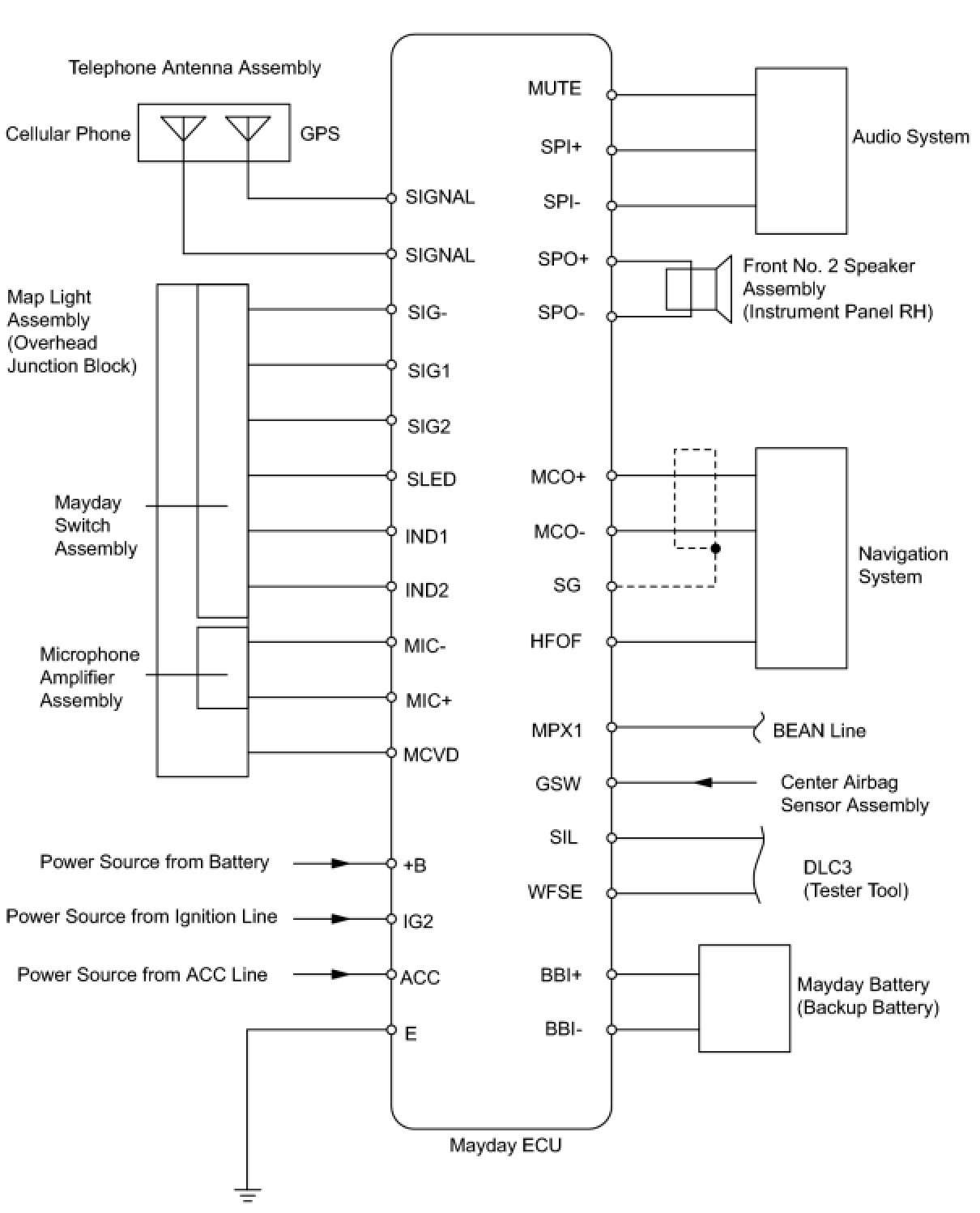

CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: SYSTEM DIAGRAM

CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: SYSTEM DESCRIPTION

1. DESCRIPTION
(a) Description
LEXUS Link is a consumer-based wireless voice and data service for automotive applications, more broadly known as telematics. LEXUS Link is a combination of an on-board dedicated cellular phone, GPS (Global Positioning System), software, hardware, and a remote support call center. The LEXUS Link system is designed to work anywhere in the continental U.S., Hawaii, and Canada where GPS and cellular services are available.

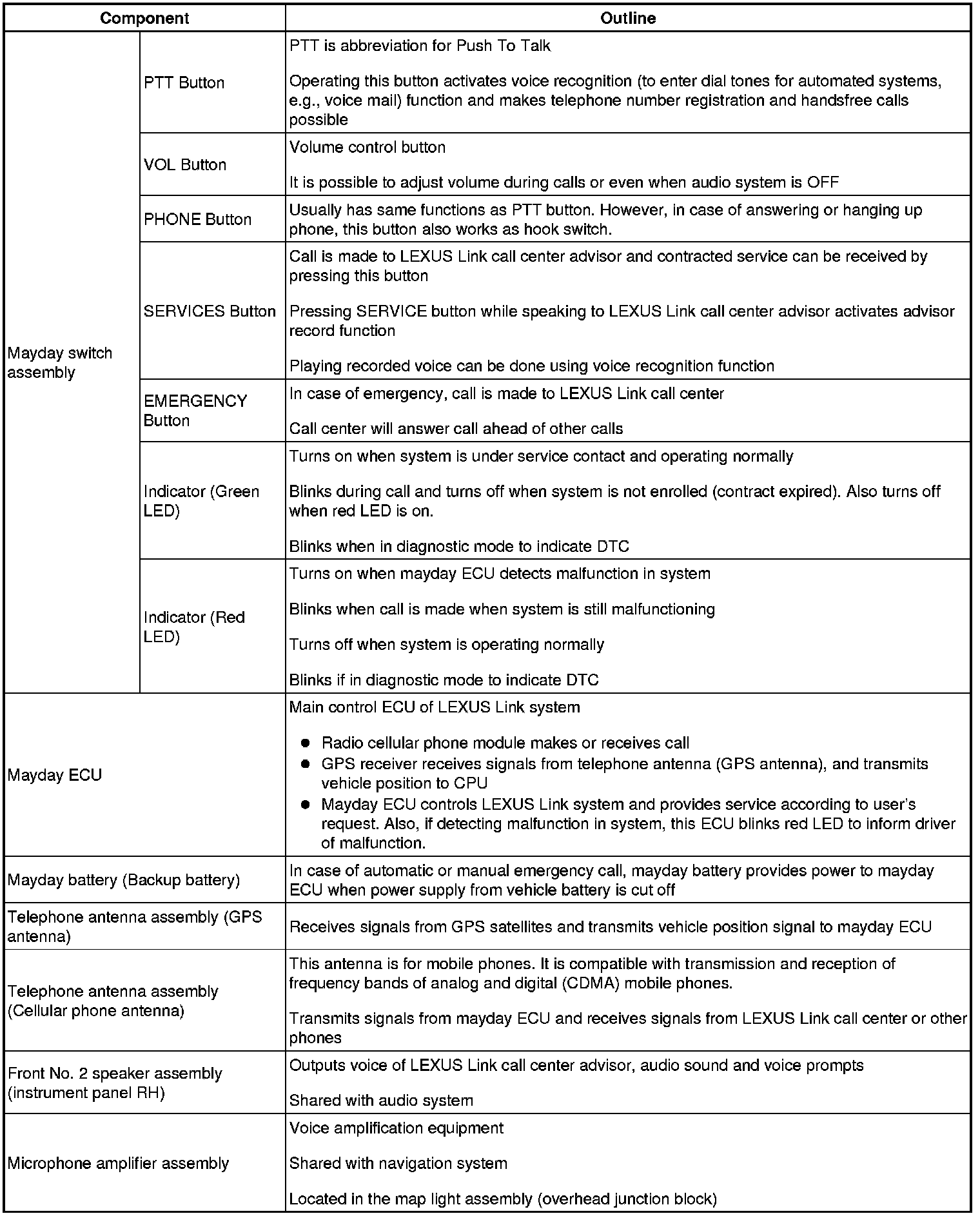

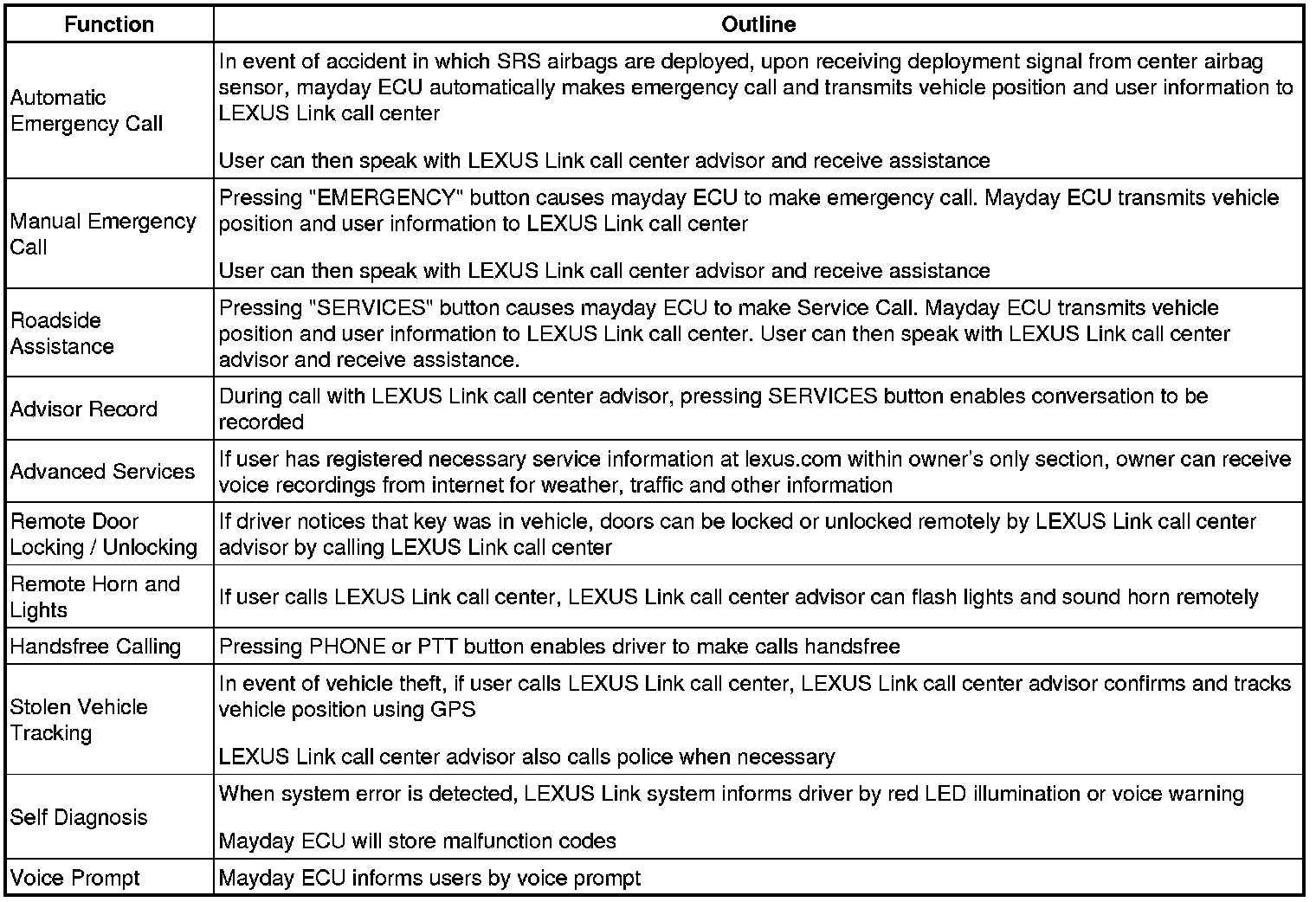

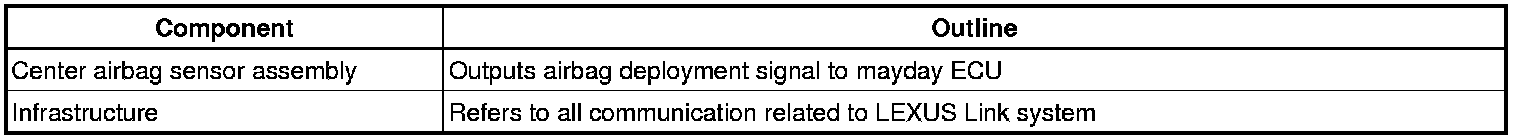

(b) System function

(d) System operation

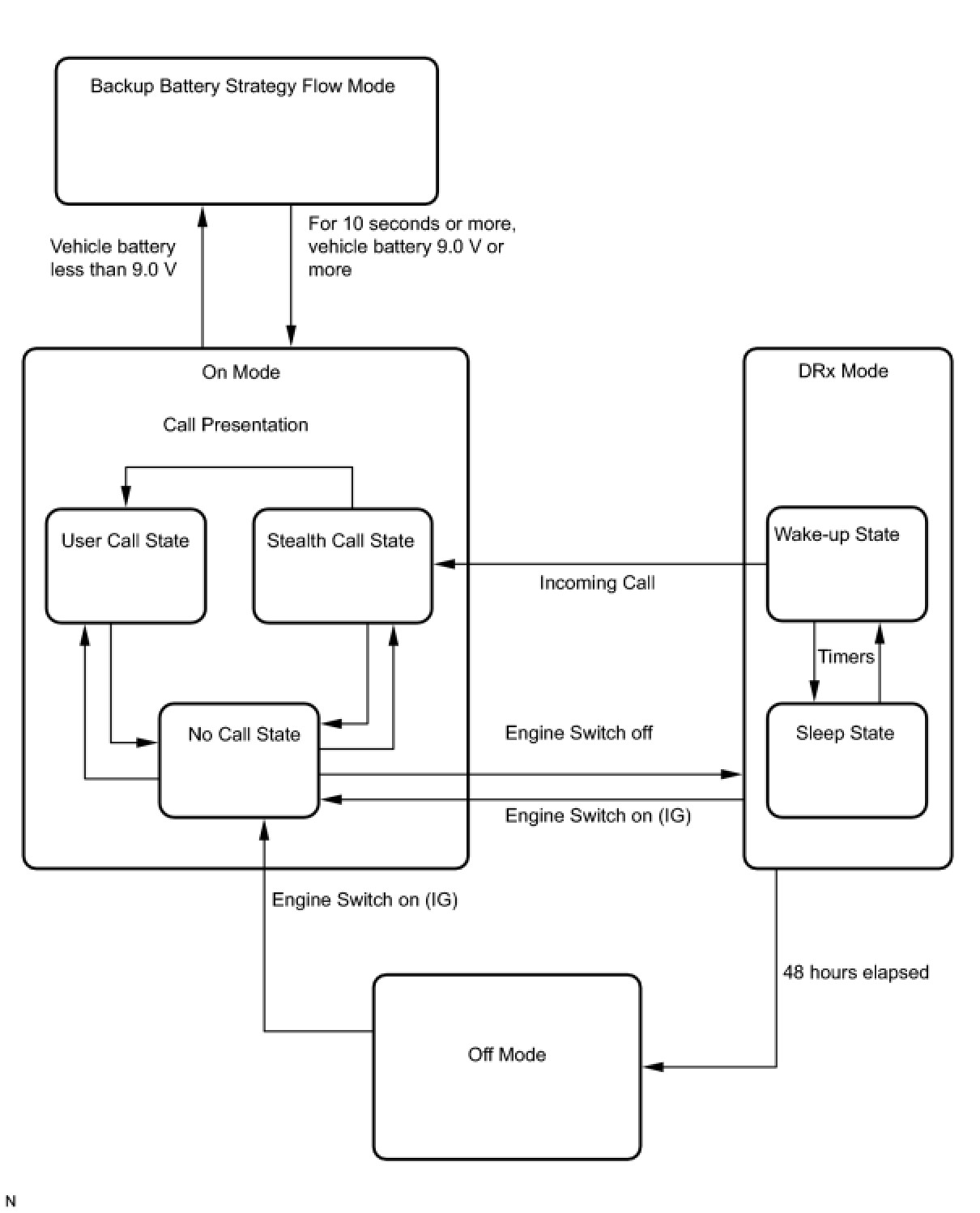

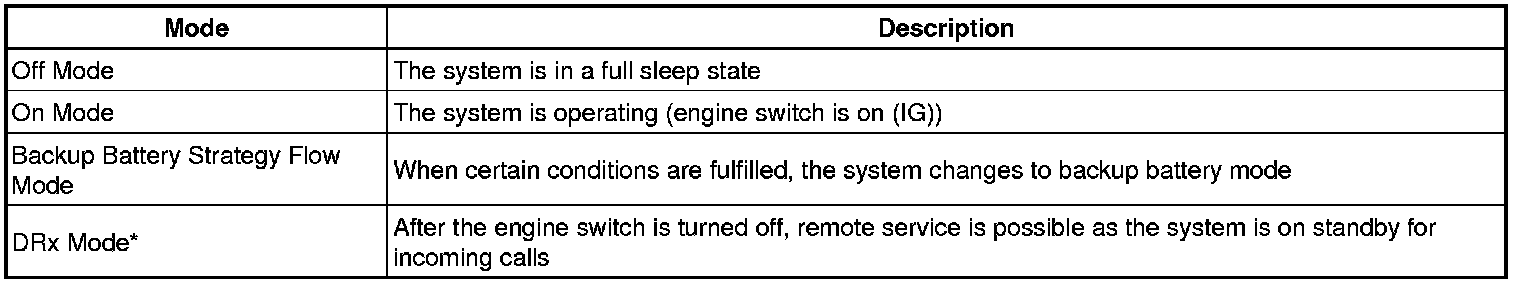

(1) Operation mode

HINT:
*: This mode turns to Off mode after 48 hours have elapsed.

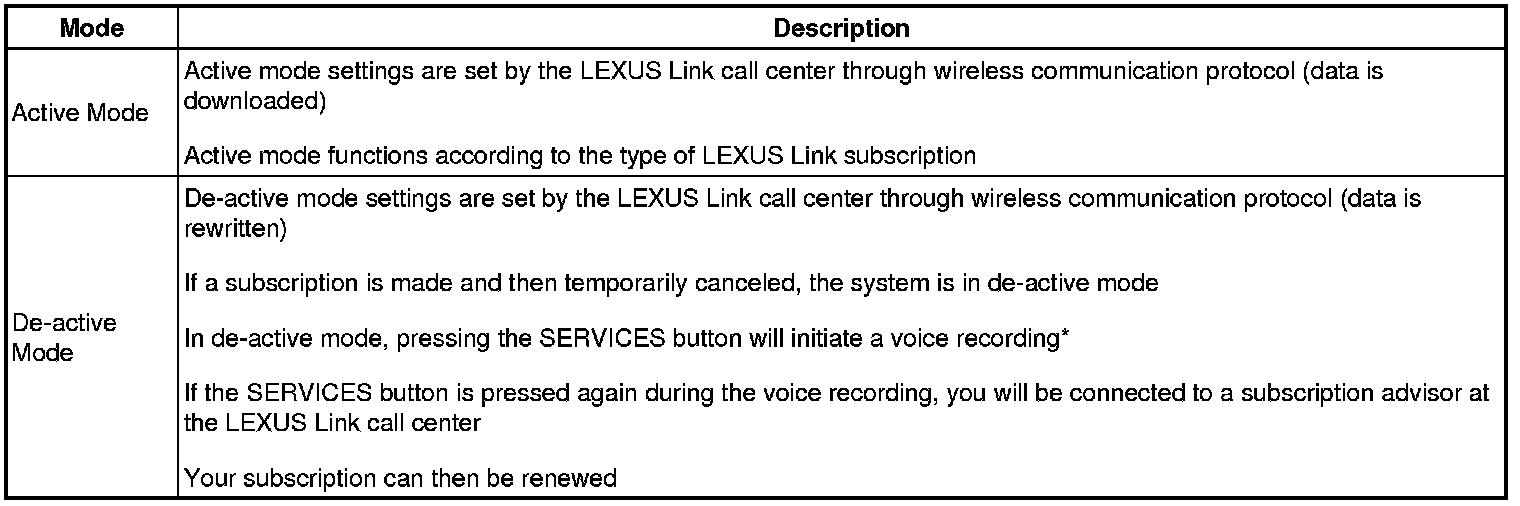

(2) Subscription mode

HINT:
*: Demo message is "Hello and welcome to LEXUS Link. For LEXUS Link services, contact a LEXUS Link advisor by pressing the SERVICES button again. For additional information, visit us online at Lexus.com in the owner section or talk to your LEXUS dealer."

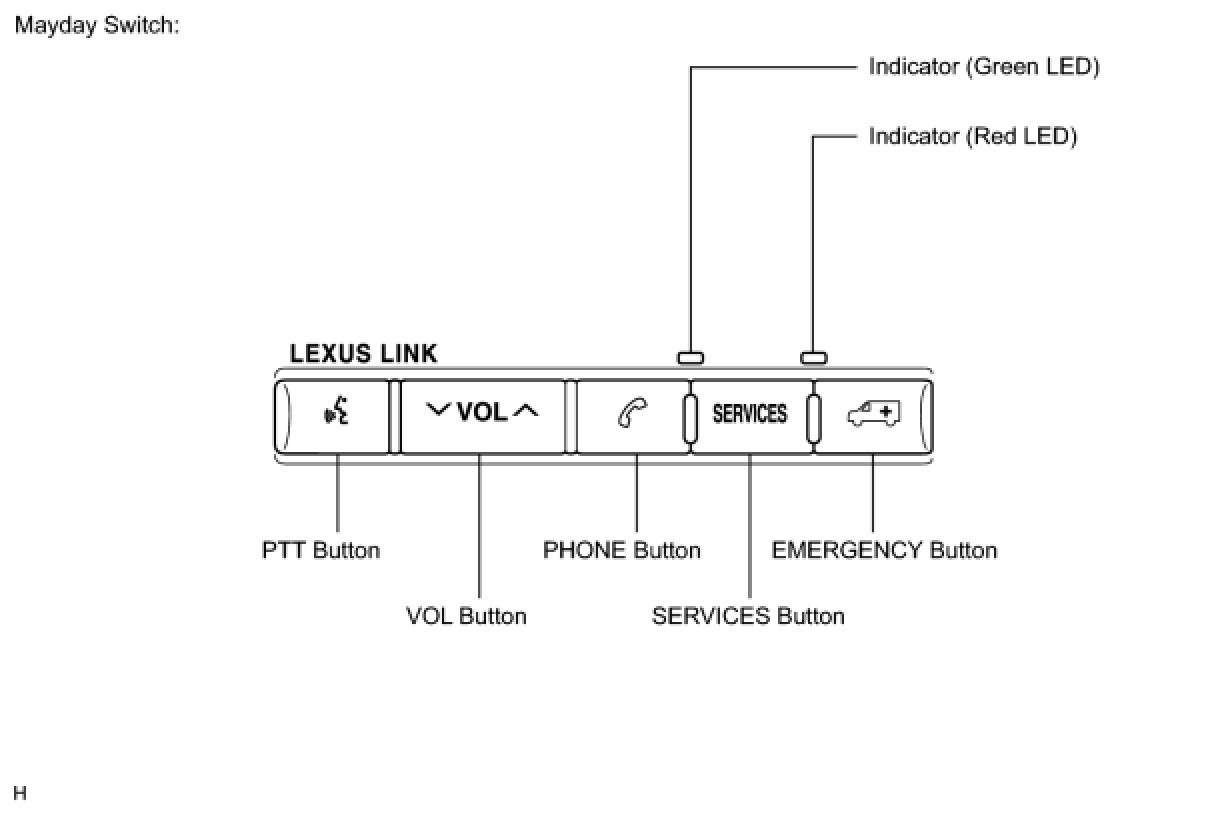

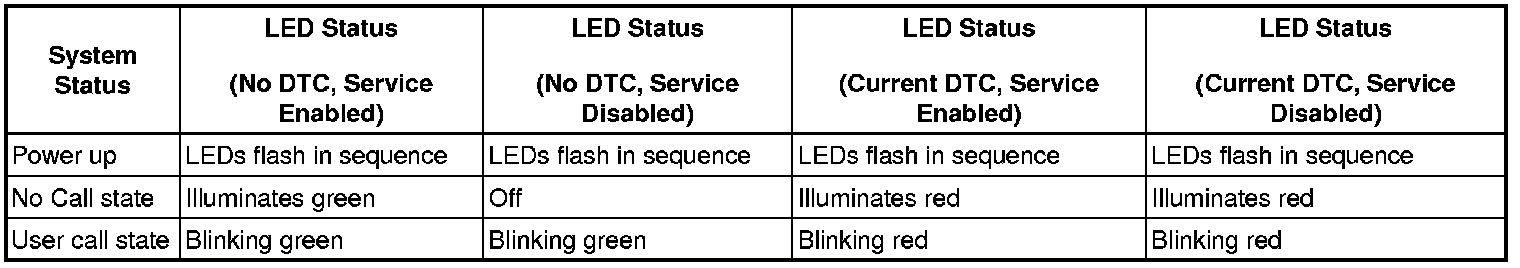

(e) LED indicator functions
