Components

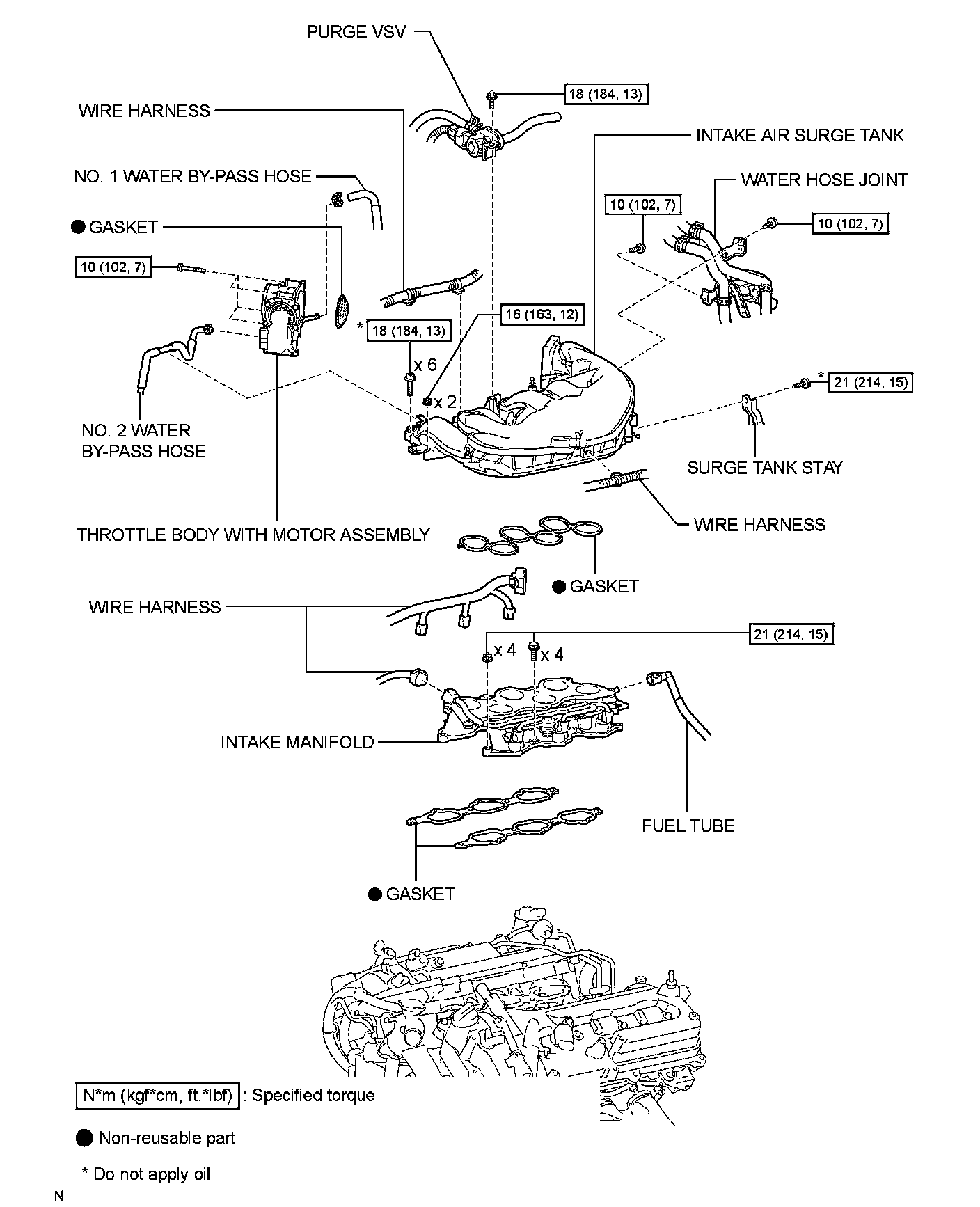

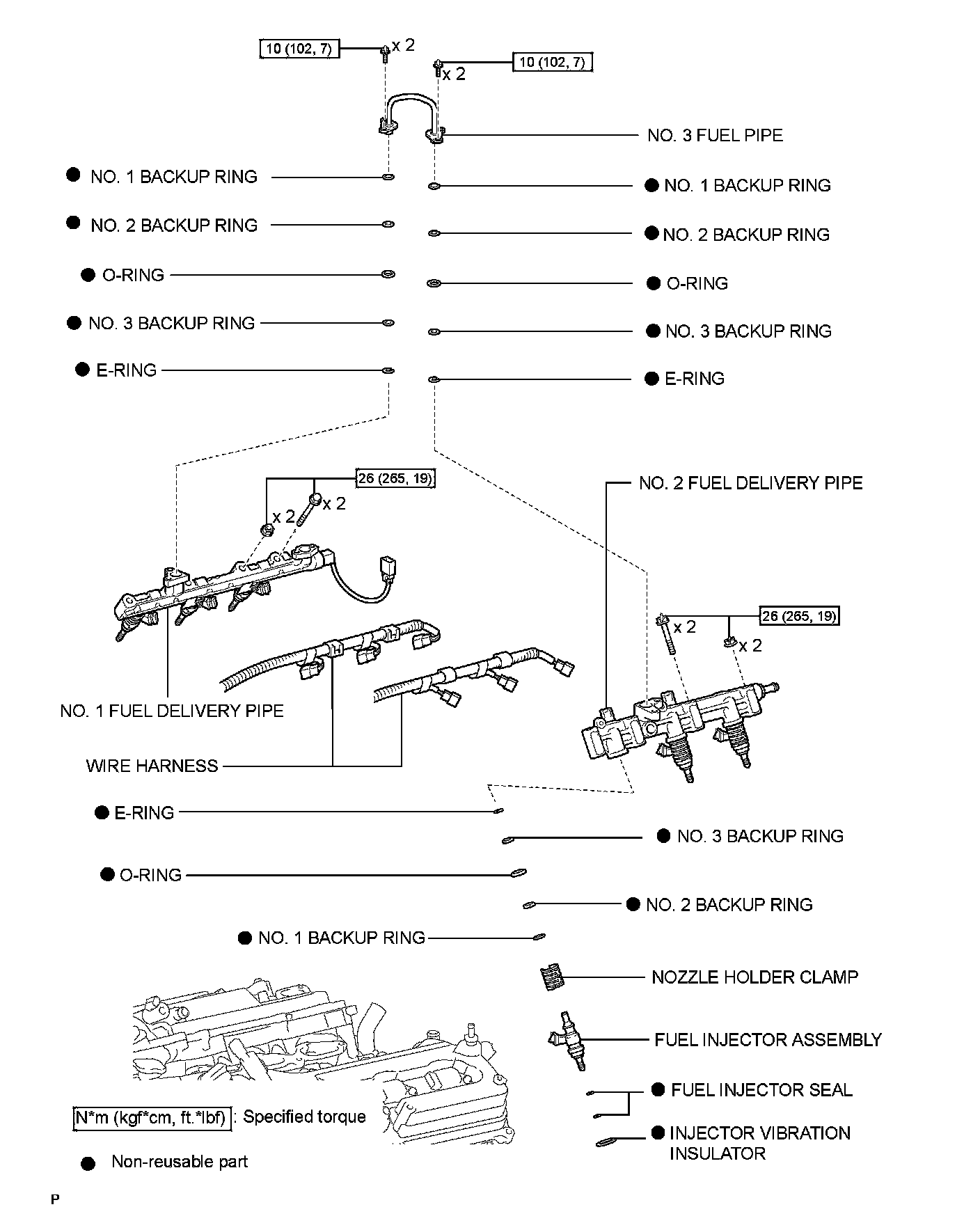

2GR-FSE FUEL: FUEL INJECTOR (for Direct Injection): COMPONENTS

2GR-FSE FUEL: FUEL INJECTOR

ILLUSTRATION
