Initial Inspection and Diagnostic Overview

TIRE AND WHEEL: TIRE AND WHEEL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

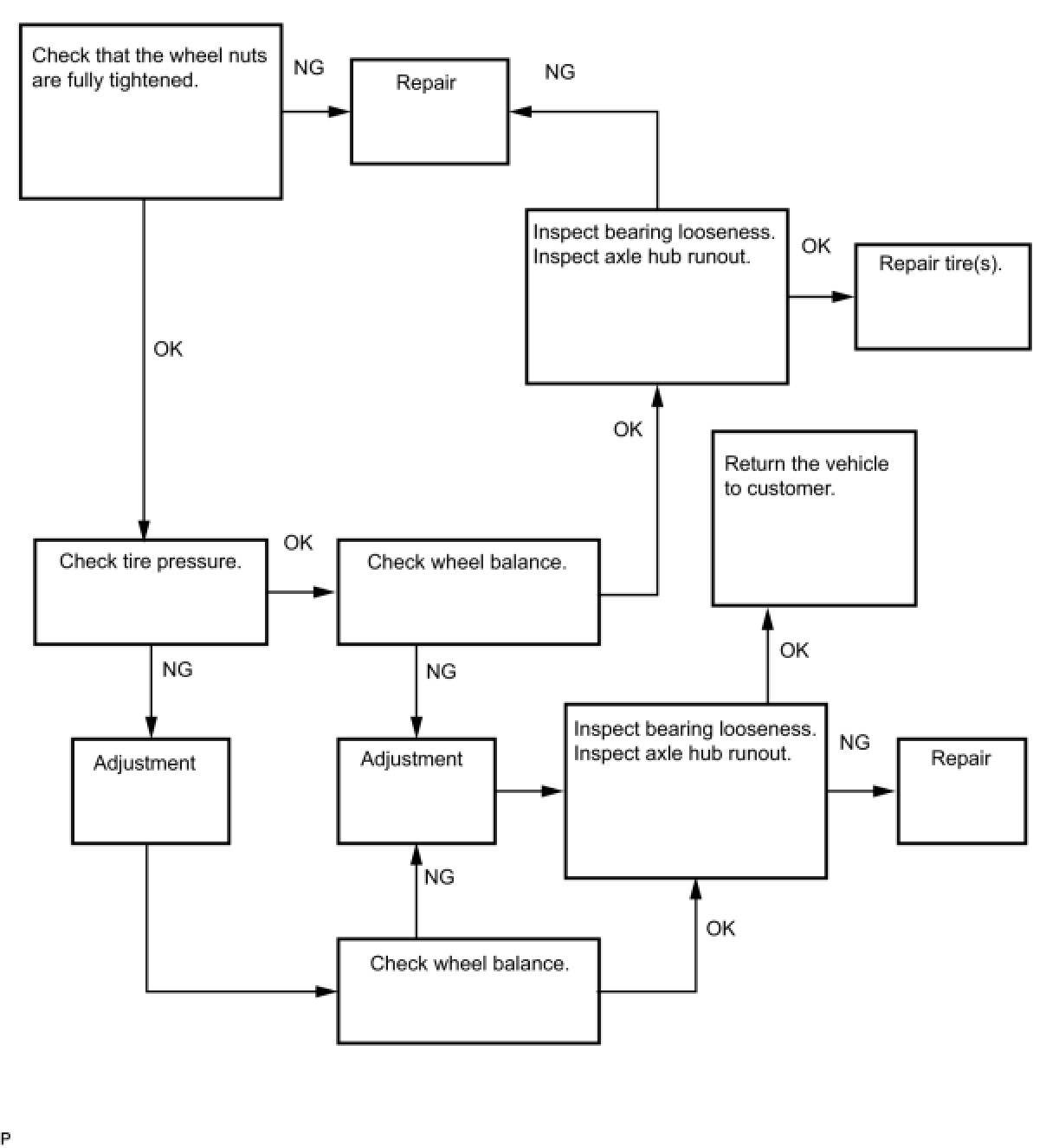

1. DIAGNOSIS OF TIRE VIBRATION
(a) Inspection procedure

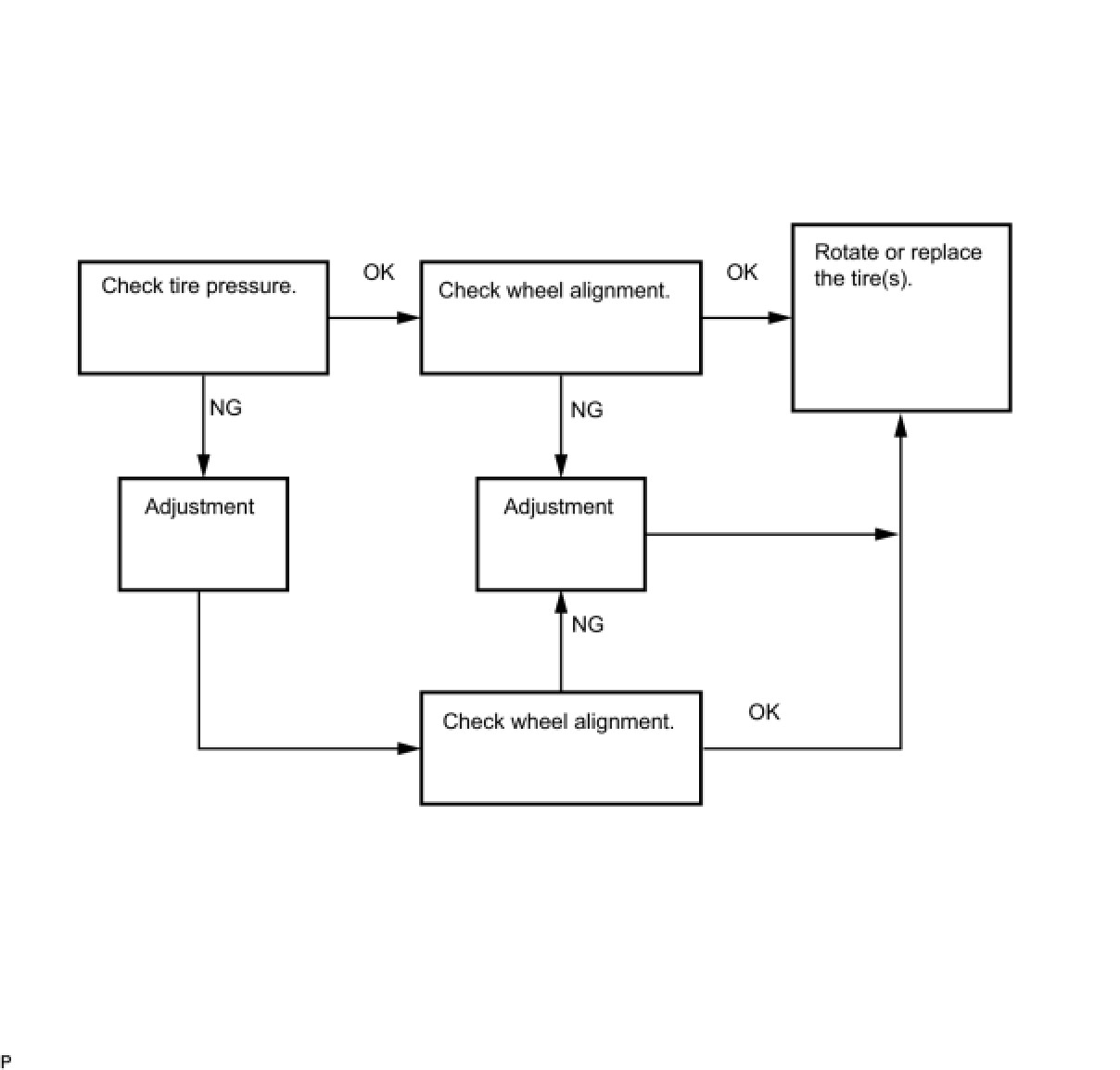

2. DIAGNOSIS OF IRREGULAR TIRE WEAR
(a) Inspection procedure
