How To Proceed With Troubleshooting

LIGHTING: LIGHTING SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
- Use these procedures to troubleshoot the lighting system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM CHECK
NEXT -- Continue to next step.
3. INSPECT BATTERY VOLTAGE
Standard:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.
4. INSPECT COMMUNICATION FUNCTION LARGE-SCALE MULTIPLEX COMMUNICATION SYSTEM (BEAN)*
(a) Use the Techstream to check if the Multiplex Communication System (MPX) is functioning normally.
Result:






B -- Go to step 8
A -- Continue to next step.
5. CHECK FOR DTC*
Result:






B -- Go to step 8
A -- Continue to next step.

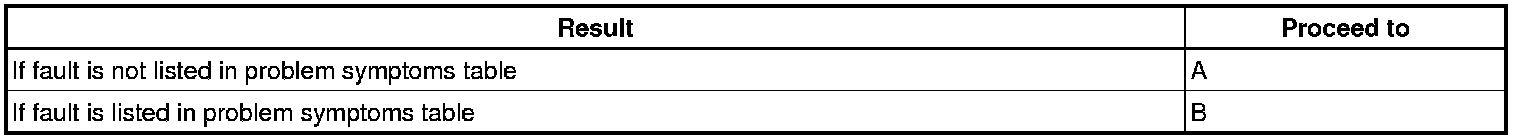

6. PROBLEM SYMPTOMS TABLE
Result:






B -- Go to step 8
A -- Continue to next step.
7. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Data List / Active Test Scan Tool Testing and Procedures

(b) Terminals of ECU Pinout Values and Diagnostic Parameters

(c) Inspection
NEXT -- Continue to next step.
8. ADJUST, REPAIR OR REPLACE
NEXT -- Continue to next step.
9. CONFIRMATION TEST
NEXT -- END
