Headlamp Dimmer Switch: Testing and Inspection

LIGHTING: HEADLIGHT DIMMER SWITCH: INSPECTION

1. INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY






(a) Disconnect the switch.

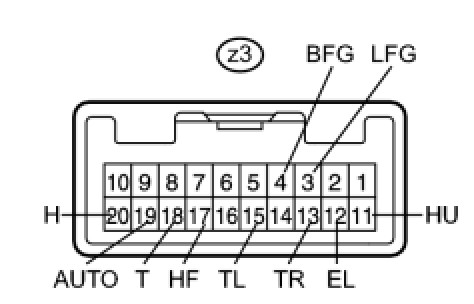

(b) Measure the resistance of the switch.
Standard resistance:

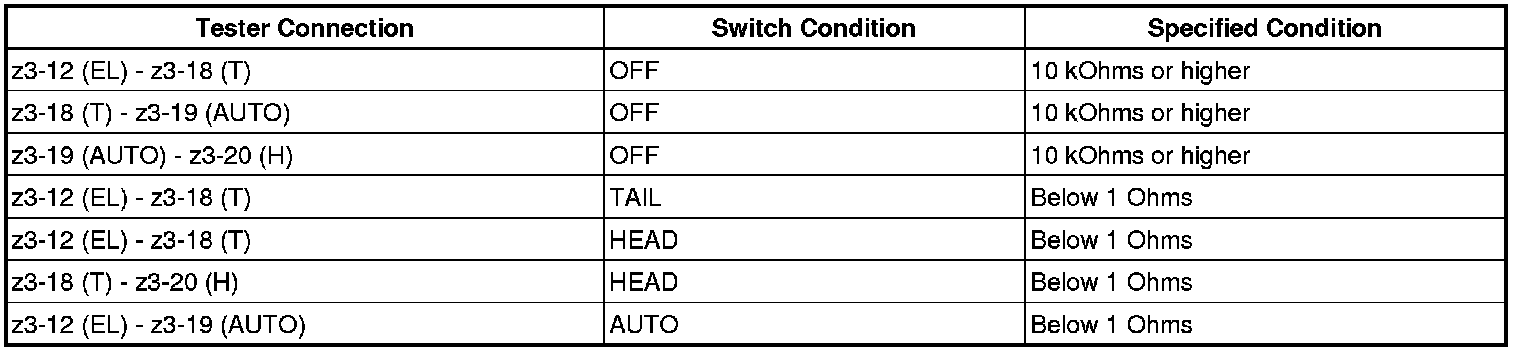

Light control switch

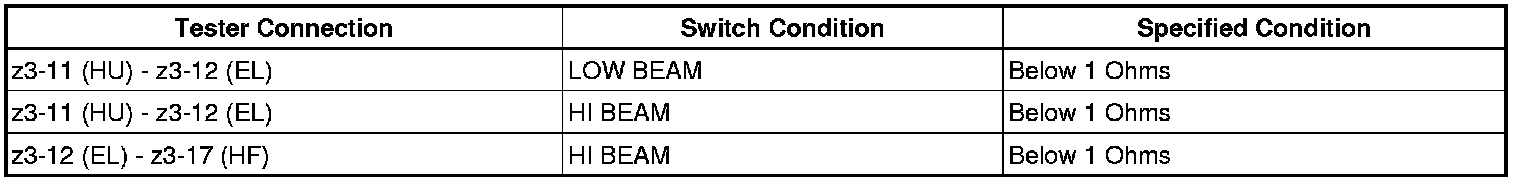

Headlight dimmer switch:

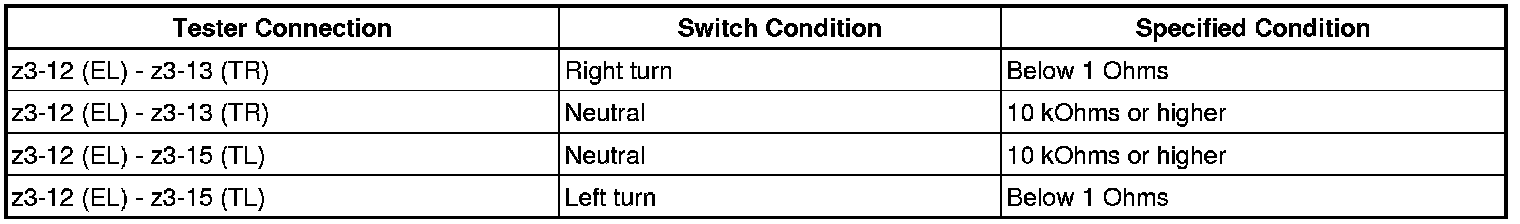

Turn signal switch:

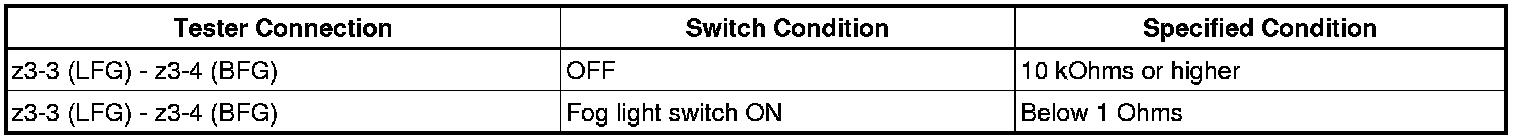

Fog light switch:





If the result is not as specified, replace the switch assembly.
