Fail-Safe Chart
METER: METER / GAUGE SYSTEM: FAIL-SAFE CHART
WATER TEMPERATURE GAUGE:

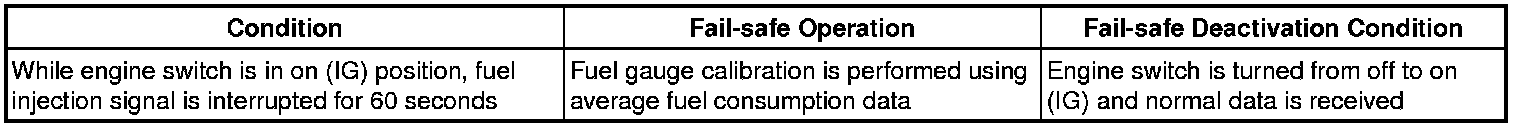

FUEL SIGNAL (FUEL INJECTION SIGNAL):

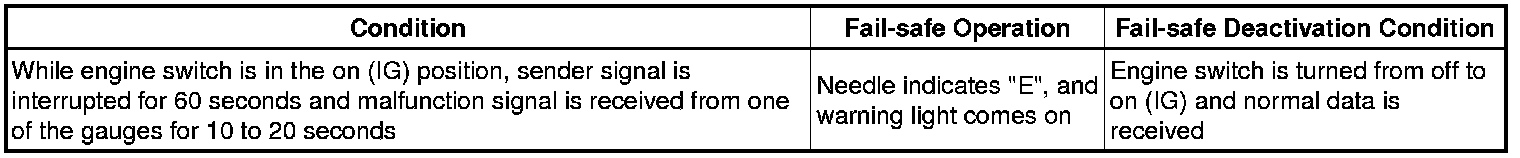

FUEL SIGNAL (GAUGE SIGNAL):

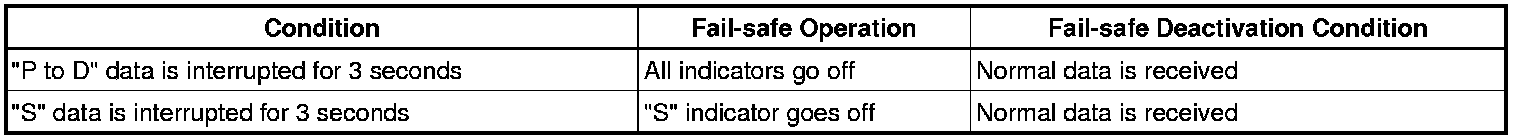

SHIFT INDICATOR:

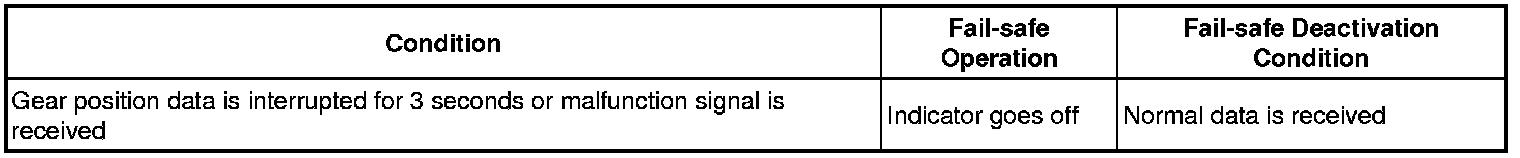

GEAR POSITION INDICATOR (1 TO 6):
ABS AND BRAKE:
DOOR:
TAIL:
BEAM:
TAIL OR HEAD:
FR FOG:

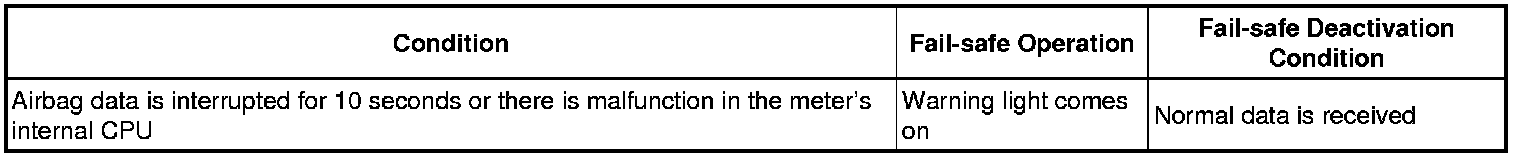

AIRBAG:

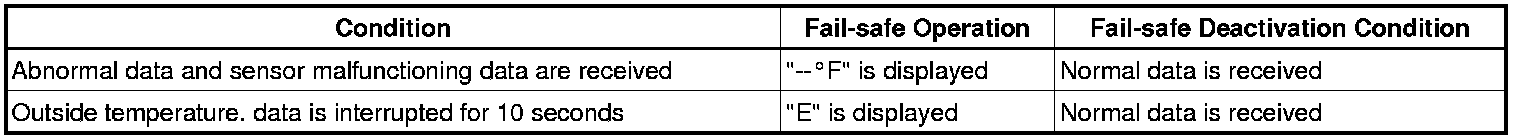

OUTSIDE TEMP:

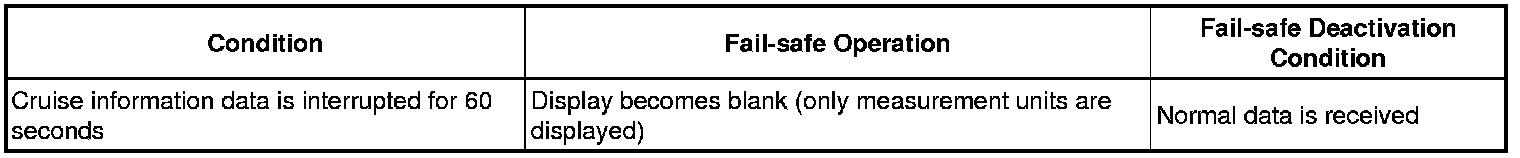

MULTI-INFORMATION:

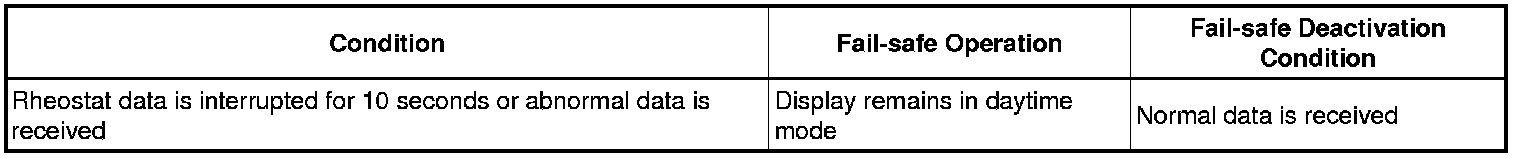

LIGHT CONTROL RHEOSTAT:
