Back-Up Power Source Circuit

AIR CONDITIONING: AIR CONDITIONING SYSTEM: Back-up Power Source Circuit

Back-up Power Source Circuit

DESCRIPTION

The back-up power source circuit for the A/C amplifier is shown below. Power is supplied even when turning the engine switch off and is used for diagnostic trouble code memory, etc.

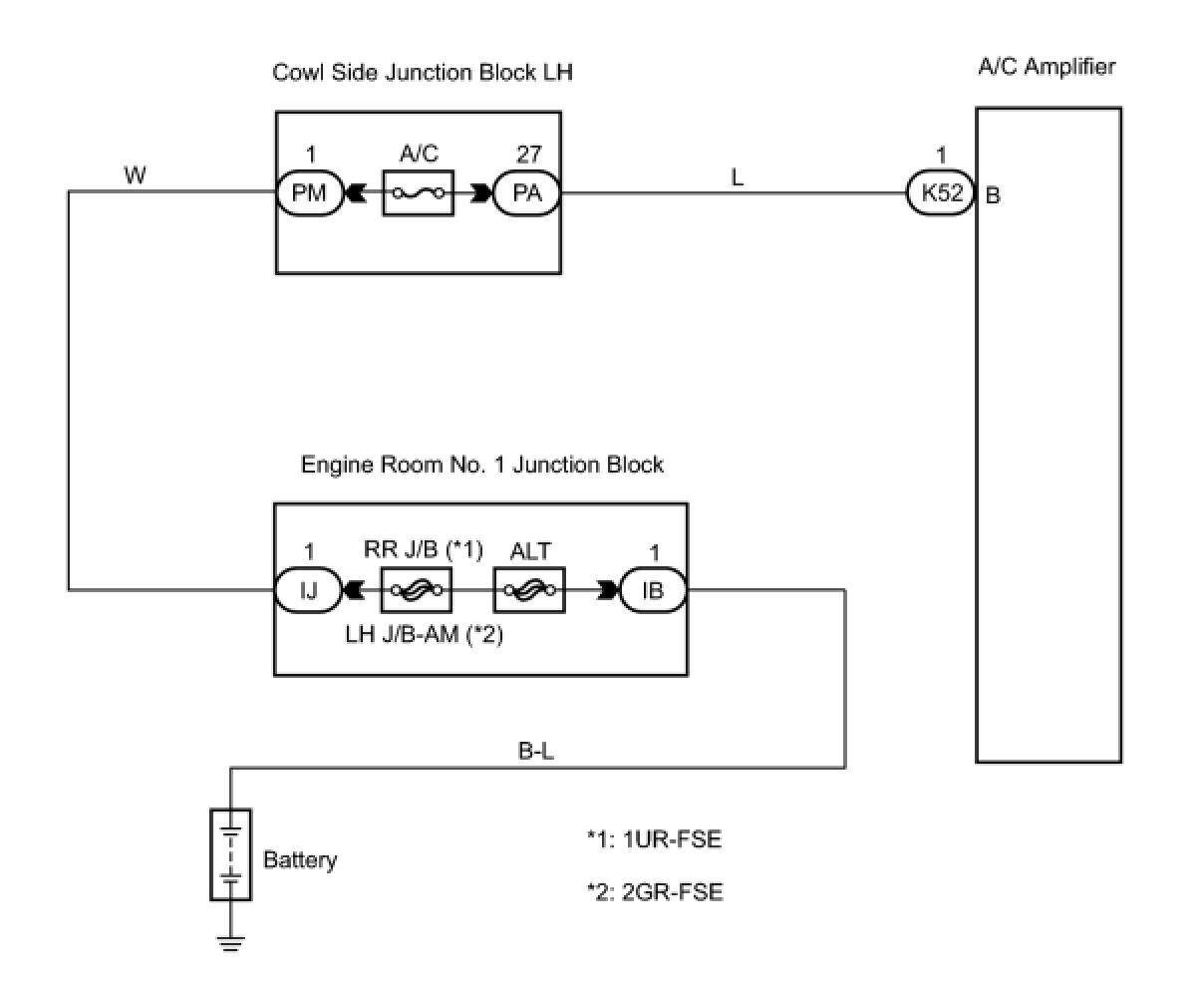

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (A/C)
(a) Remove the A/C fuse from the cowl side junction block LH.
(b) Measure the resistance of the fuse.
Standard resistance:






NG -- CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE
OK -- Continue to next step.
2. INSPECT AIR CONDITIONING AMPLIFIER (AIR CONDITIONING AMPLIFIER - BODY GROUND)

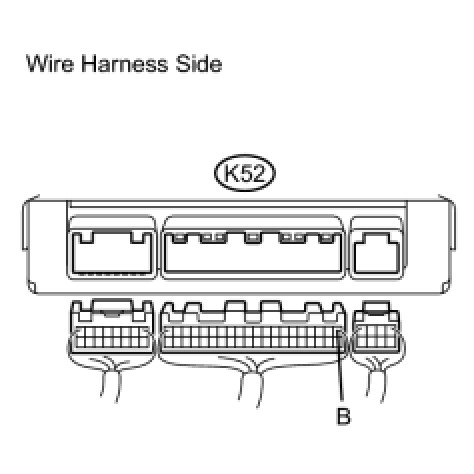

(a) Disconnect the K52 A/C amplifier connector.
(b) Measure the voltage of the wire harness side connector.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
