Components

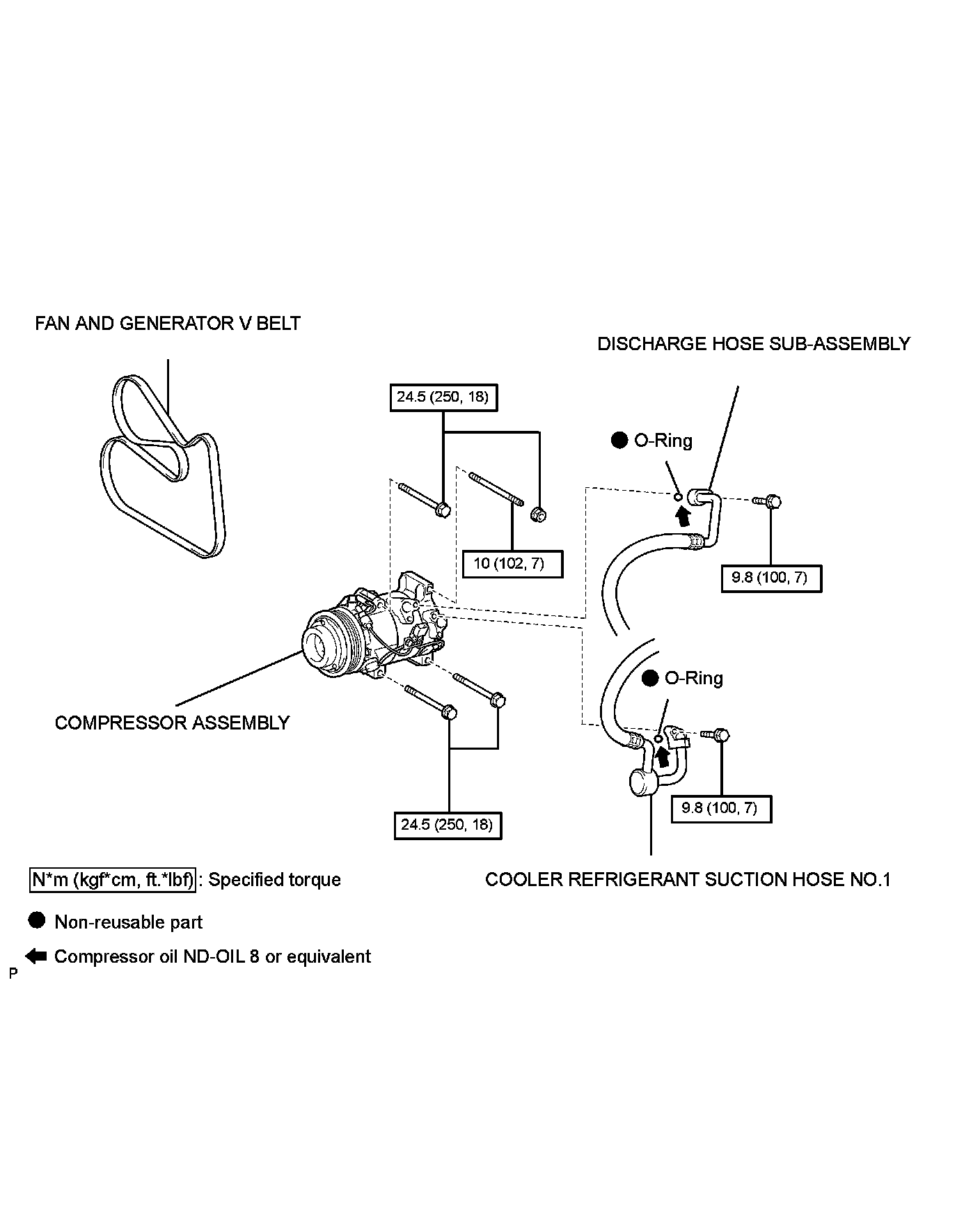

AIR CONDITIONING: COMPRESSOR AND PULLEY (for 2GR-FSE 2WD): COMPONENTS

AIR CONDITIONING: COMPRESSOR AND PULLEY

ILLUSTRATION
