System Diagram

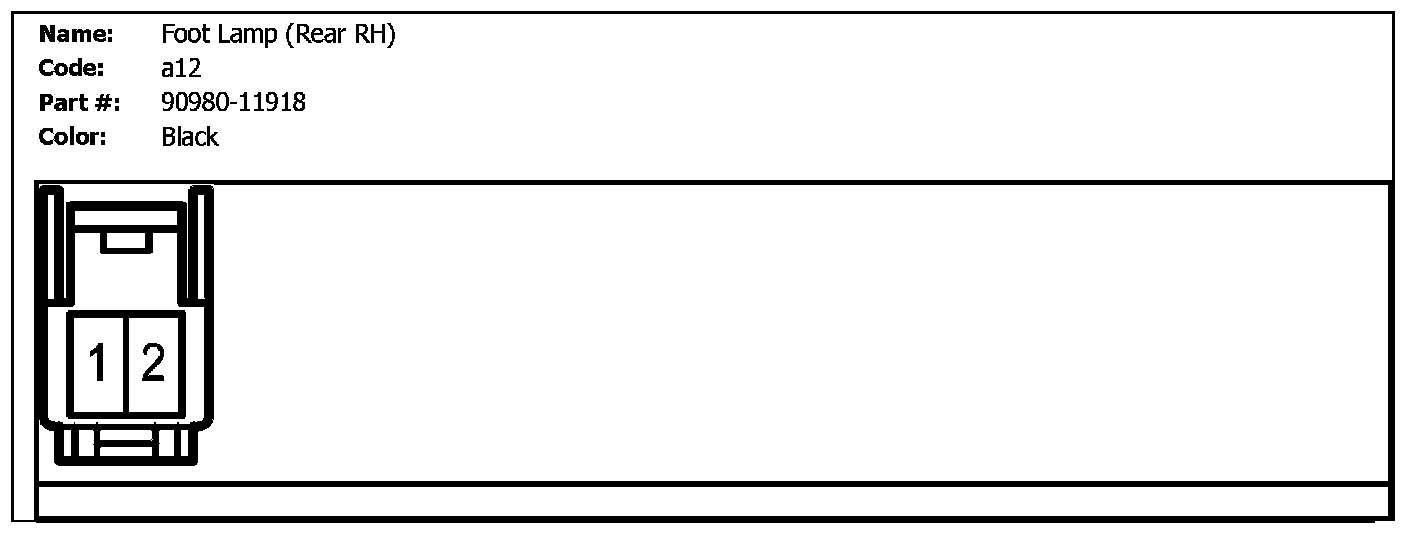

a12 (Foot Lamp (Rear RH)):

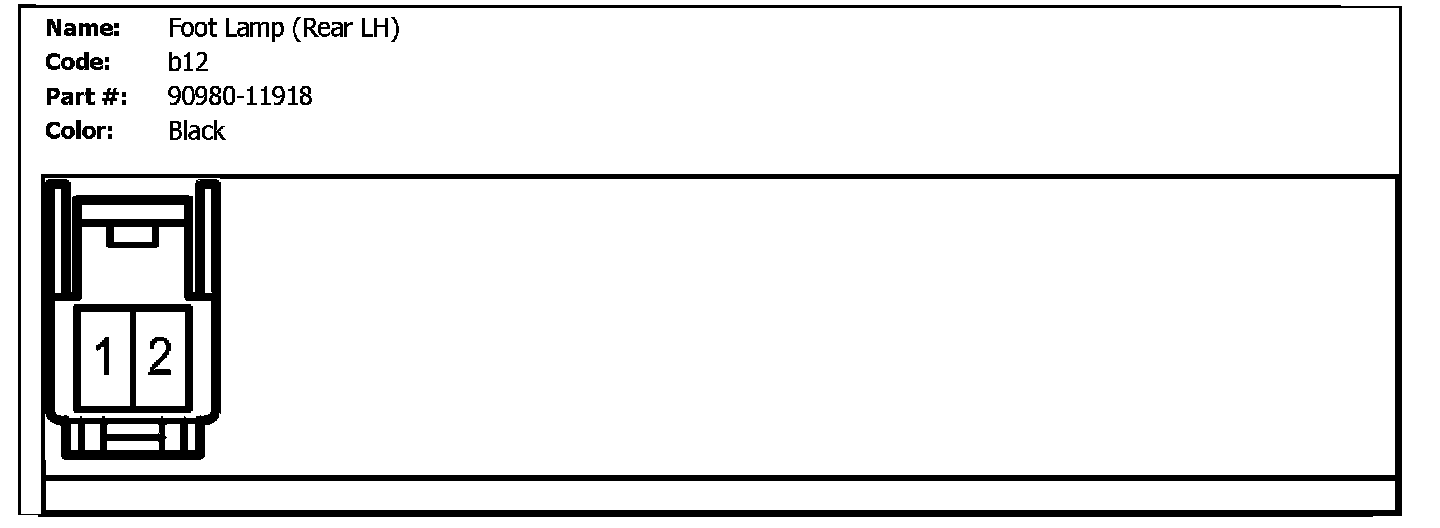

b12 (Foot Lamp (Rear LH)):

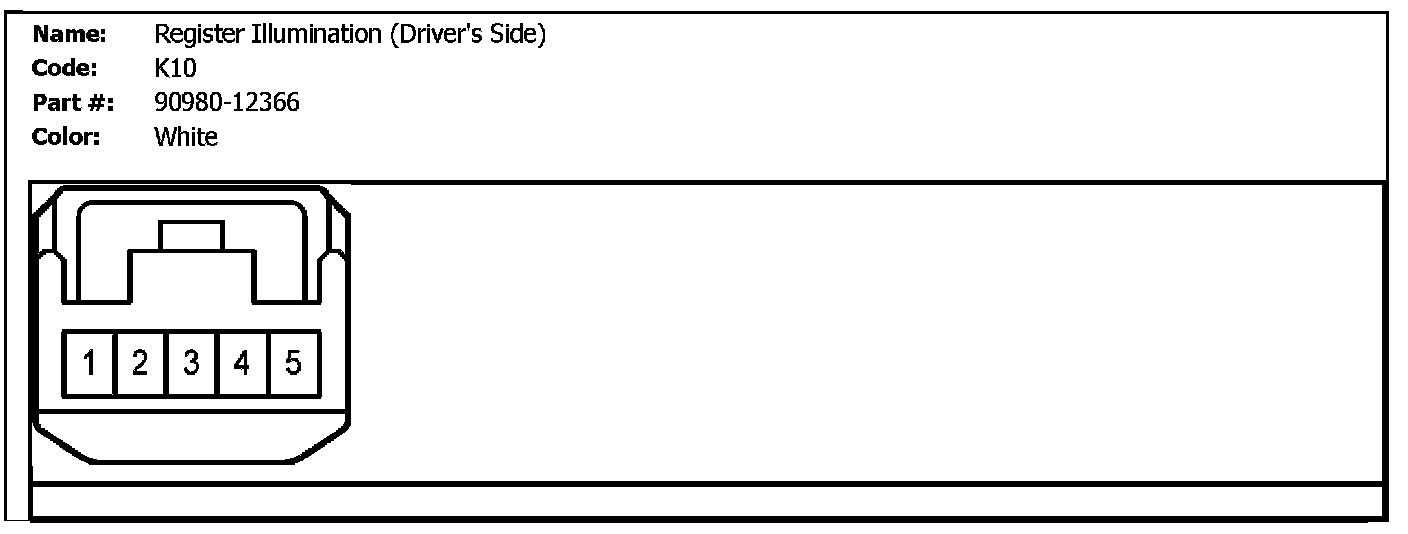

K10 (Register Illumination (Driver's Side)):

K17 (Foot Lamp (LH)):

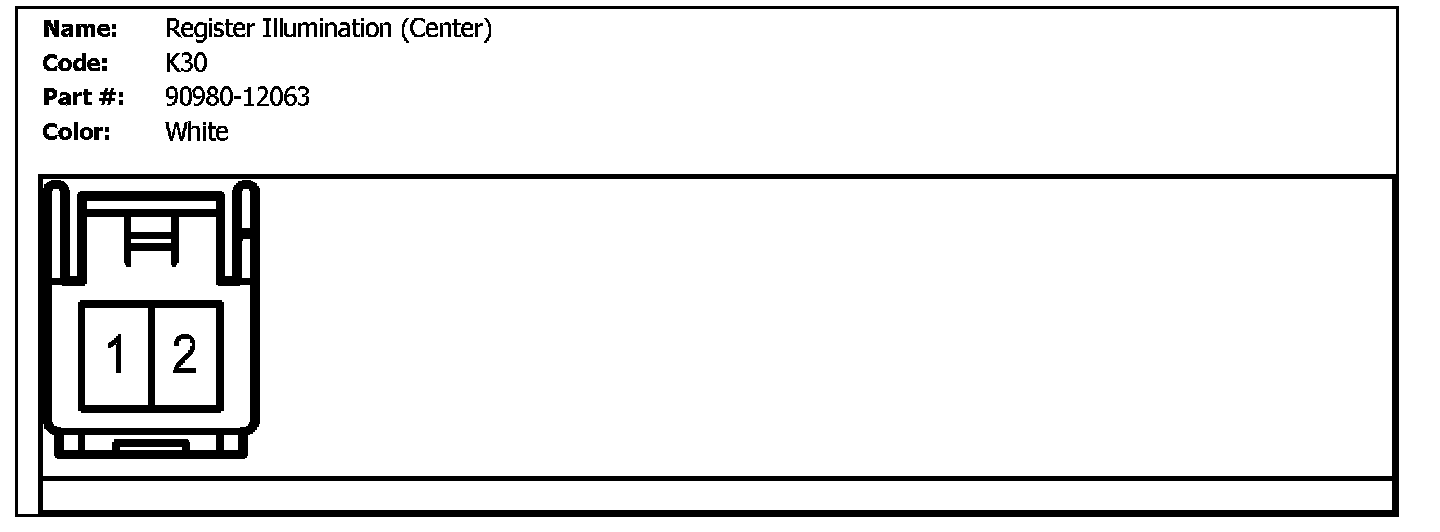

K30 (Register Illumination (Center):

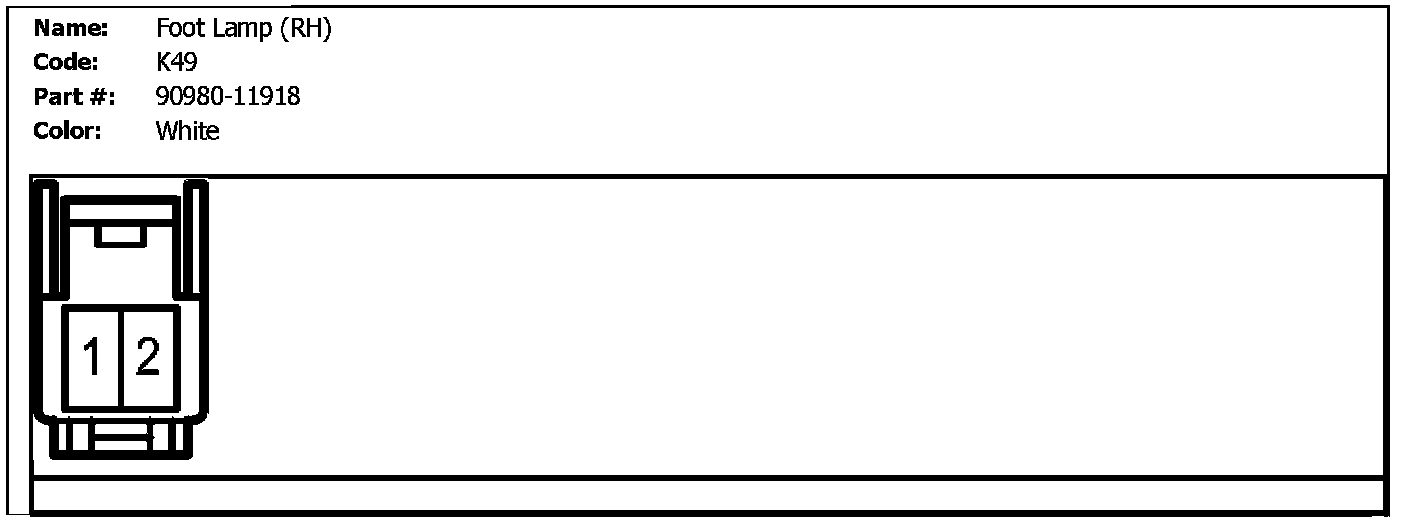

K49 (Foot Lamp (RH)):

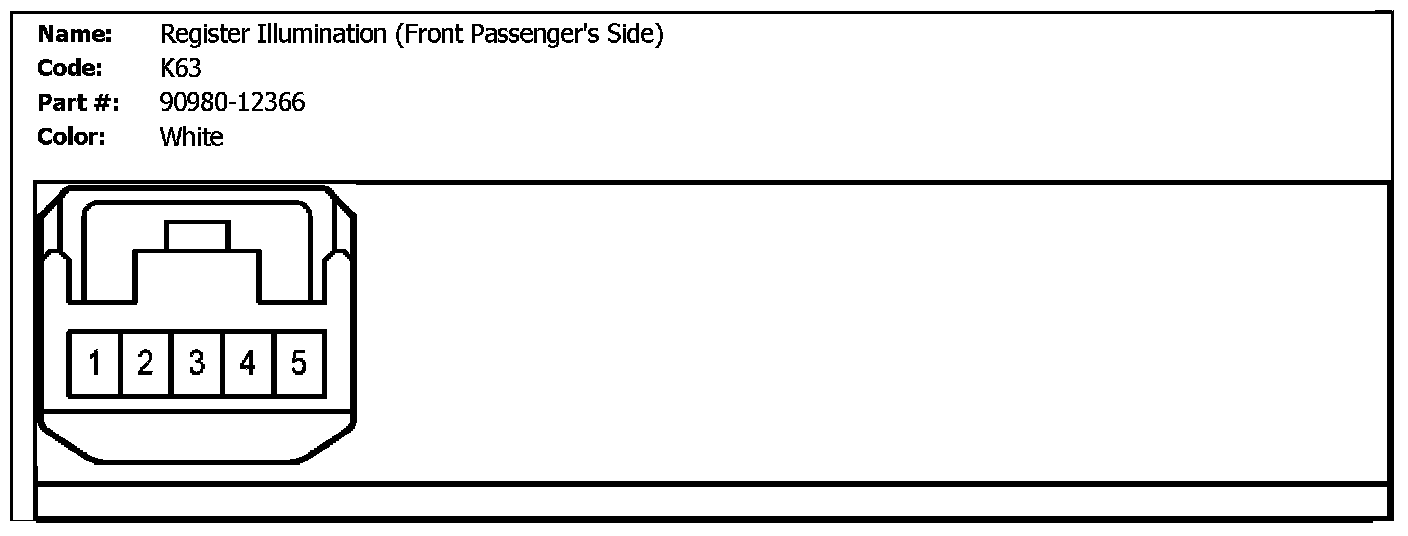

K63 (Register Illumination (Front Passenger's Side)):

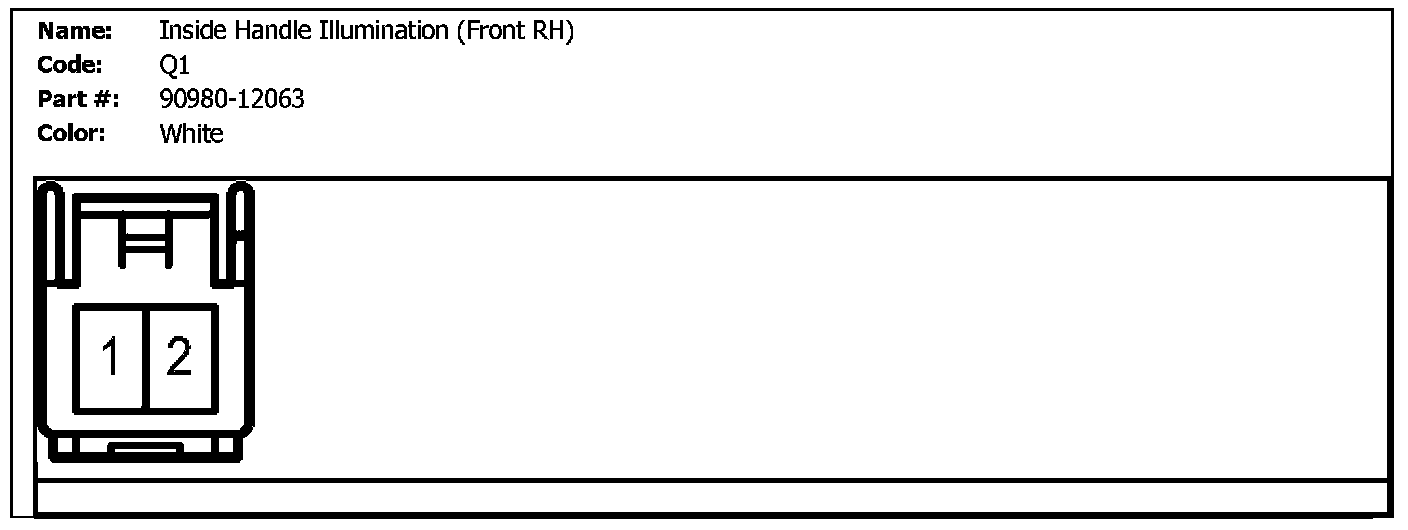

Q1 (Inside Handle Illumination (Front RH)):

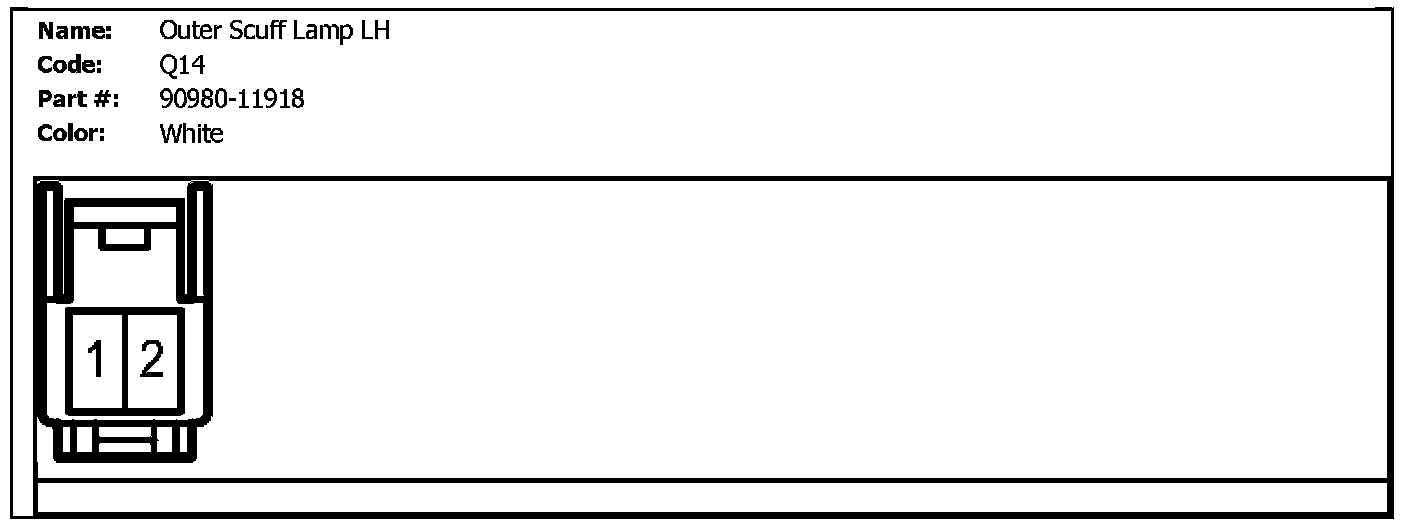

Q14 (Outer Scuff Lamp LH):

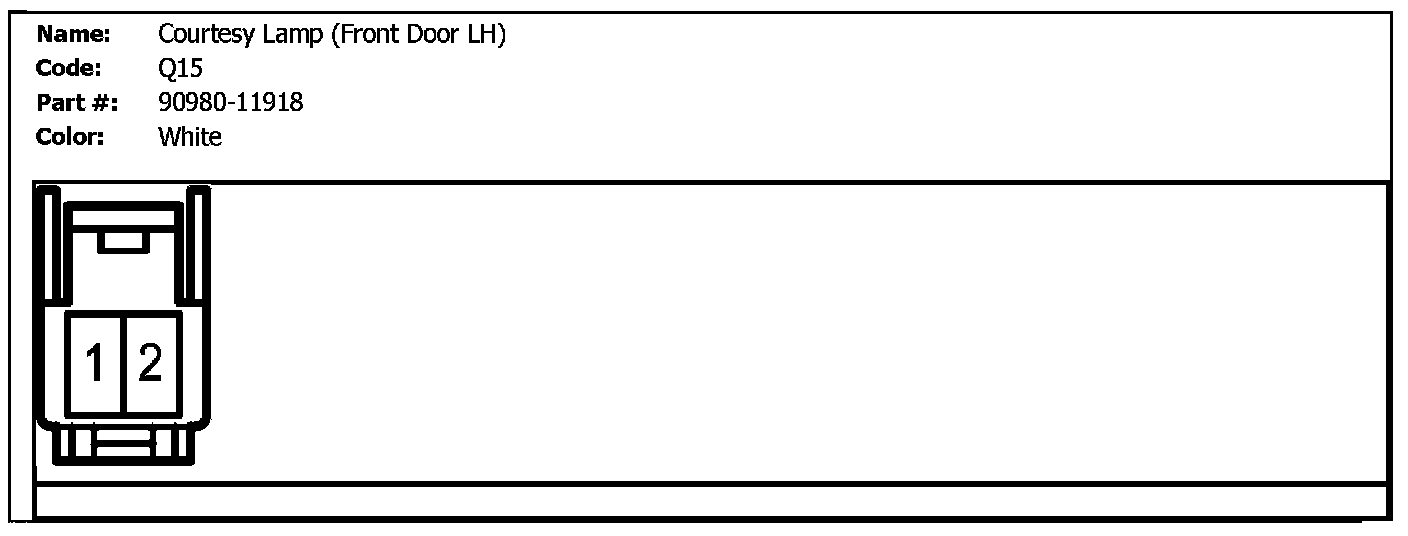

Q15 (Courtesy Lamp (Front Door LH)):

Q7 (Outer Scuff Lamp RH):

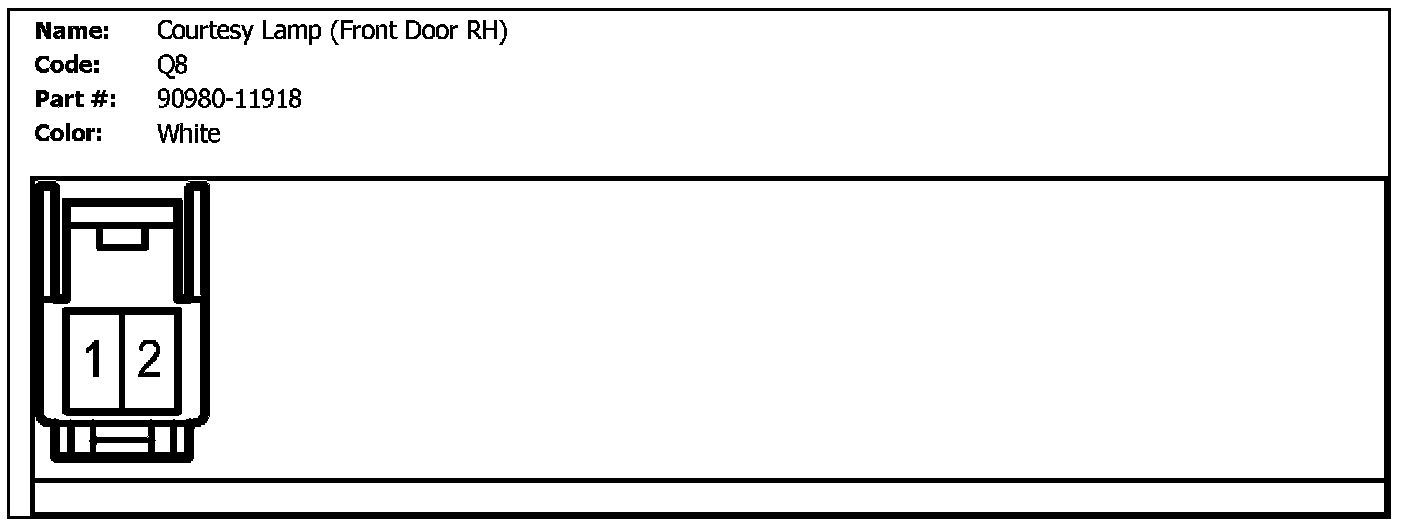

Q8 (Courtesy Lamp (Front Door RH)):

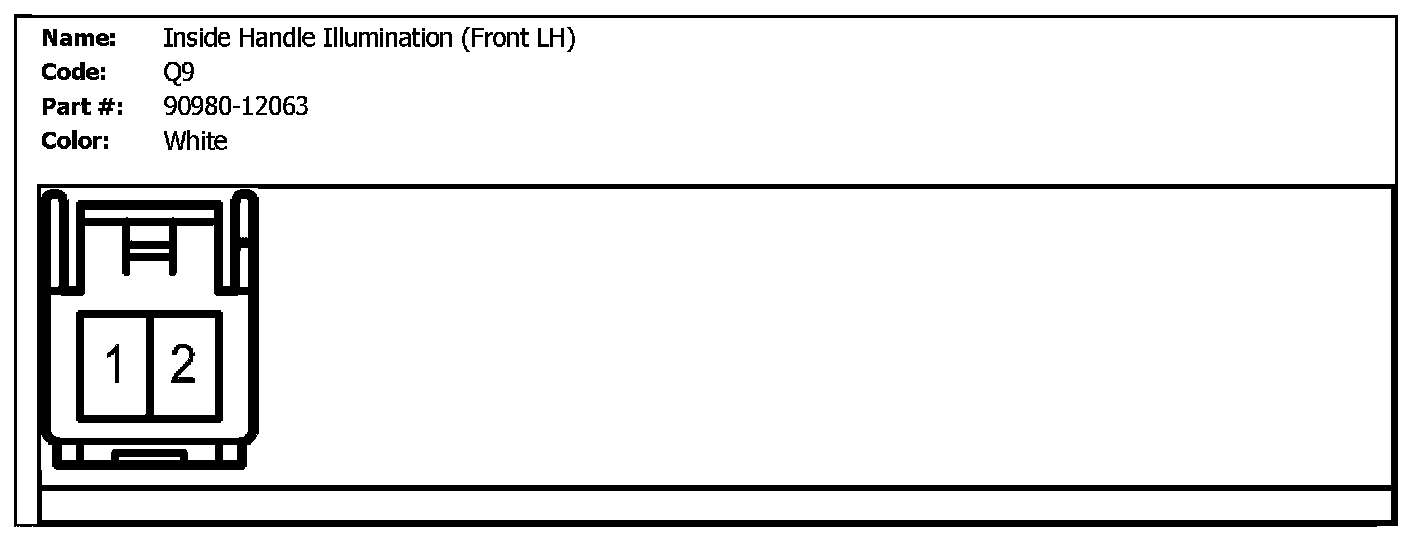

Q9 (Inside Handle Illumination (Front LH)):

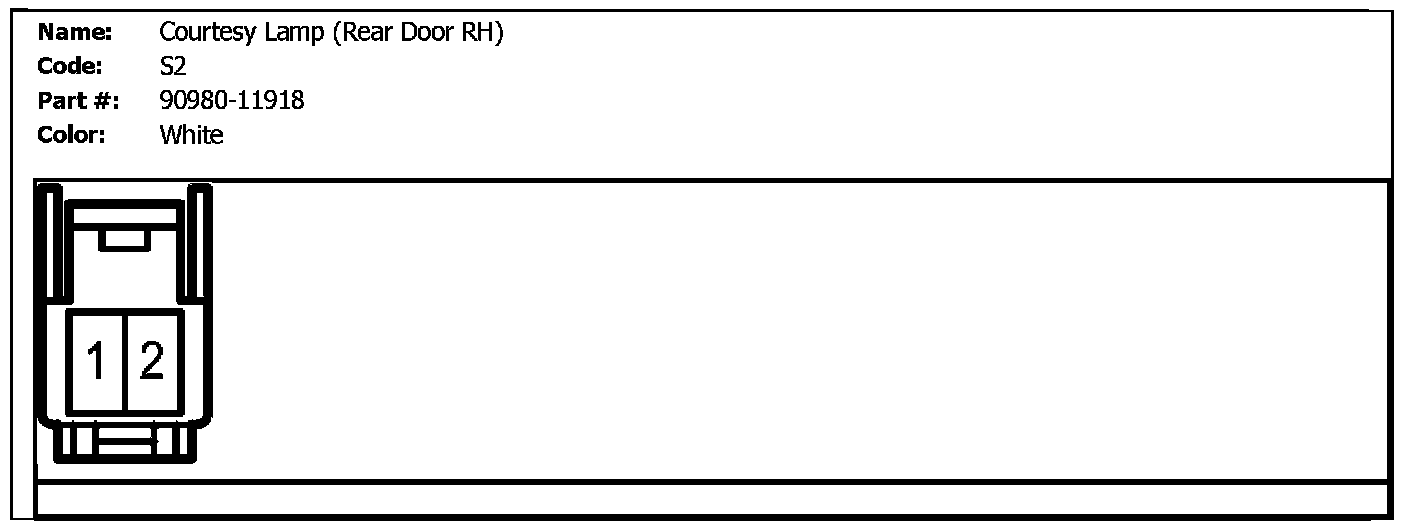

S2 (Courtesy Lamp (Rear Door RH)):

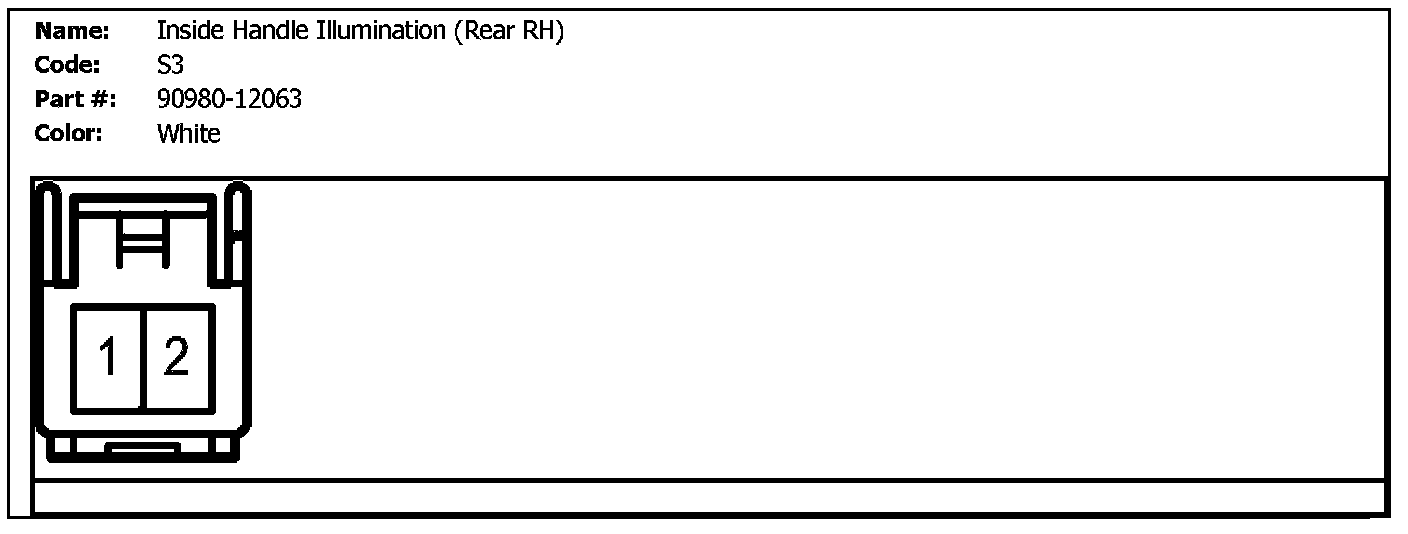

S3 (Inside Handle Illumination (Rear RH)):

S6 (Courtesy Lamp (Rear Door LH)):

S7 (Inside Handle Illumination (Rear LH)):

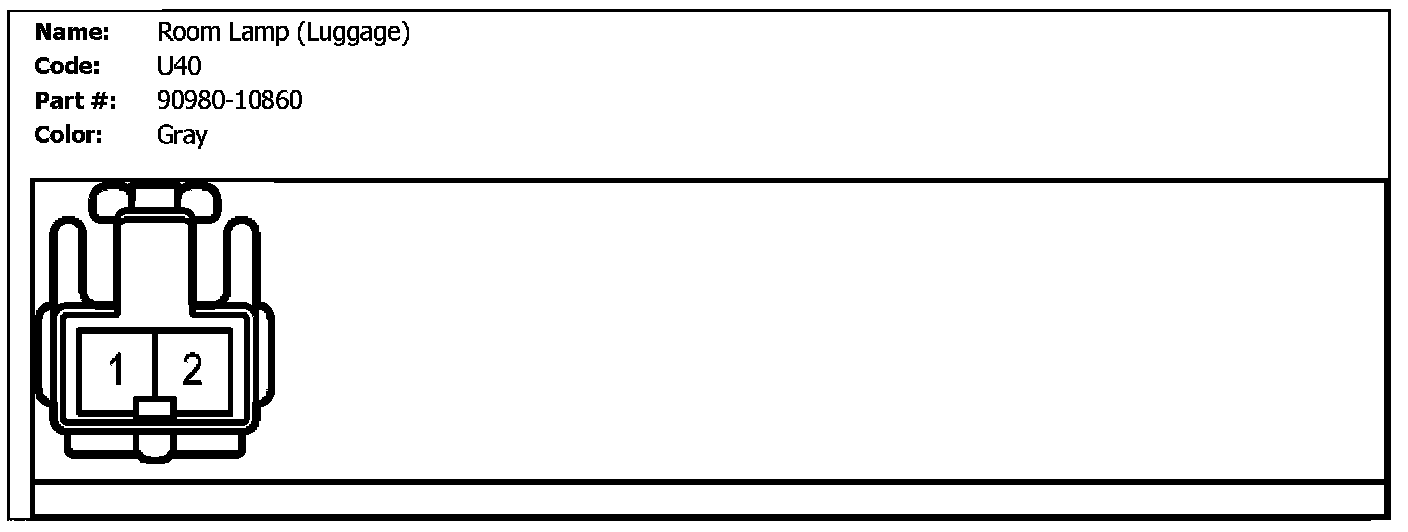

U40 (Room Lamp (Luggage)):

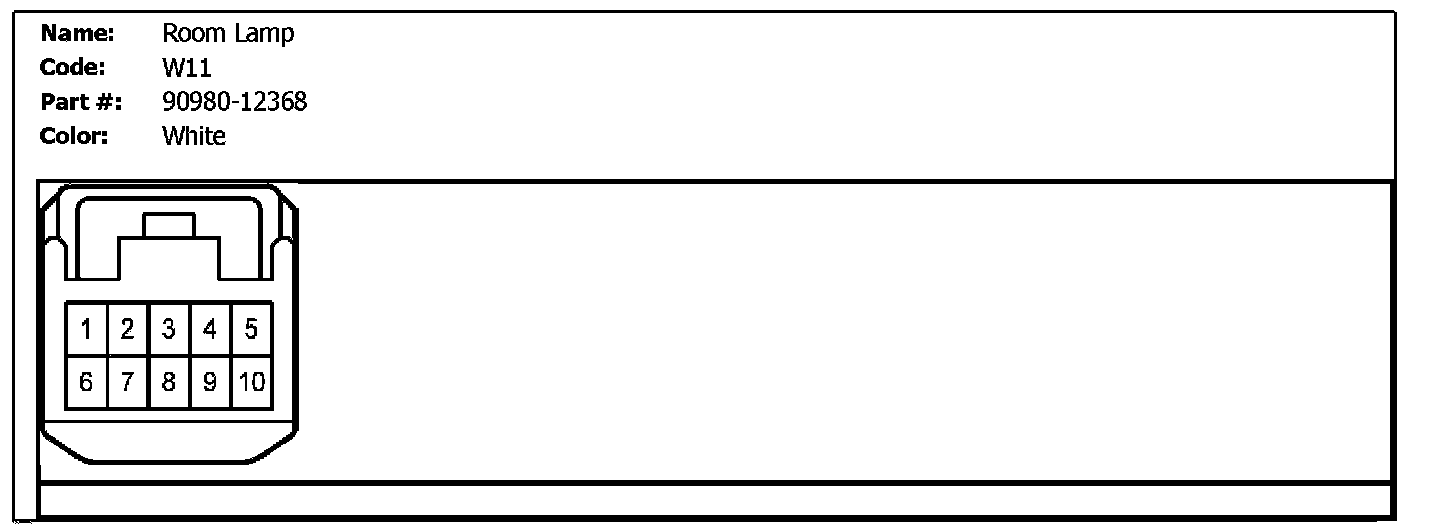

W11 (Room Lamp):
