Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE STEERING WHEEL NO. 2 COVER LOWER Removal

3. REMOVE STEERING WHEEL NO. 3 COVER LOWER Removal

4. REMOVE STEERING WHEEL PAD Removal

5. REMOVE STEERING WHEEL ASSEMBLY
For 2GR-FSE Removal
For 1UR-FSE Removal

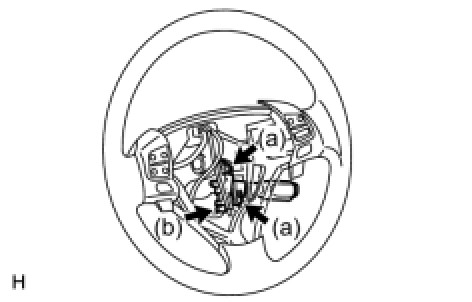

6. REMOVE CRUISE CONTROL MAIN SWITCH
(a) Disconnect the connector.
(b) Remove the 2 screws and switch.
