Data List / Active Test

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: DATA LIST / ACTIVE TEST

1. DATA LIST
HINT:
With the Techstream connected to the DLC3 and the engine switch on (IG), the Electronically Controlled Brake System, ABS, and VSC Data List can be displayed. Follow the prompts on the tester screen to access the Data List.

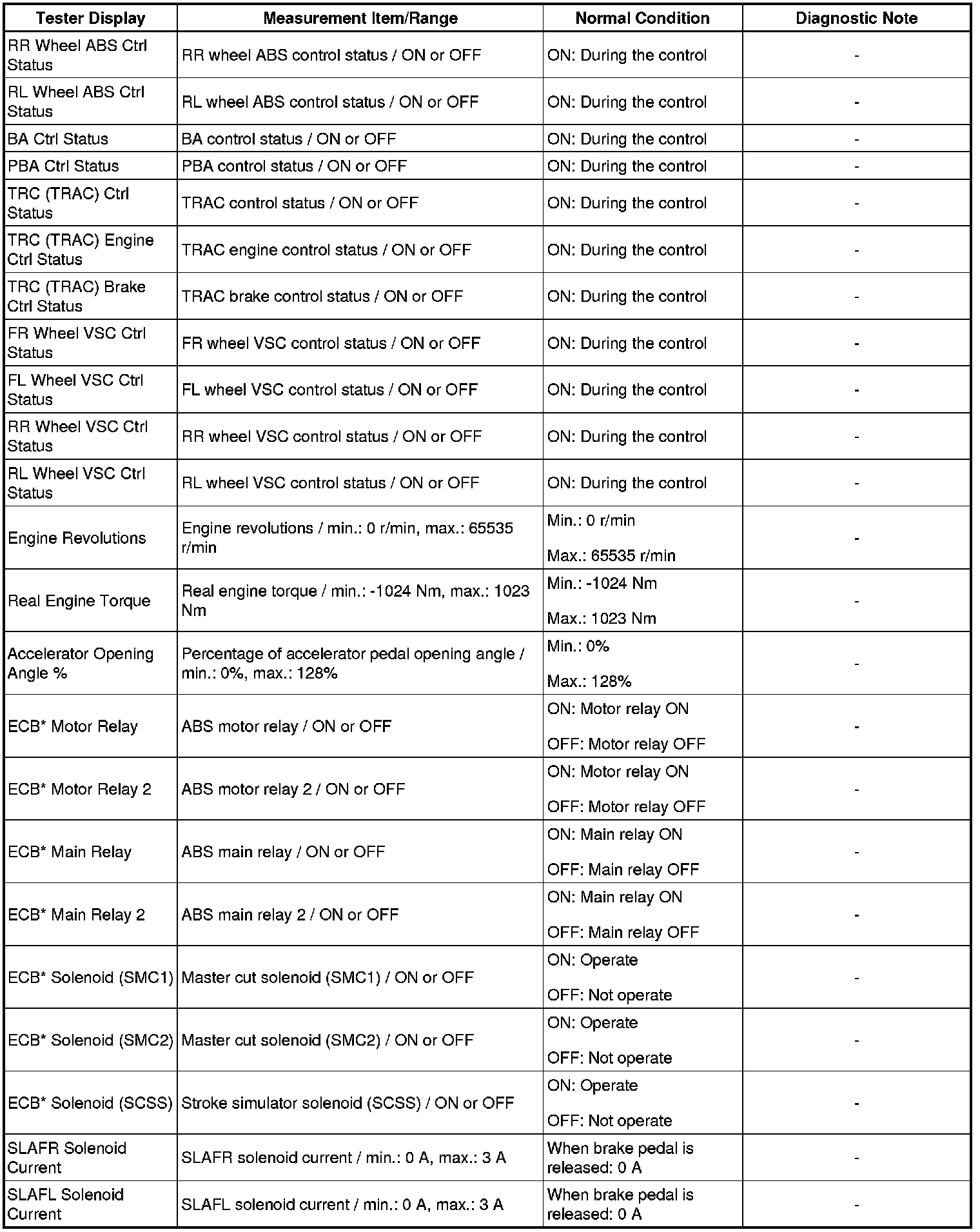

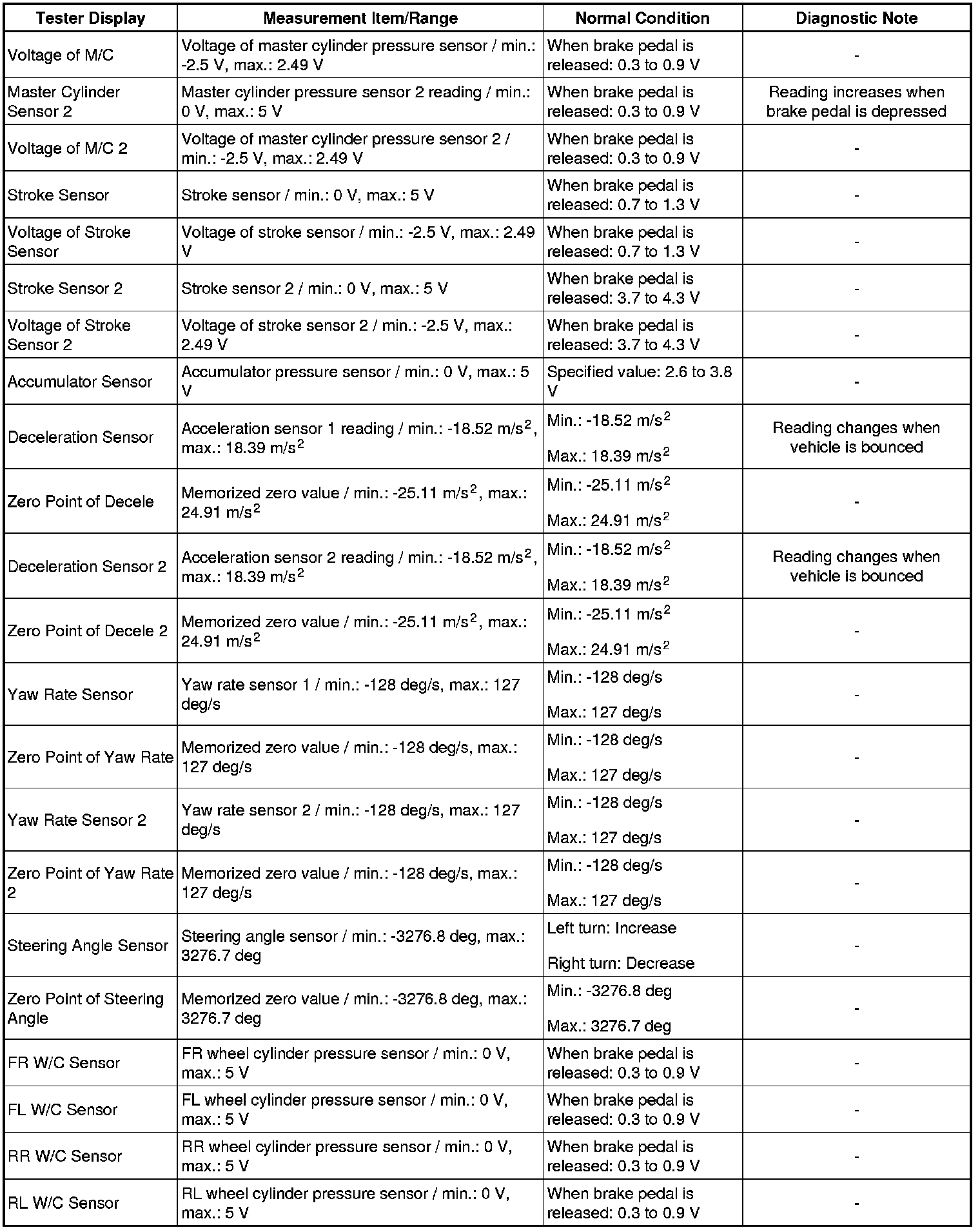

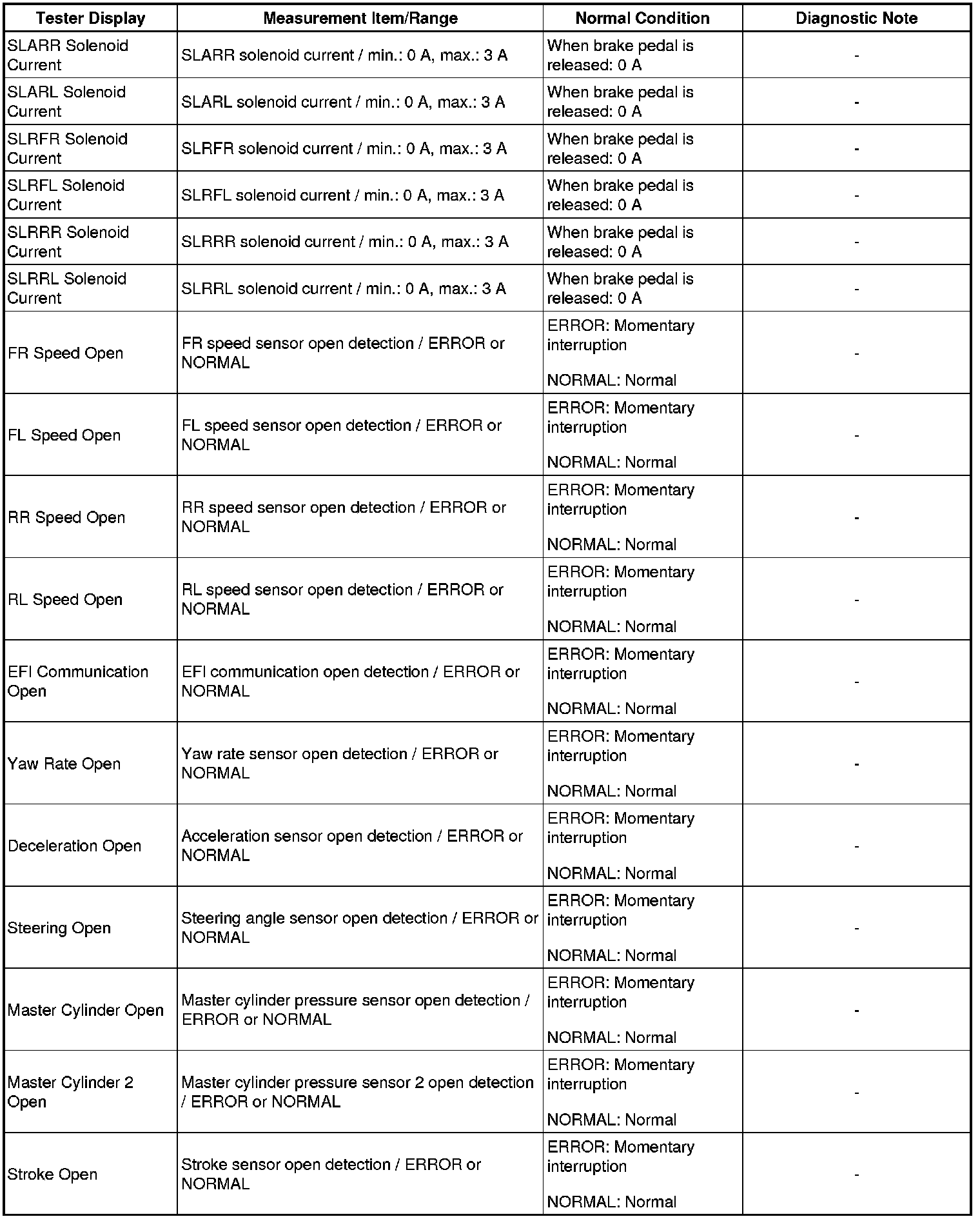

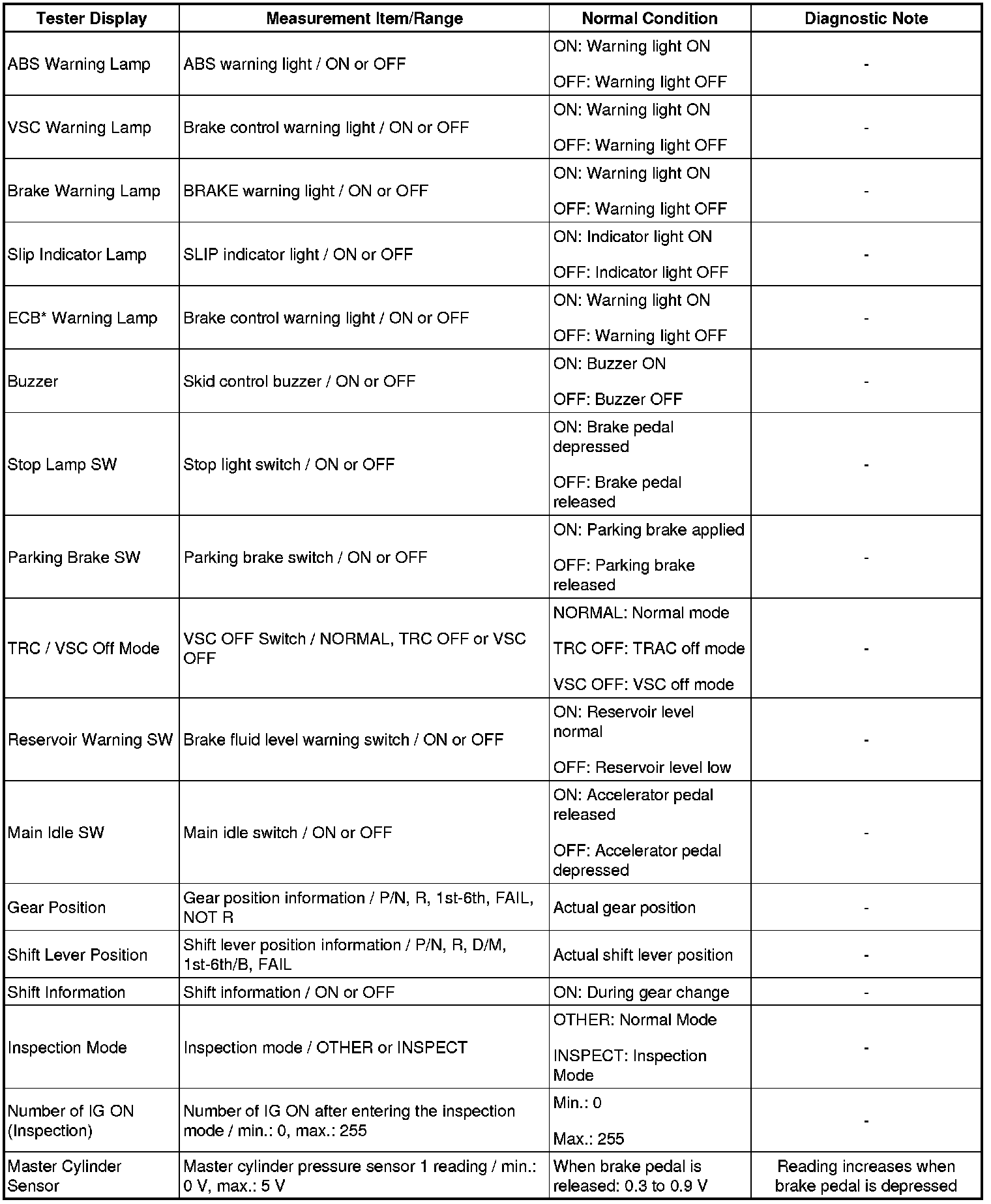

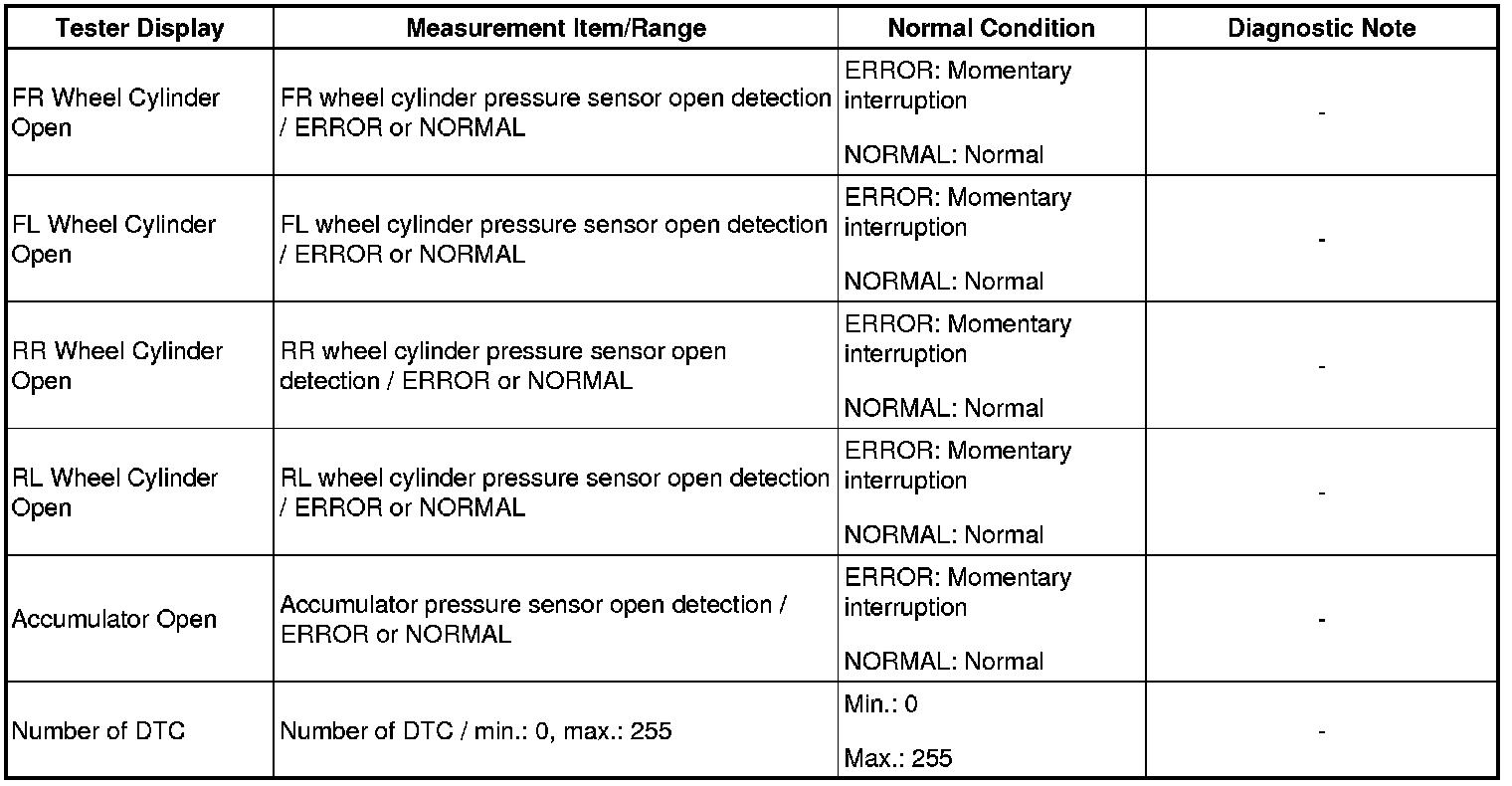

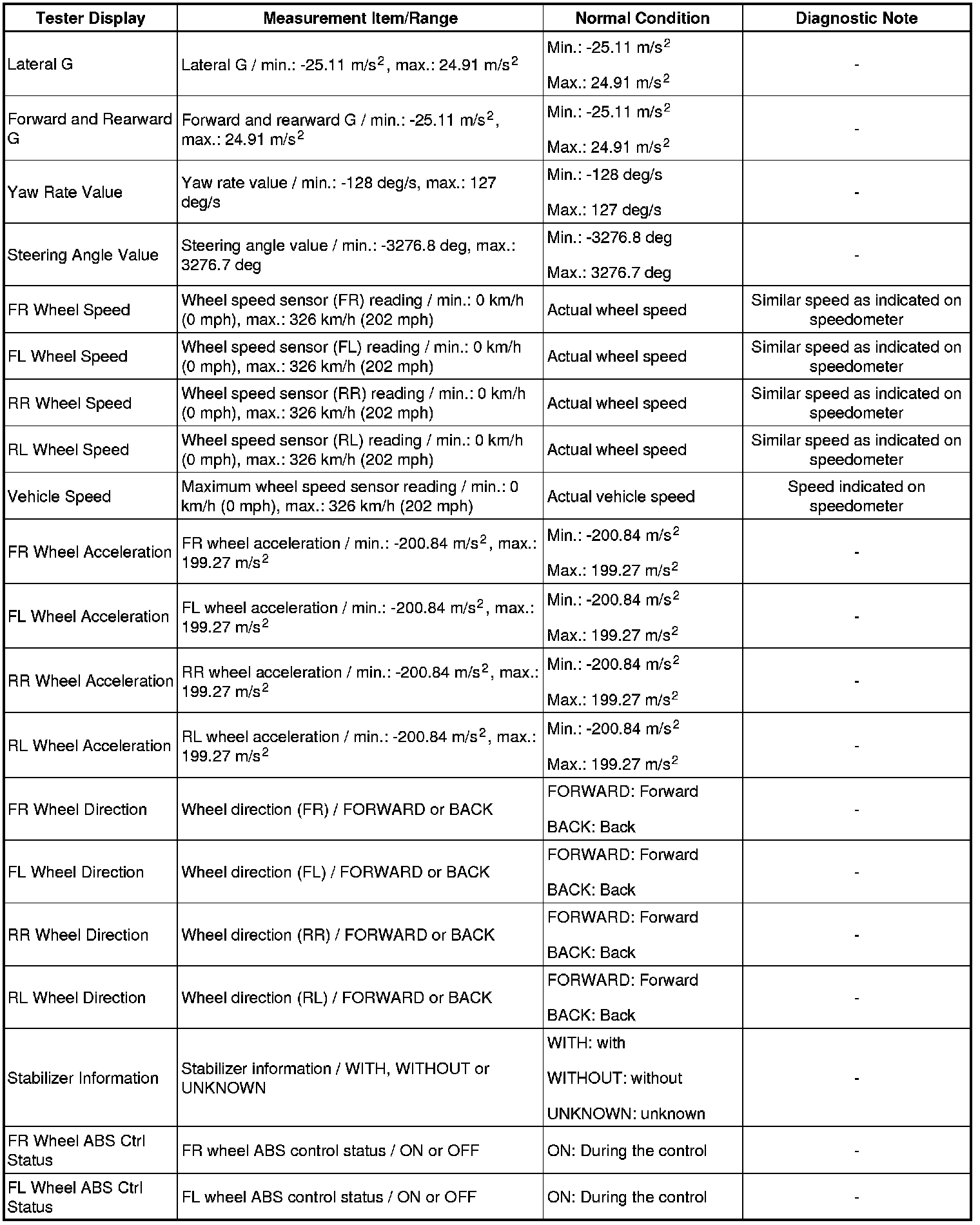

ABS / VSC / TRAC:

























*: Electronically Control Brake
2. ACTIVE TEST
HINT:
Performing the Active Test using the Techstream allows the relay, actuator, etc. to operate without removing any parts. Performing the Active Test as the first step in troubleshooting is one way to save time.
It is possible to display the Data List during the Active Test.

(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) According to the display on the tester, perform the Active Test.
HINT:
The engine switch must be turned on (IG) to proceed to the Active Test using the Techstream.

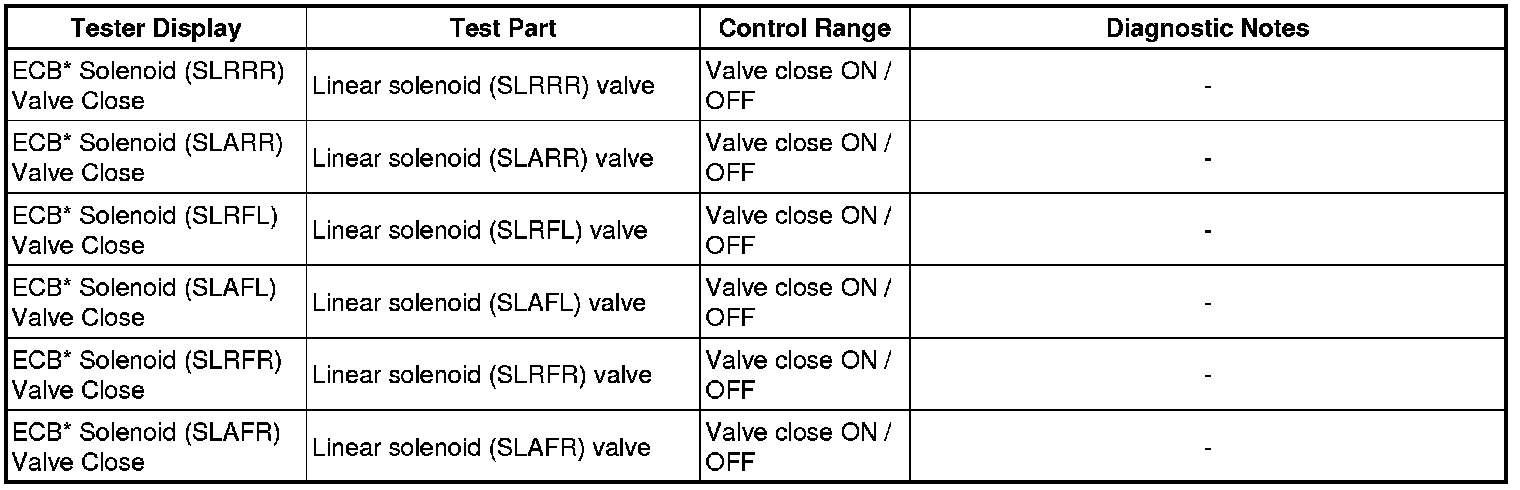

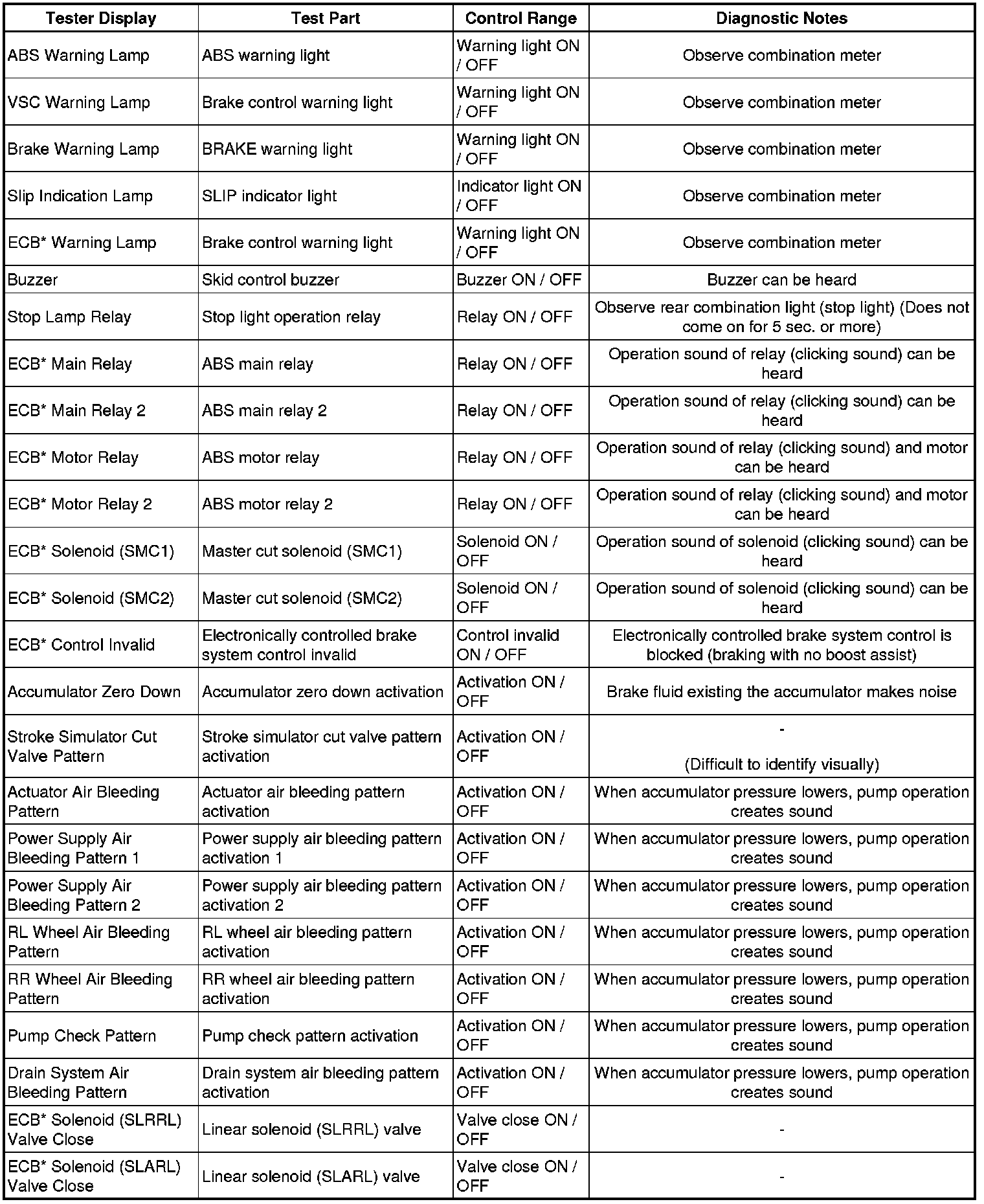

ABS / VSC / TRAC:









*: Electronically Controlled Brake
