TC and CG Terminal Circuit

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the ECU to display the DTC by blinking the ABS warning light.

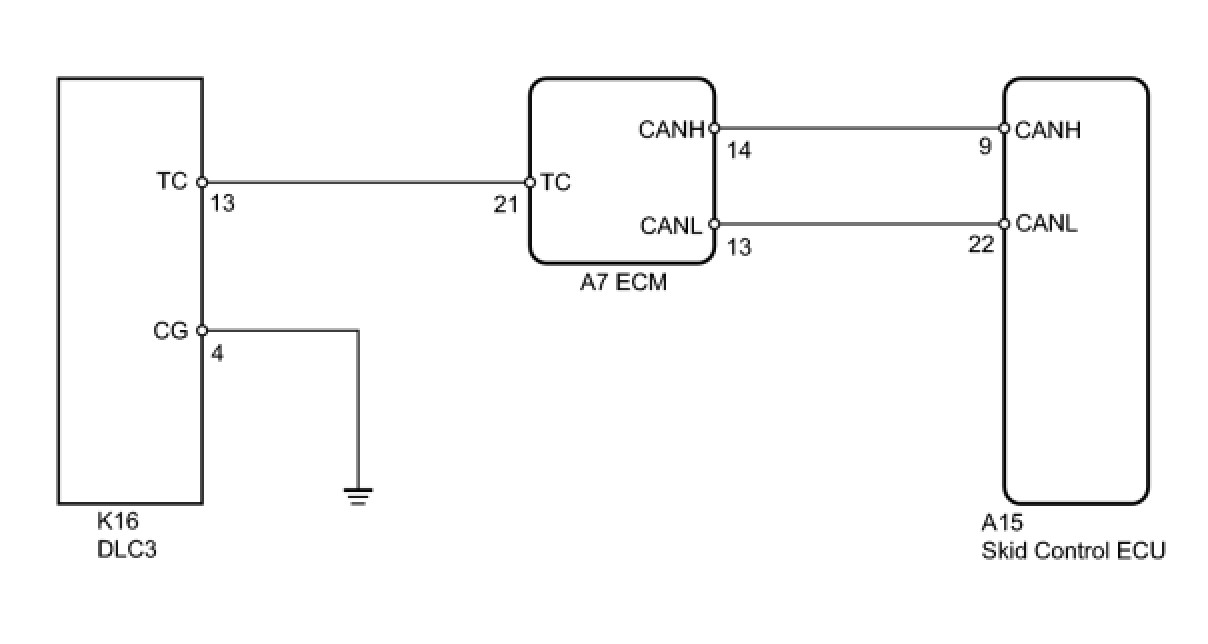

WIRING DIAGRAM

INSPECTION PROCEDURE
NOTICE:
When replacing the skid control ECU, perform initialization of linear solenoid valve calibration Programming and Relearning.

PROCEDURE

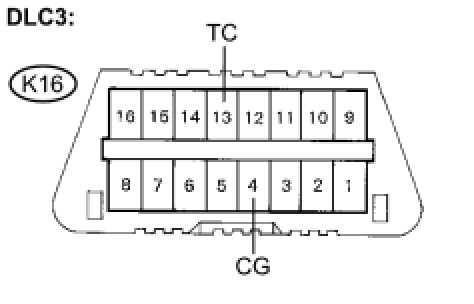

1. INSPECT DLC3 (TC AND CG TERMINAL)

(a) Turn the engine switch on (IG).
(b) Measure the voltage according to the value(s) in the table below.
Voltage:

NG -- CHECK HARNESS AND CONNECTOR (DLC3 (TC) TO ECM)
OK -- Continue to next step.
2. CHECK CAN COMMUNICATION SYSTEM
(a) Check if the CAN communication DTC is output Diagnosis System.

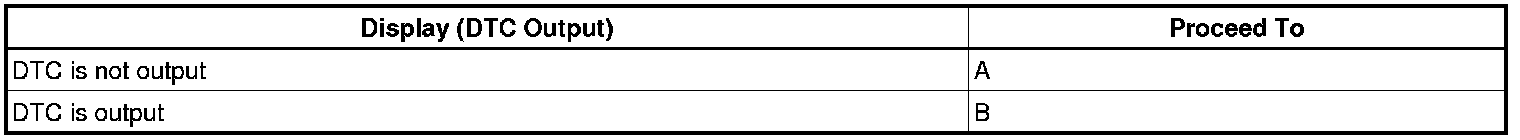

Result:

HINT:
If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE, refer back to the table and proceed to the next step before replacing the part Problem Symptoms Table.

B -- REPAIR CAN COMMUNICATION SYSTEM
A -- Continue to next step.

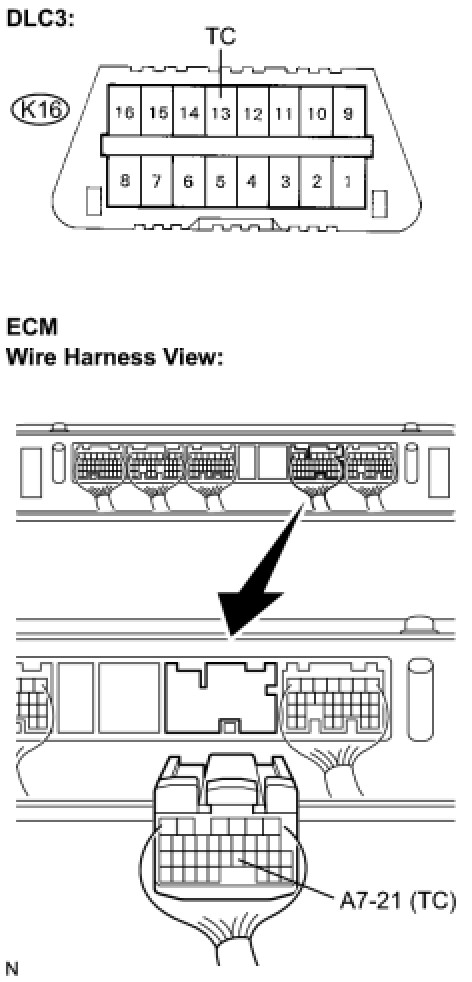

3. CHECK HARNESS AND CONNECTOR (DLC3 (TC) TO ECM)

(a) Disconnect the ECM connector.
(b) Measure the resistance according to the value(s) in the table below.
Resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (DLC3 (CG) TO BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.
Resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
5. CHECK ECM (DLC3 (TC) INPUT)

(a) Using SST, connect terminals TC and CG of the DLC3.
SST: 09843-18040
(b) Check if the MIL is blinking.

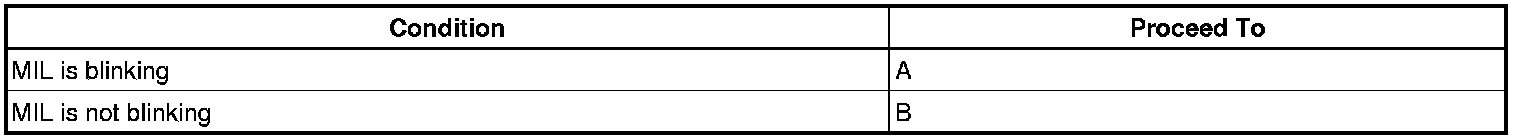

Result:

B -- REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM (TC) CIRCUIT)
A -- Continue to next step.
6. CHECK CAN COMMUNICATION SYSTEM
(a) Check if the CAN communication DTC is output Diagnosis System.
Result:
