Removal

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal

2. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

3. REMOVE INSTRUMENT SIDE PANEL LH Removal

4. REMOVE INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY Removal

5. REMOVE INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY Removal

6. REMOVE LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

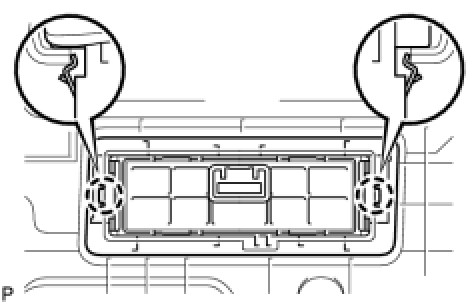

(a) Disengage the 2 claws and remove the luggage compartment door opener inner switch.
