Installation

SEAT: FRONT SEAT ASSEMBLY: INSTALLATION

HINT:
Use the same procedures for the LH and RH side.

1. INSTALL FRONT SEAT ASSEMBLY
(a) Place the seat in the cabin.
(b) Connect the connectors under the seat.
(c) Connect the cable to the negative (-) battery terminal.
(d) Operate the power seat switch knob and move the seat to the foremost position.
(e) Tighten the 2 bolts on the rear side of the seat.
Torque: 36.8 Nm (375 kgf-cm, 27 ft-lbf)
HINT:

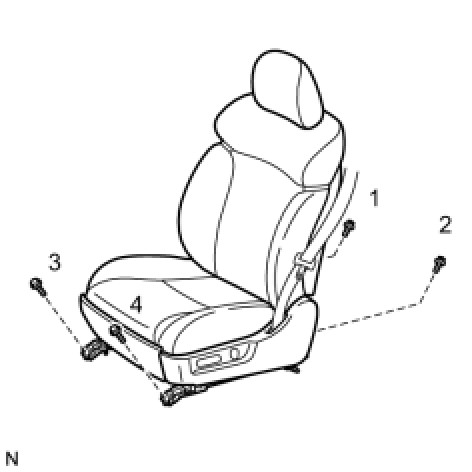

Tighten the 2 bolts in the order indicated in the illustration.

(f) Operate the power seat switch knob and move the seat to the rearmost position.
(g) Tighten the 2 bolts on the rear side of the seat.
Torque: 36.8 Nm (375 kgf-cm, 27 ft-lbf)
HINT:
Tighten the 2 bolts in the order indicated in the illustration.

2. INSTALL FRONT SEAT OUTER BELT ASSEMBLY (for Front Driver Side)
(a) Move the seat using the power seat switch knob so that the seat belt anchor bolt is revealed.

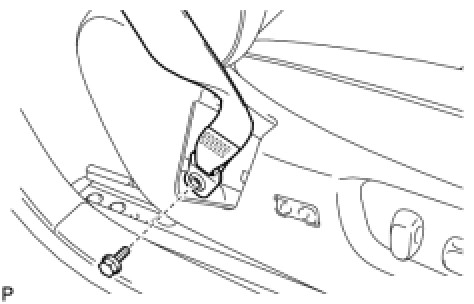

(b) Install the front seat outer belt anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
(c) Attach the 2 claws to install the front seat wire connecting plate.
3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY (for Front Passenger Side)

(a) Move the seat using the power seat switch knob so that the seat belt anchor bolt is revealed.
(b) Connect the connector.

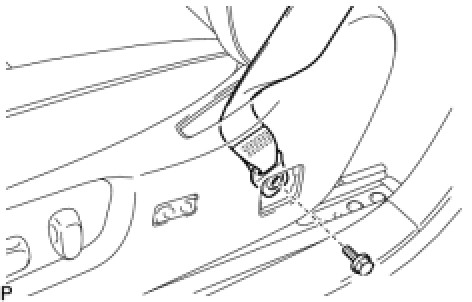

(c) Install the front seat outer belt anchor with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)

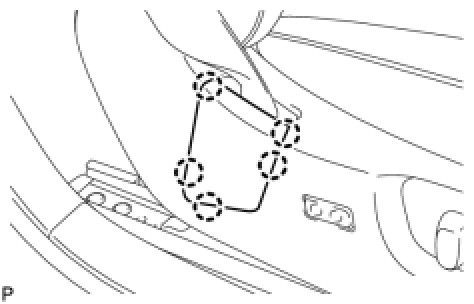

(d) Attach the 5 claws to install the front seat wire connecting plate.
4. PERFORM INITIALIZATION
Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. CHECK SRS WARNING LIGHT
Check the SRS warning light Diagnosis System.
6. INSPECT FRONT SEAT ASSEMBLY
(a) Check the power seat operation.
(b) Check the seat heater operation (w/ seat heater).
(1) Turn the engine switch on (IG).
(2) Turn the seat heater switch ON.
(3) Wait 5 minutes or more and confirm that the seat surface becomes warm.
