Reassembly

SLIDING ROOF: SLIDING ROOF HOUSING: REASSEMBLY

1. INSTALL ROOF WIND DEFLECTOR PANEL ASSEMBLY
(a) Attach the 2 claws and install the wind deflector panel.






2. INSTALL SLIDING ROOF DRIVE CABLE ASSEMBLY

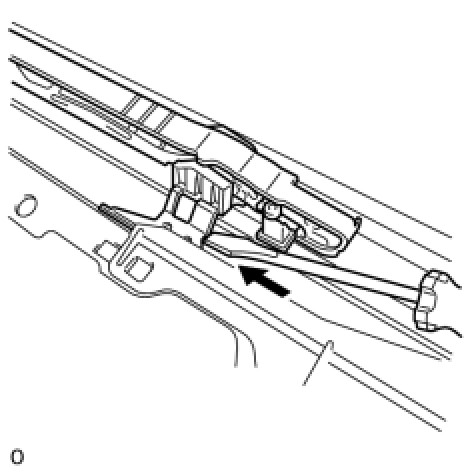

(a) Using a screwdriver, slide the drive cable in the direction indicated by the arrow in the illustration to install it.
HINT:
Tape the screwdriver tip before use.

(b) Attach the 2 claws and install the drip channel.
(c) Install the sliding roof piece LH and RH with the 2 screws.
(d) Install the 2 sliding roof side stoppers with the 2 screws.






3. ADJUST SLIDING ROOF DRIVE CABLE ASSEMBLY

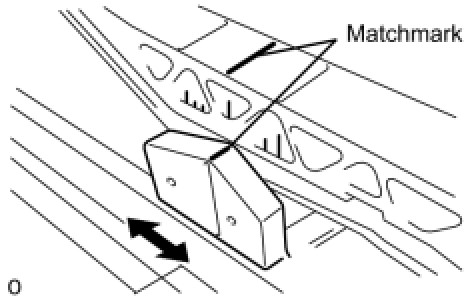

(a) Using a screwdriver, align the matchmarks by sliding the drive cable in the direction indicated by the arrow in the illustration.
HINT:
Tape the screwdriver tip before use.

4. INSTALL SUNSHADE TRIM ASSEMBLY
5. INSTALL SLIDING ROOF DRIVE GEAR ASSEMBLY
(a) Install the drive gear with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(b) Attach the bracket's claw to install the bracket.
