Mirrors: Description and Operation

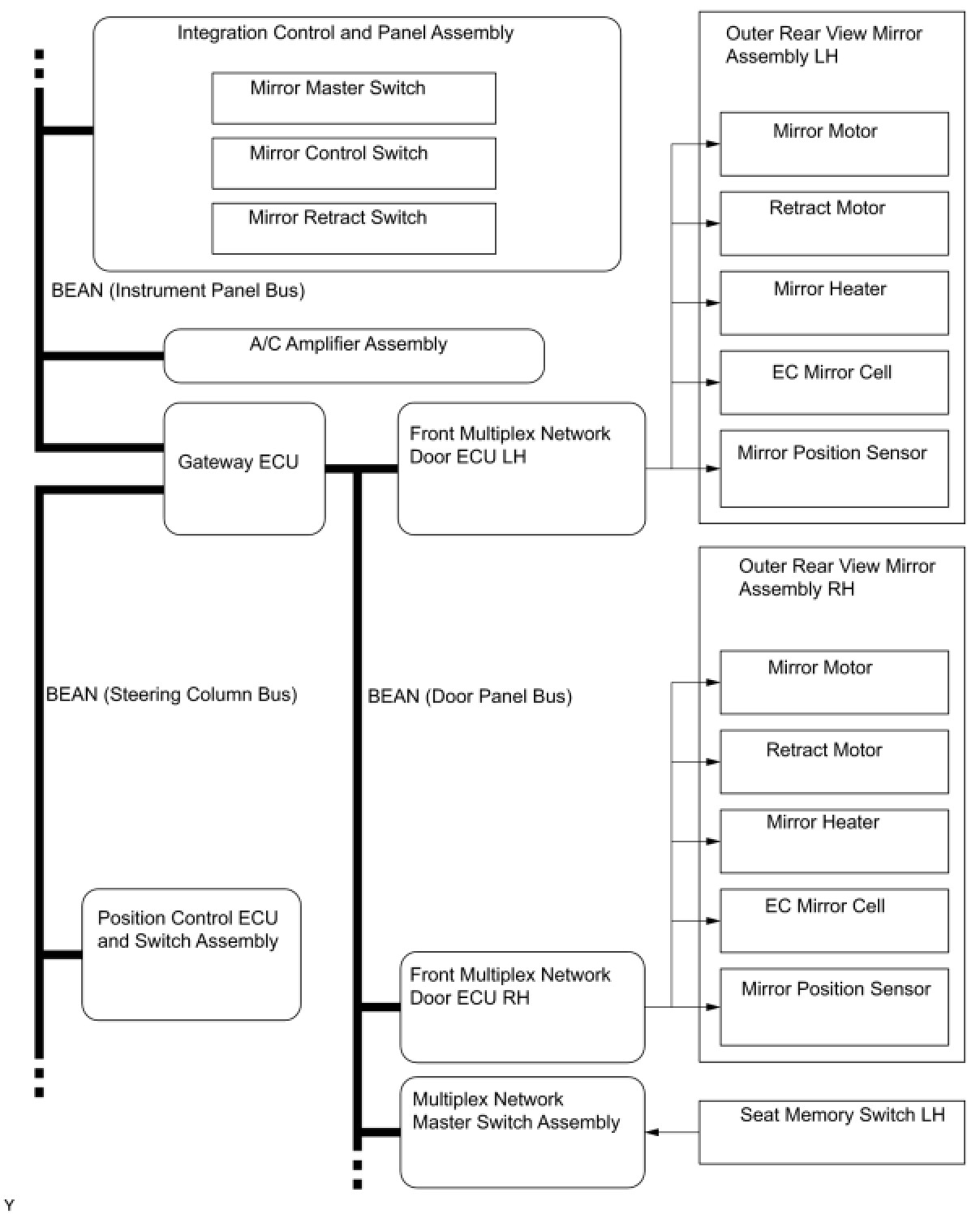

MIRROR: POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM

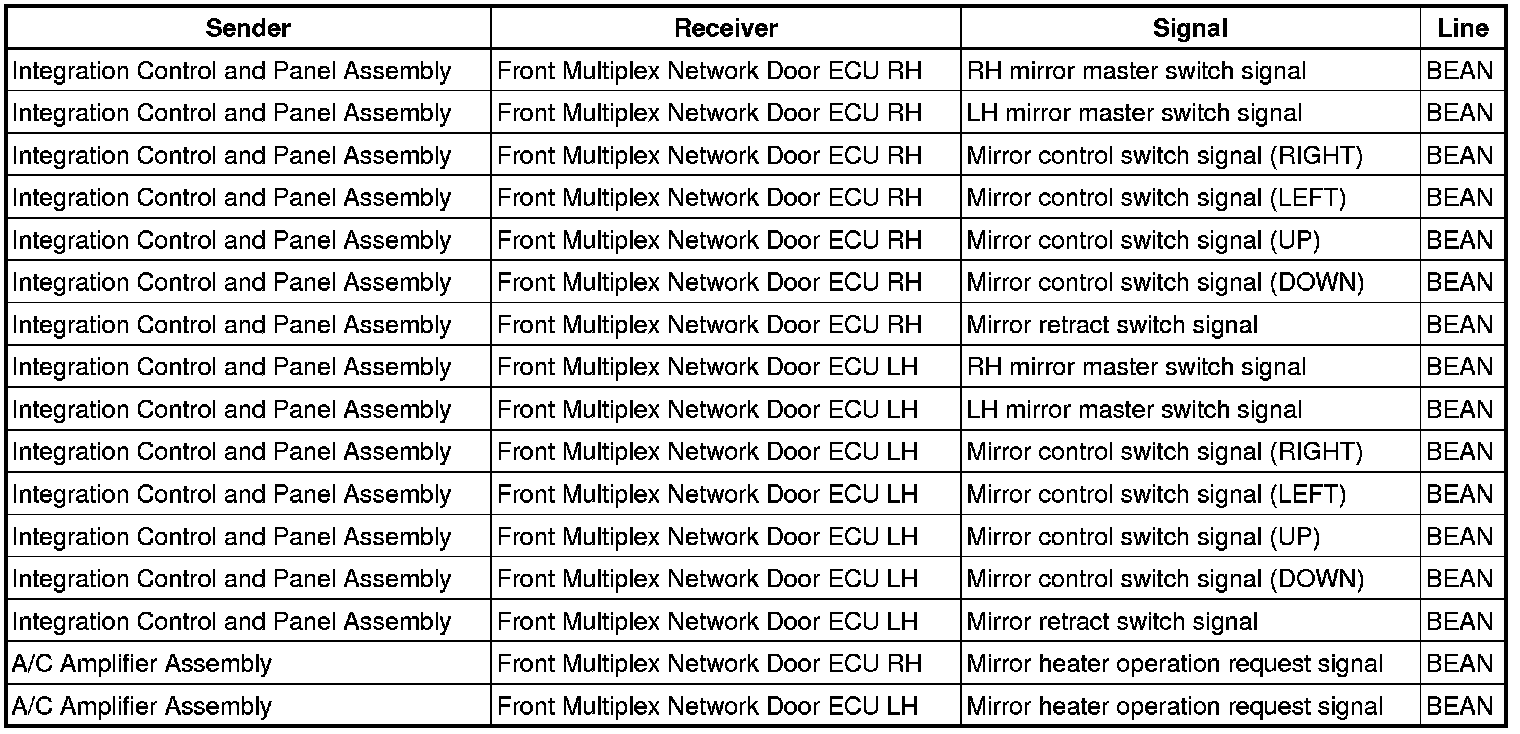

Communication table





MIRROR: POWER MIRROR CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION
This system has the following functions: automatic glare-resistant electrochromic (EC) mirror, reverse shift-linked mirror, electrical remote control type mirror, memory function, and rear window defogger-linked mirror heater.

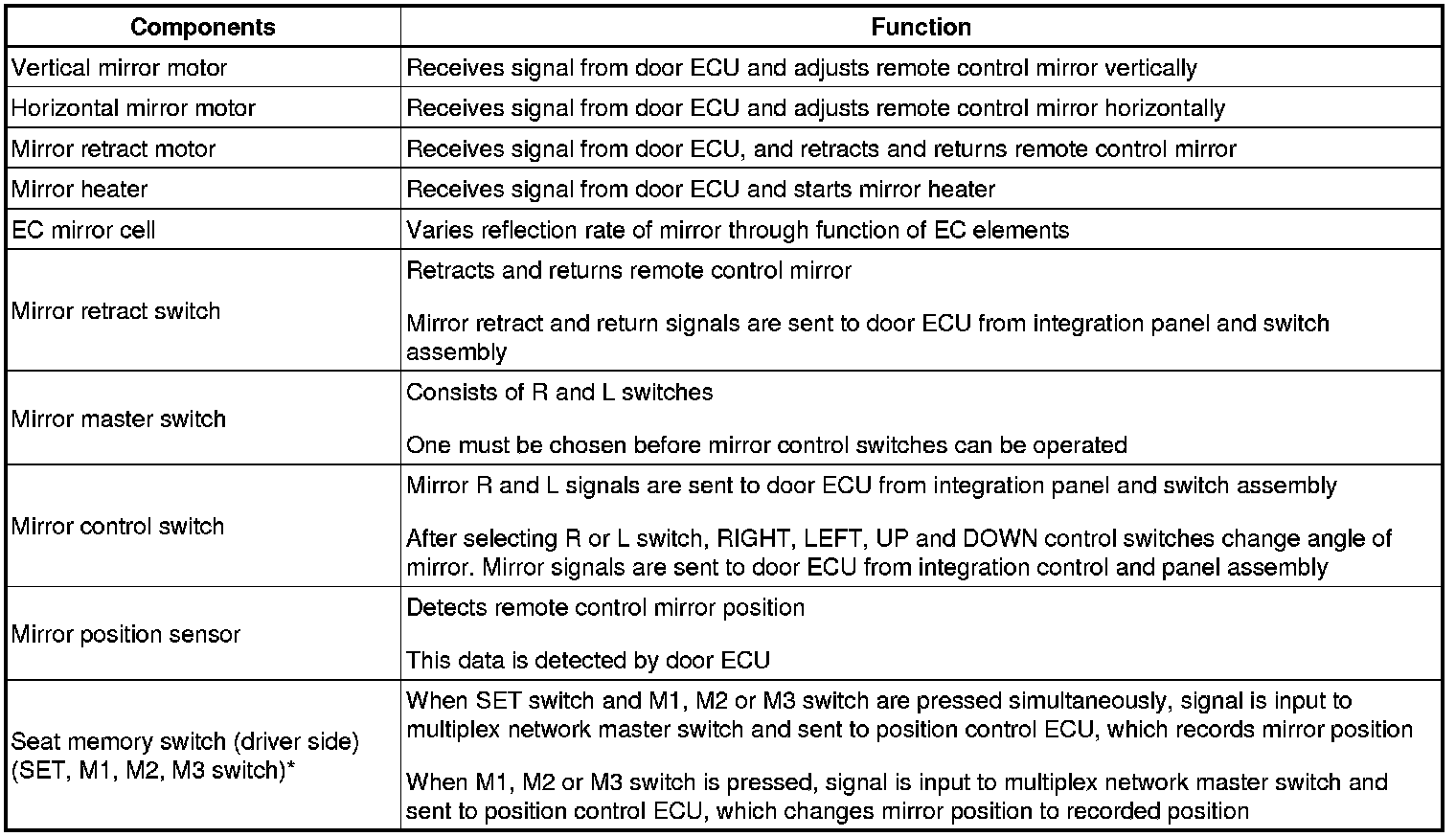

2. FUNCTION OF MAIN COMPONENT





- *: w/ Seat position memory

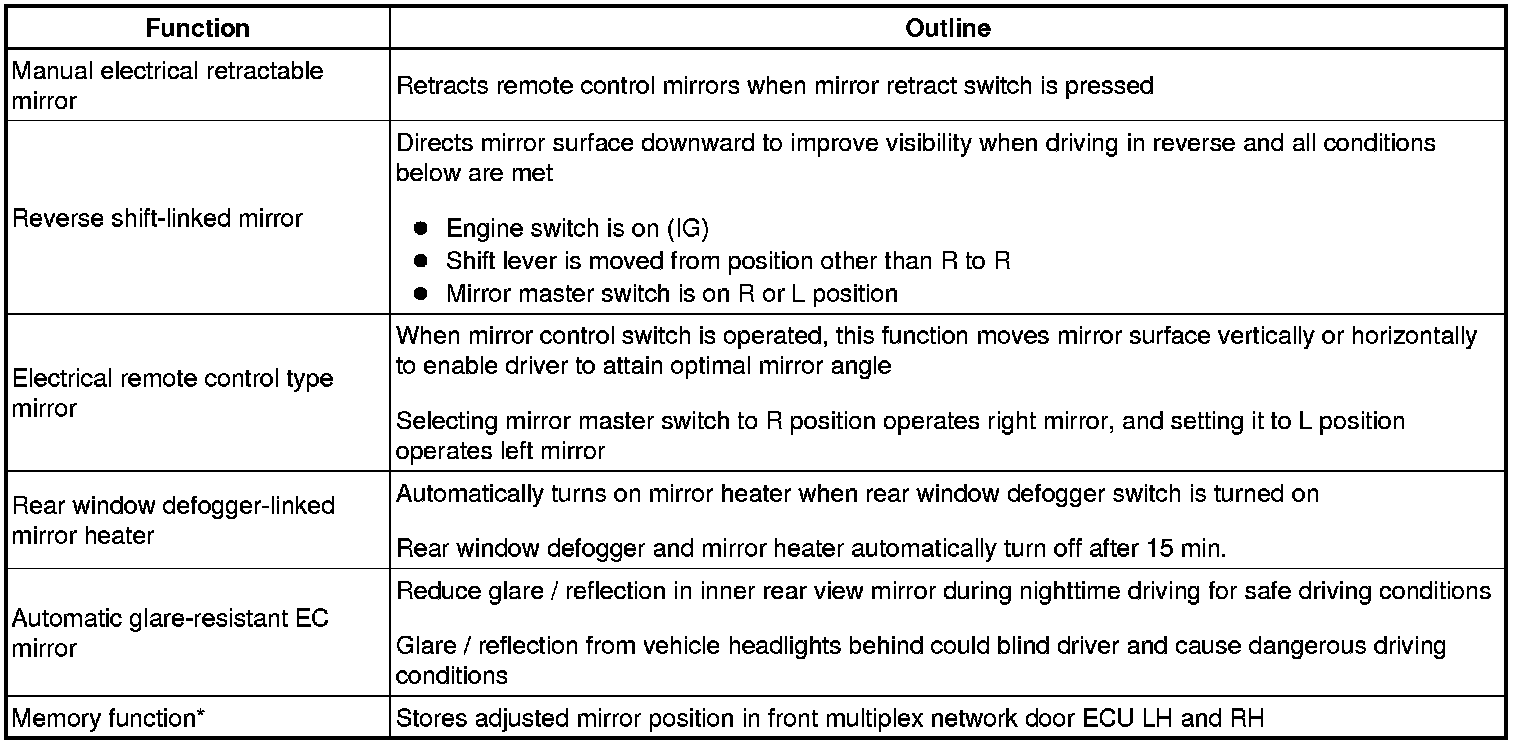

3. SYSTEM OPERATION
The remote control mirror has the following features:





- *: w/ Seat position memory
