Driver Side Door Entry Lock and Unlock Functions do not Operate
DOOR LOCK: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: Driver Side Door Entry Lock and Unlock Functions do not Operate
Driver Side Door Entry Lock and Unlock Functions do not Operate
DESCRIPTION
Both the entry lock and unlock functions do not operate when: 1) nothing is output from the door electrical key oscillator front LH, 2) the smart access system with push-button start is disabled through customization, or 3) the entire power door lock control system is malfunctioning.

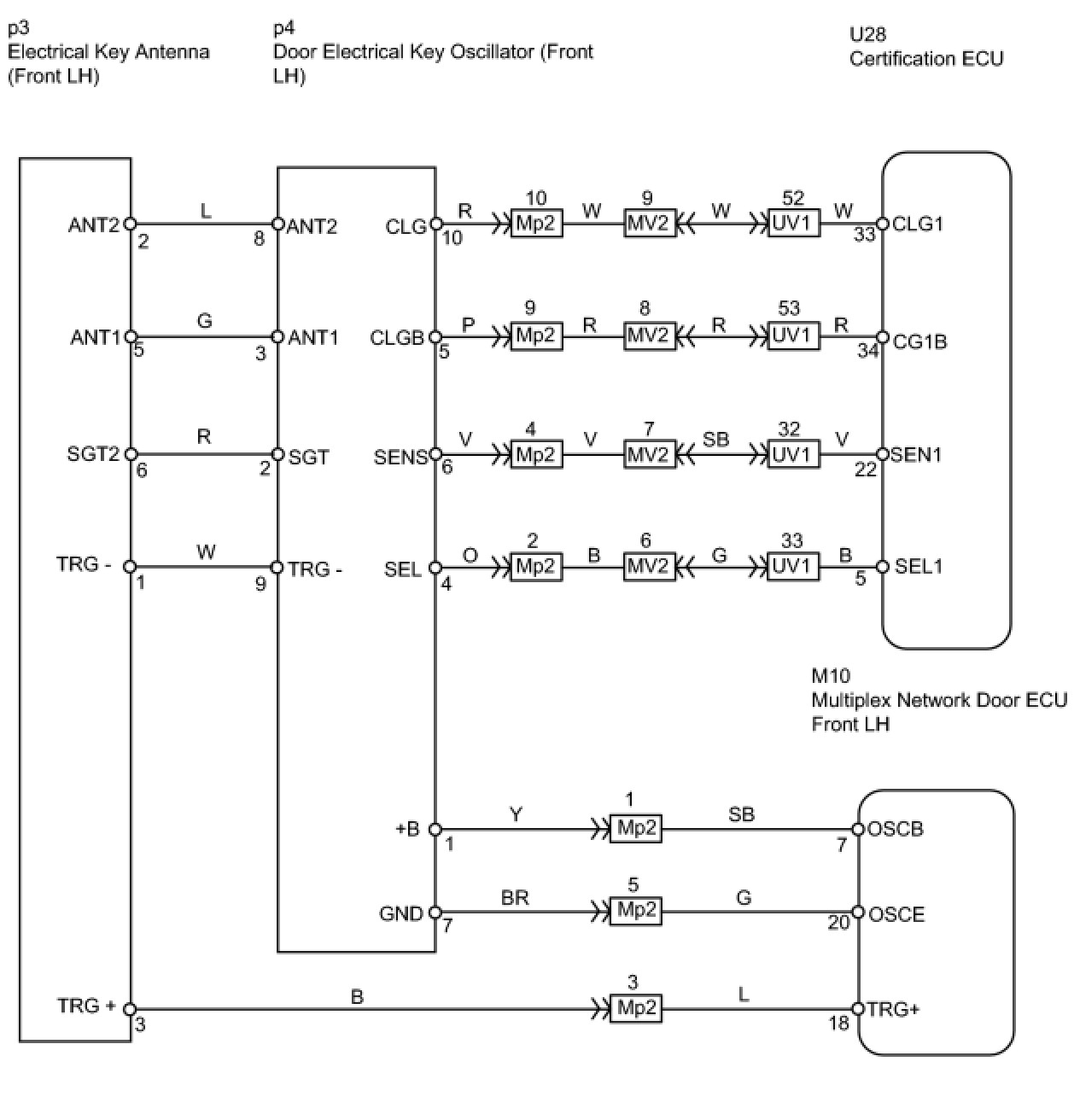

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. CHECK MANUAL DOOR LOCK AND UNLOCK OPERATION
(a) Check that the manual door lock and unlock function operates normally.
OK:
Manual door lock and unlock function operates normally.
NG -- GO TO POWER DOOR LOCK CONTROL SYSTEM
OK -- Continue to next step.
2. PERFORM ACTIVE TEST USING TECHSTREAM (DOOR ELECTRICAL KEY OSCILLATOR FRONT LH)
(a) Select the ACTIVE TEST, use the Techstream to generate a control command, and then check that the oscillator operates.
Certification ECU:
OK:
When key is brought close to door oscillator that is OFF, indicator light on key illuminates.
OK -- REPLACE CERTIFICATION ECU ASSEMBLY
NG -- Continue to next step.
3. CHECK WIRE HARNESS (ECU - OSCILLATOR)

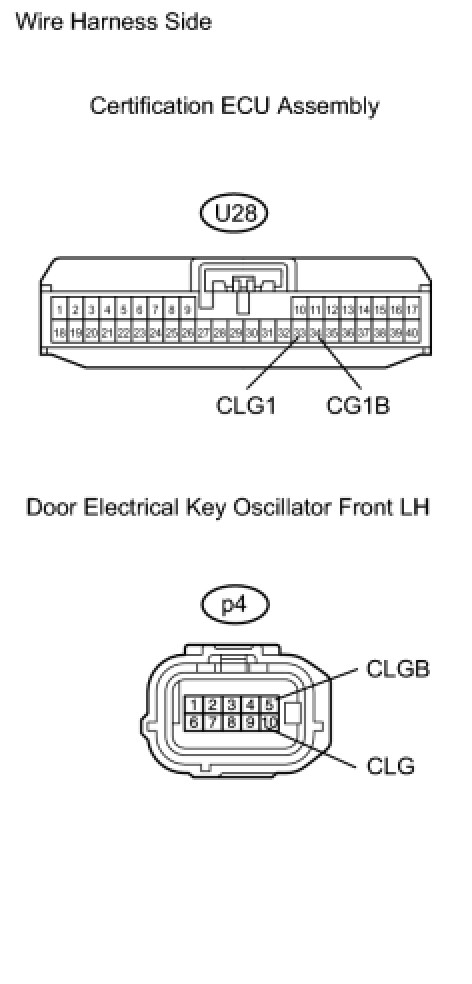

(a) Disconnect the U28 ECU connector.
(b) Disconnect the p4 oscillator connector.
(c) Measure the resistance of the wire harness side connector.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
4. CHECK WIRE HARNESS (OSCILLATOR - ANTENNA)

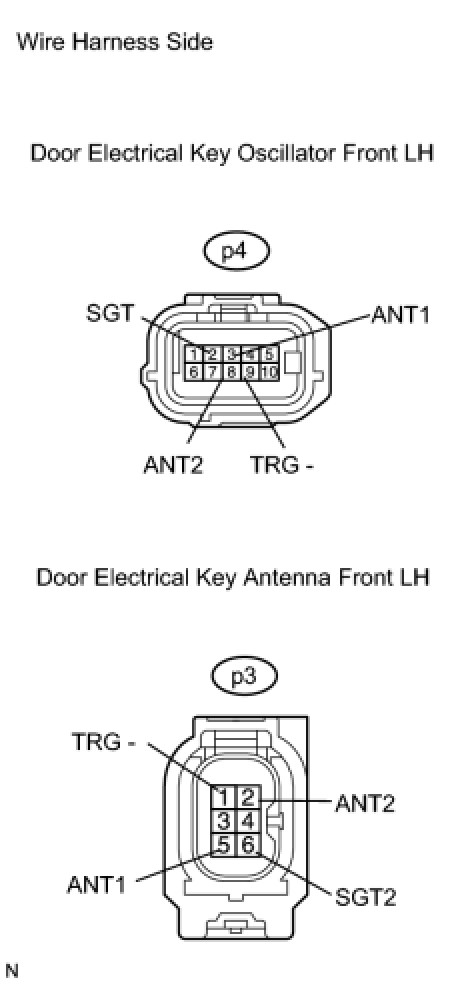

(a) Disconnect the p4 oscillator connector.
(b) Disconnect the p3 antenna connector.
(c) Measure the resistance of the wire harness side connector.

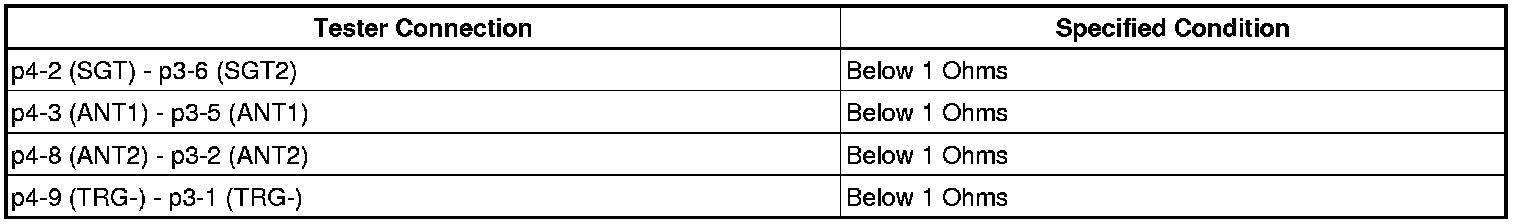

Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
5. CHECK WIRE HARNESS (OSCILLATOR - ECU)

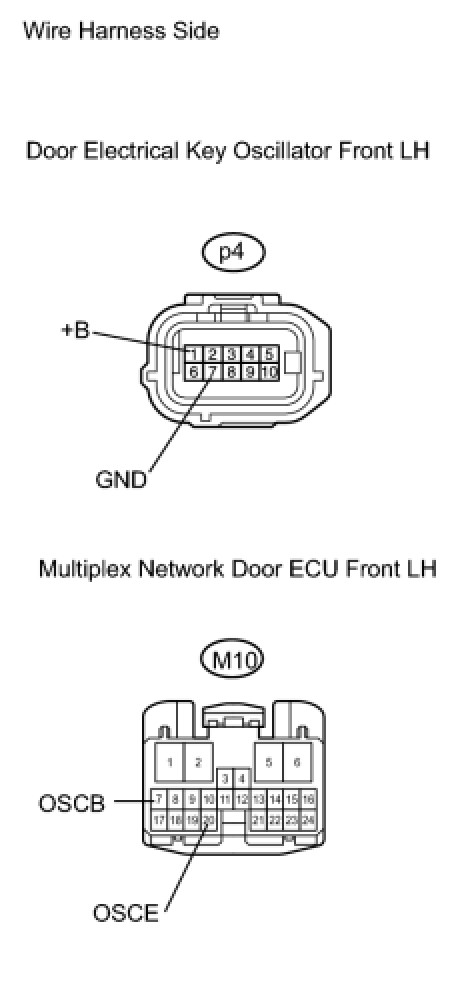

(a) Disconnect the p4 oscillator connector.

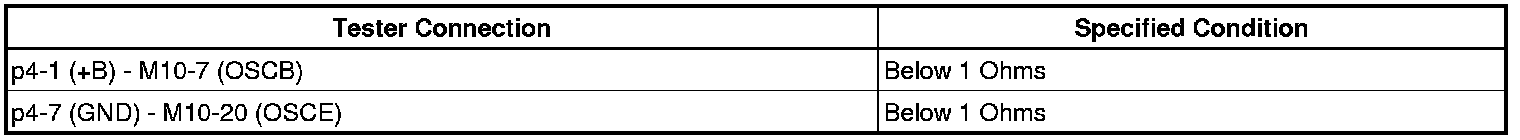

(b) Disconnect the M10 ECU connector.
(c) Measure the resistance of the wire harness side connector.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
6. CHECK WIRE HARNESS (ANTENNA - ECU)

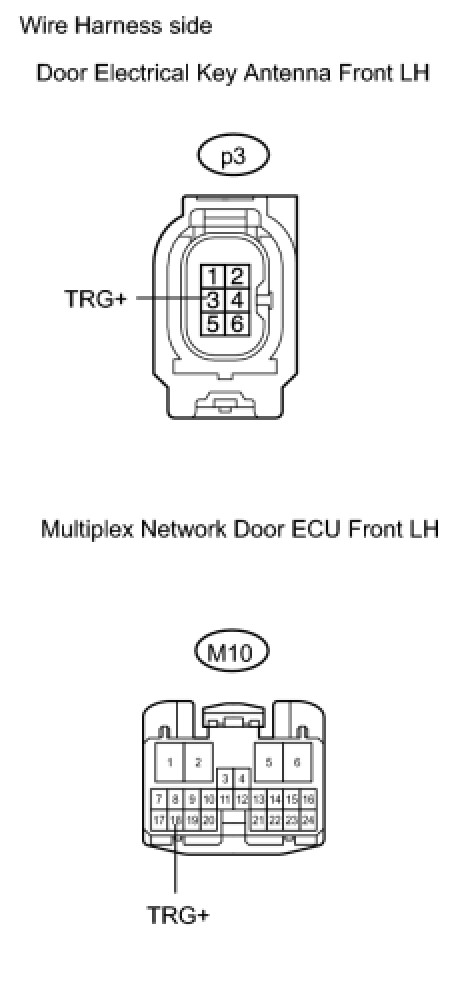

(a) Disconnect the p3 oscillator connector.
(b) Disconnect the M10 ECU connector.
(c) Measure the resistance of the wire harness side connector.
Standard resistance:
NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
7. CHECK OPERATION OF ELECTRICAL KEY ANTENNA FRONT LH
(a) After replacing the electrical key antenna front LH with a normal one, check that the entry lock and unlock functions operate normally.
OK:
Entry lock and unlock functions operate normally.
OK -- END (ELECTRICAL KEY ANTENNA FRONT LH IS DEFECTIVE)
NG -- Continue to next step.
8. CHECK OPERATION OF DOOR ELECTRICAL KEY OSCILLATOR FRONT LH
(a) After replacing the door electrical key oscillator front LH with a normal one, check that the entry lock and unlock functions operate normally.
OK:
Entry lock and unlock functions operate normally.
NG -- REPLACE CERTIFICATION ECU ASSEMBLY
OK -- END (DOOR ELECTRICAL KEY OSCILLATOR FRONT LH IS DEFECTIVE)
