Smart Access System With Push-Button Start

DOOR LOCK: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: DATA LIST / ACTIVE TEST

1. READ DATA LIST
HINT:
Using the Techstream's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG). When the engine cannot be turned on (IG) due to a malfunction or other problem, refer to "precautions when using the Techstream" Smart Access System With Push-Button Start.
(c) Read the DATA LIST according to the display on the Techstream.

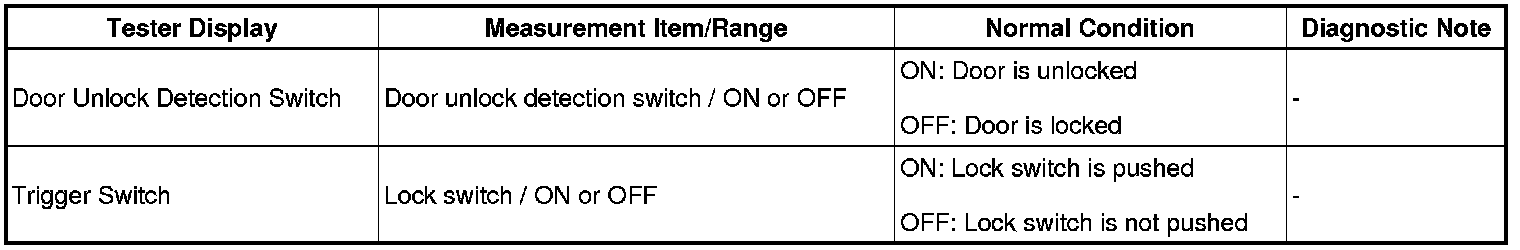

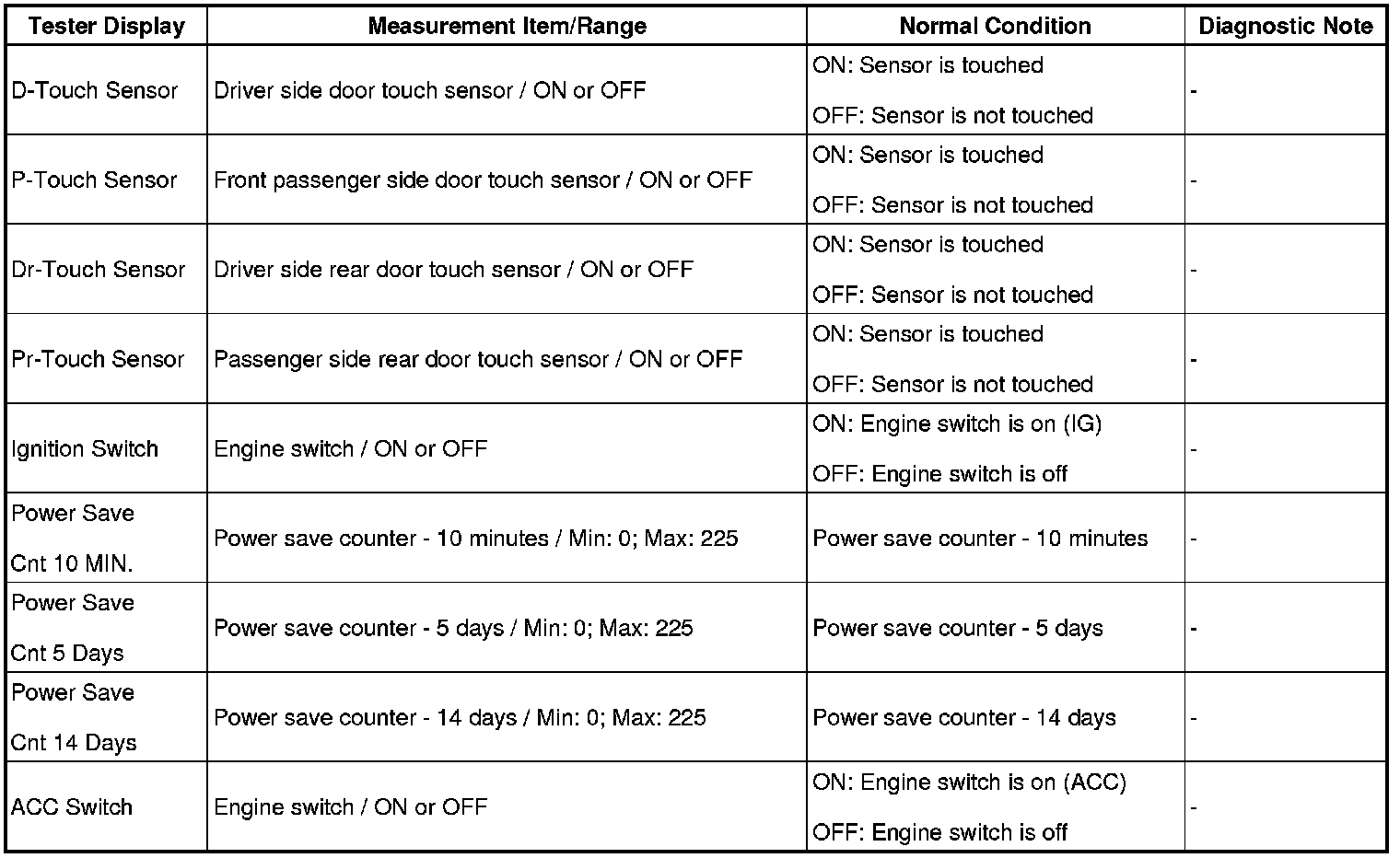

Certification ECU:

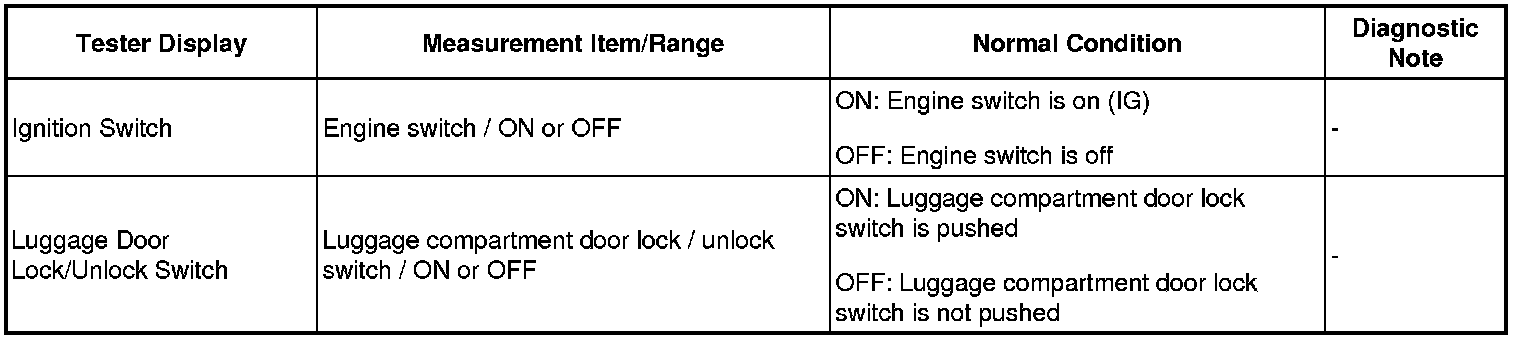

Multiplex Network Body ECU:

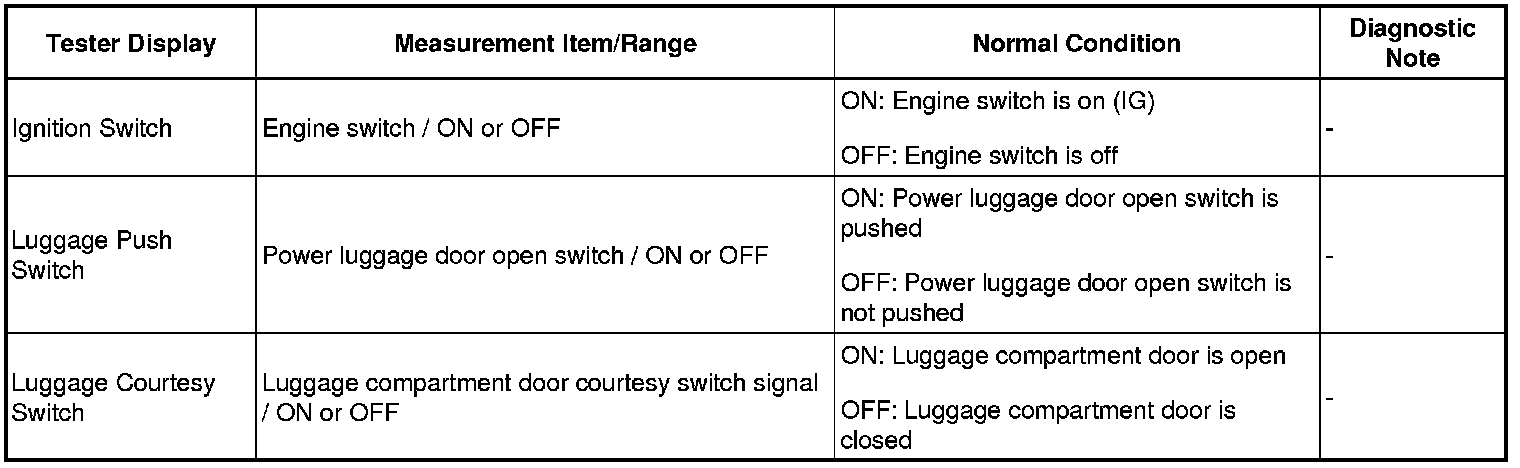

Multiplex Network Rear ECU:





Multiplex Network Master Switch Assembly:





Multiplex Network Door ECU Front RH:





Multiplex Network Door ECU rear LH:





Multiplex Network Door ECU rear RH:





2. PERFORM ACTIVE TEST
HINT:
Performing the Techstream's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Perform the ACTIVE TEST according to the display on the Techstream.

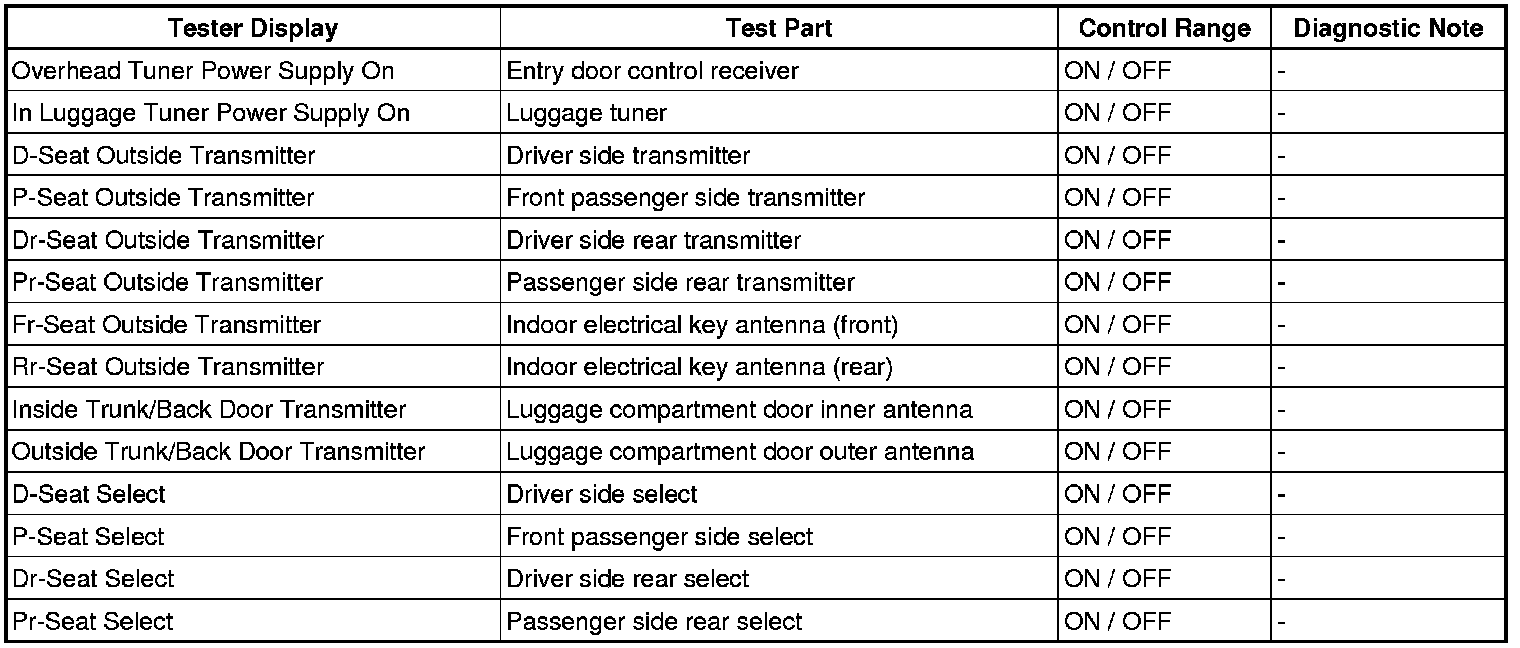

Certification ECU:

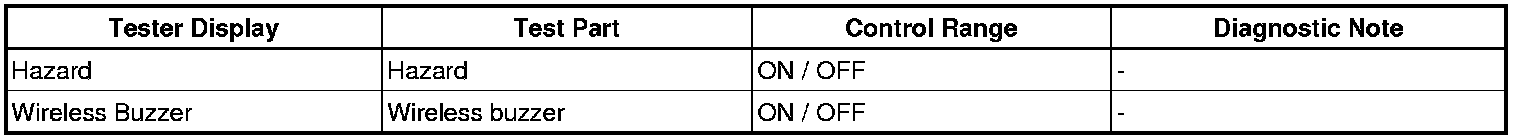

Multiplex Network Body ECU:





Meter ECU:
