Power Door Lock Control System

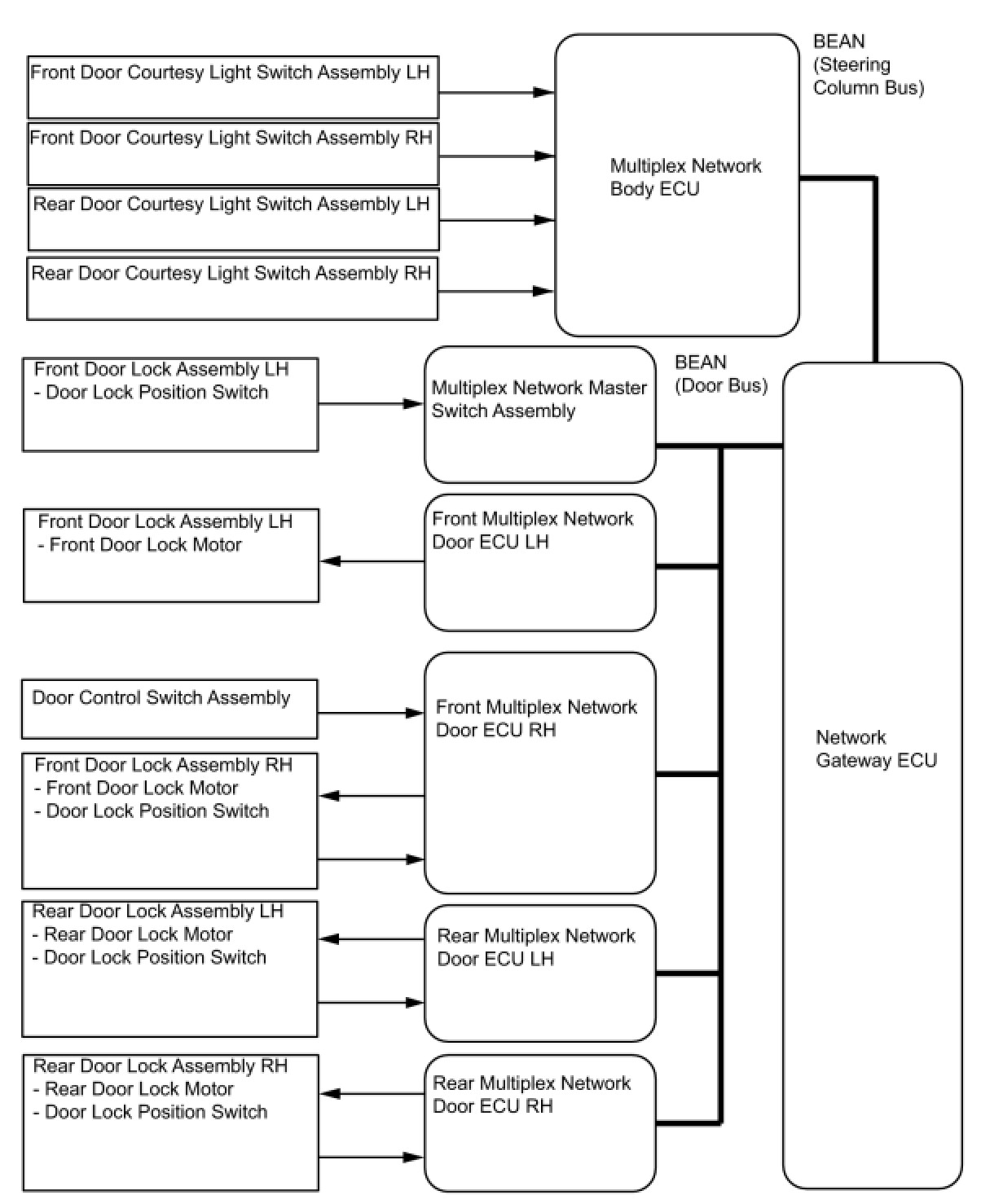

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM

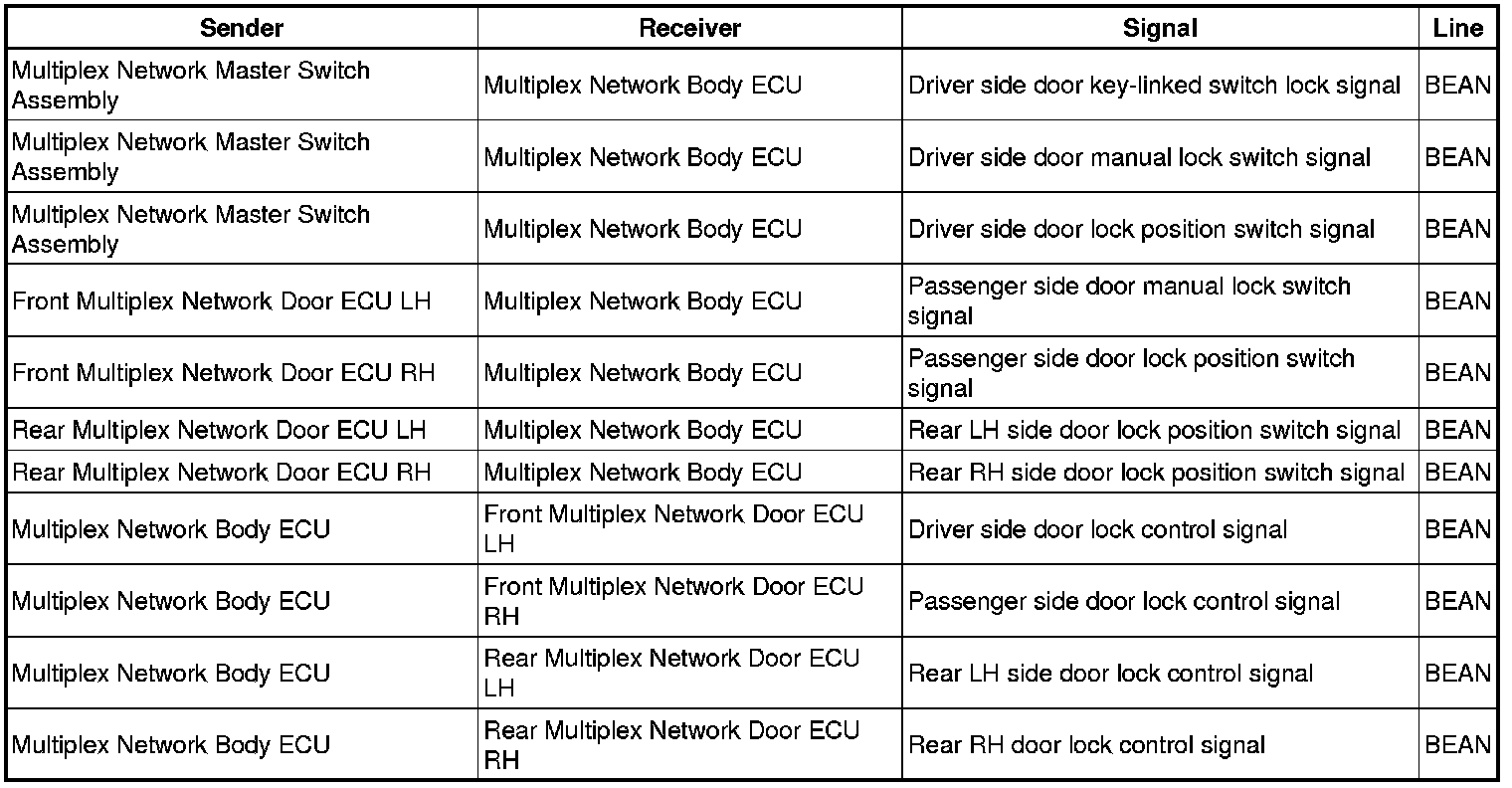

Communication table:





DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER DOOR LOCK CONTROL SYSTEM DESCRIPTION
(a) The power door lock system locks / unlocks all doors.
- The door control switch of the multiplex network master switch and the driver door key cylinder use the BEAN line to send lock / unlock request signals through the multiplex network master switch to the multiplex network body ECU.
- The door control switch on the passenger door uses the BEAN line to send lock / unlock request signals through the multiplex network body ECU to the cowl side junction block RH ECU.
- Upon receiving request signals, the multiplex network body ECU sends these signals to the door ECUs on each door using the BEAN. The door ECUs then lock / unlock each door.

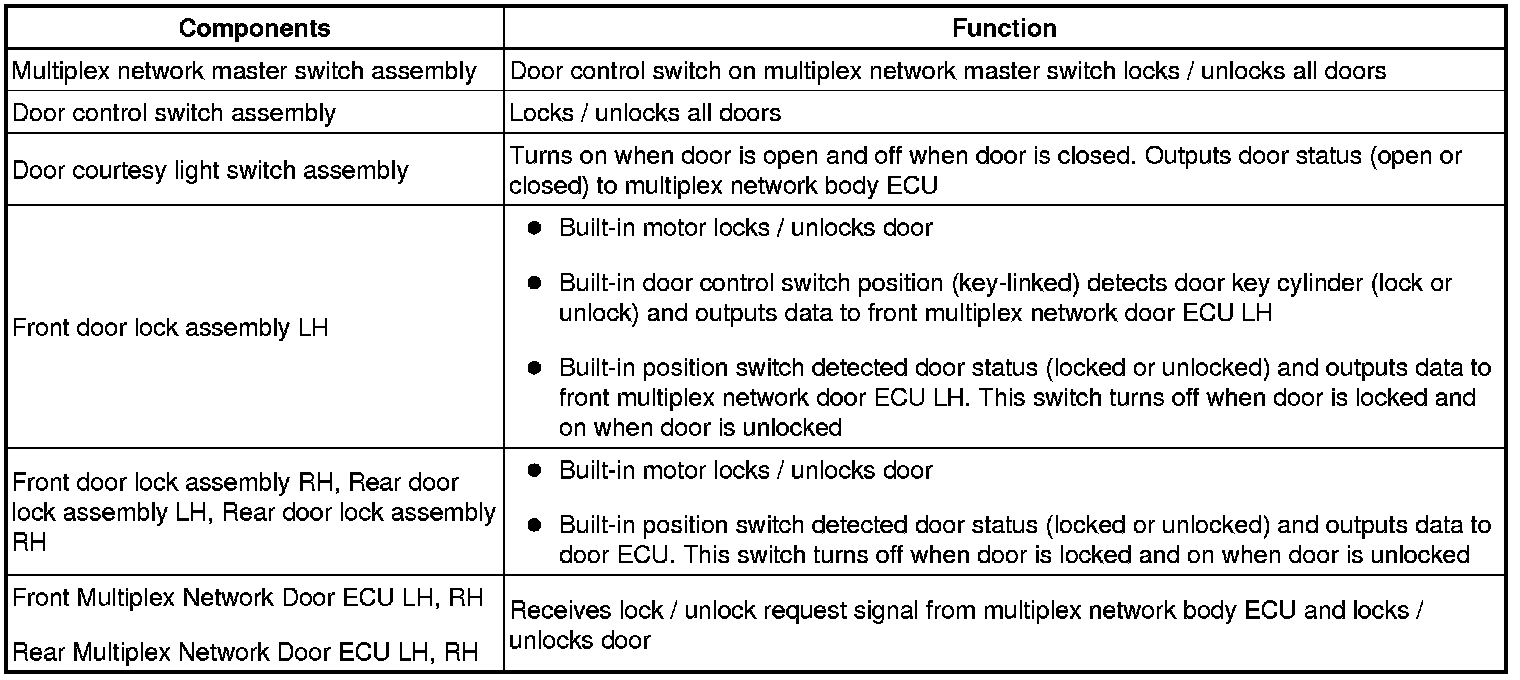

2. FUNCTION OF MAIN COMPONENT

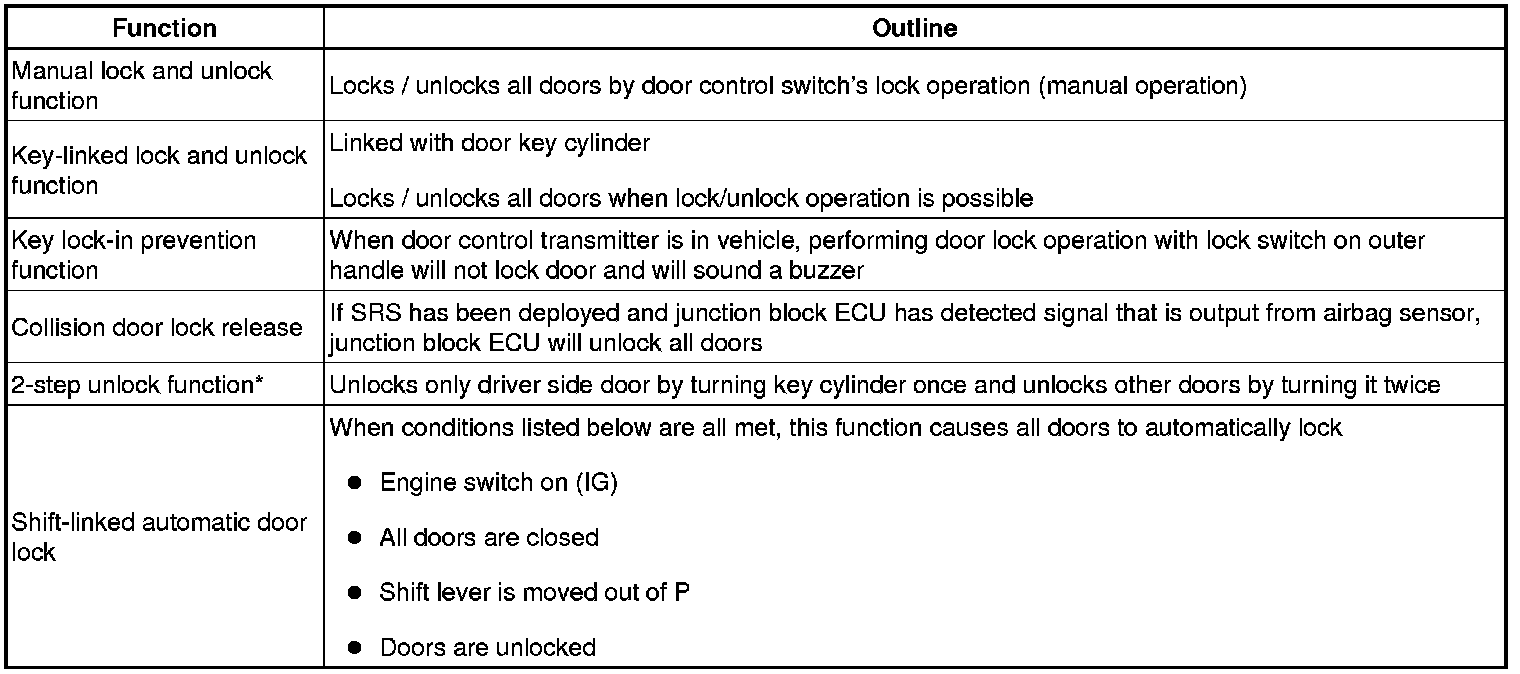

3. SYSTEM DESCRIPTION
The door control system has the following functions:





HINT:
*: Default is OFF. Power Door Lock Control System
