Reassembly

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD: REASSEMBLY

HINT:
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL ENGINE SWITCH
(a) Install the engine switch.
for 2GR-FE Installation
for 1UR-FSE Installation
2. INSTALL FRONT STEREO COMPONENT SPEAKER Installation

3. INSTALL FRONT NO. 2 SPEAKER LH Installation

4. INSTALL FRONT NO. 2 SPEAKER RH Installation

5. INSTALL NO. 1 SPEAKER HOLE COVER

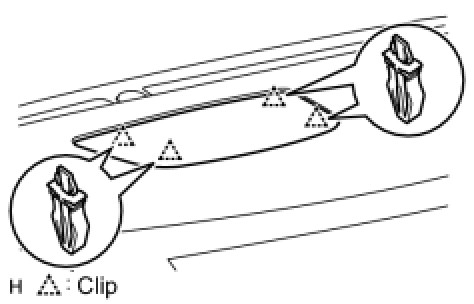

(a) Attach the 4 clips to install the speaker panel.
6. INSTALL INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY






(a) Attach the 2 claws and 2 clips to install the speaker panel.
7. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY






(a) Attach the 2 claws and 2 clips to install the speaker panel.
8. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

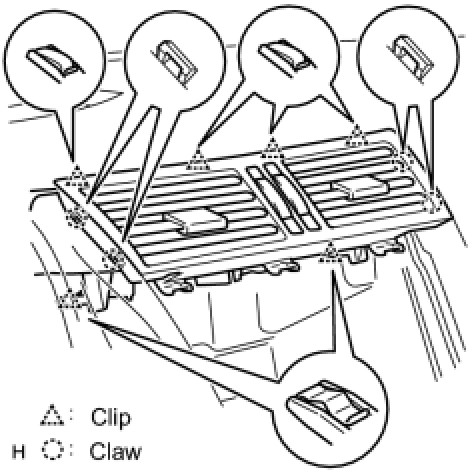

9. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY

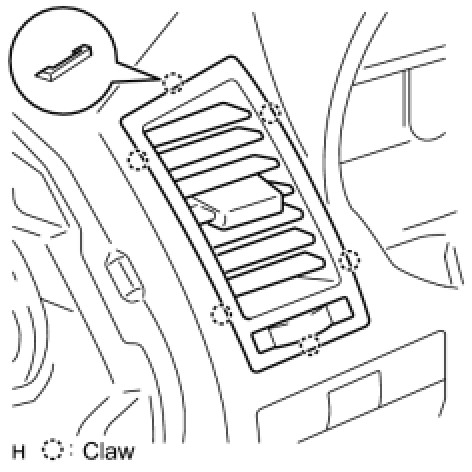

(a) Attach the 6 claws to install the register.

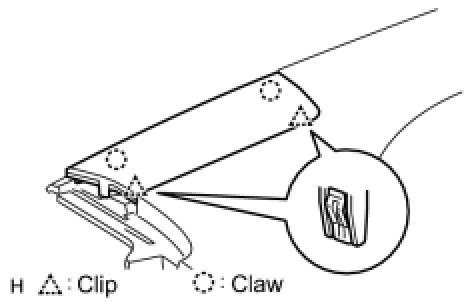

10. INSTALL INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY

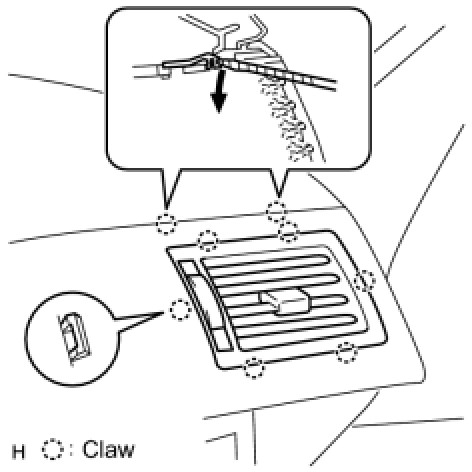

(a) Attach the 8 claws to install the register.

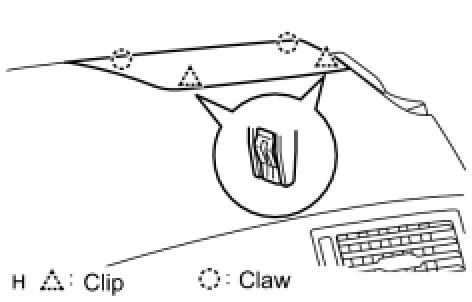

11. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY






(a) Attach the 6 clips and 4 claws to install the register.

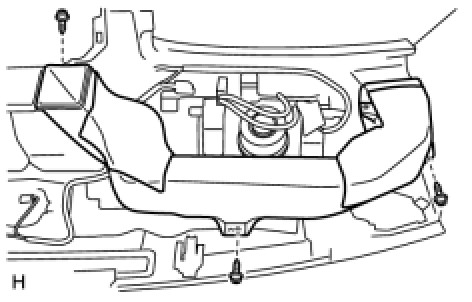

12. INSTALL NO. 2 HEATER TO REGISTER DUCT






(a) Install the duct with the 4 screws.

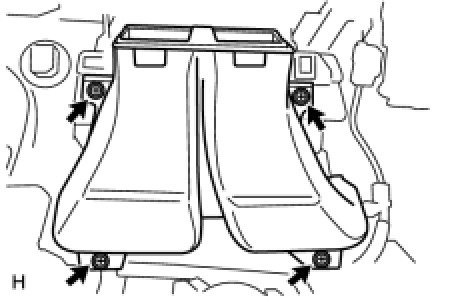

13. INSTALL NO. 1 HEATER TO REGISTER DUCT






(a) Install the duct with the 3 screws.
14. INSTALL NO. 3 HEATER TO REGISTER DUCT






(a) Install the duct with the 3 screws.

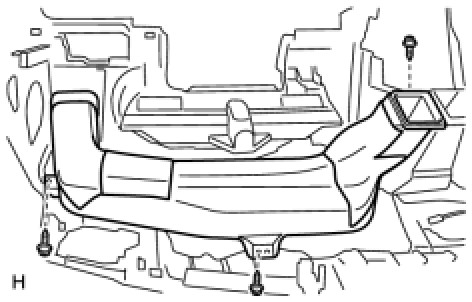

15. INSTALL DEFROSTER NOZZLE ASSEMBLY






(a) Install the duct with the 3 screws.

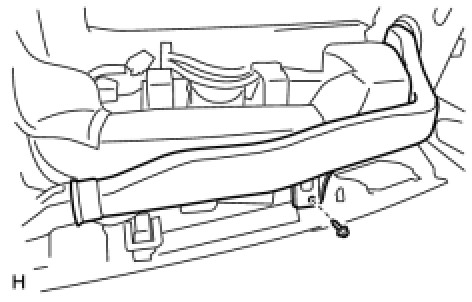

16. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT






(a) Install the duct with the screw.

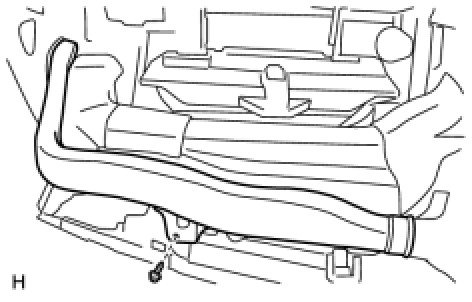

17. INSTALL SIDE DEFROSTER NOZZLE DUCT NO. 1






(a) Install the duct with the screw.
