GS 350 RWD V6-3.5L (2GR-FSE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>
Components
Components

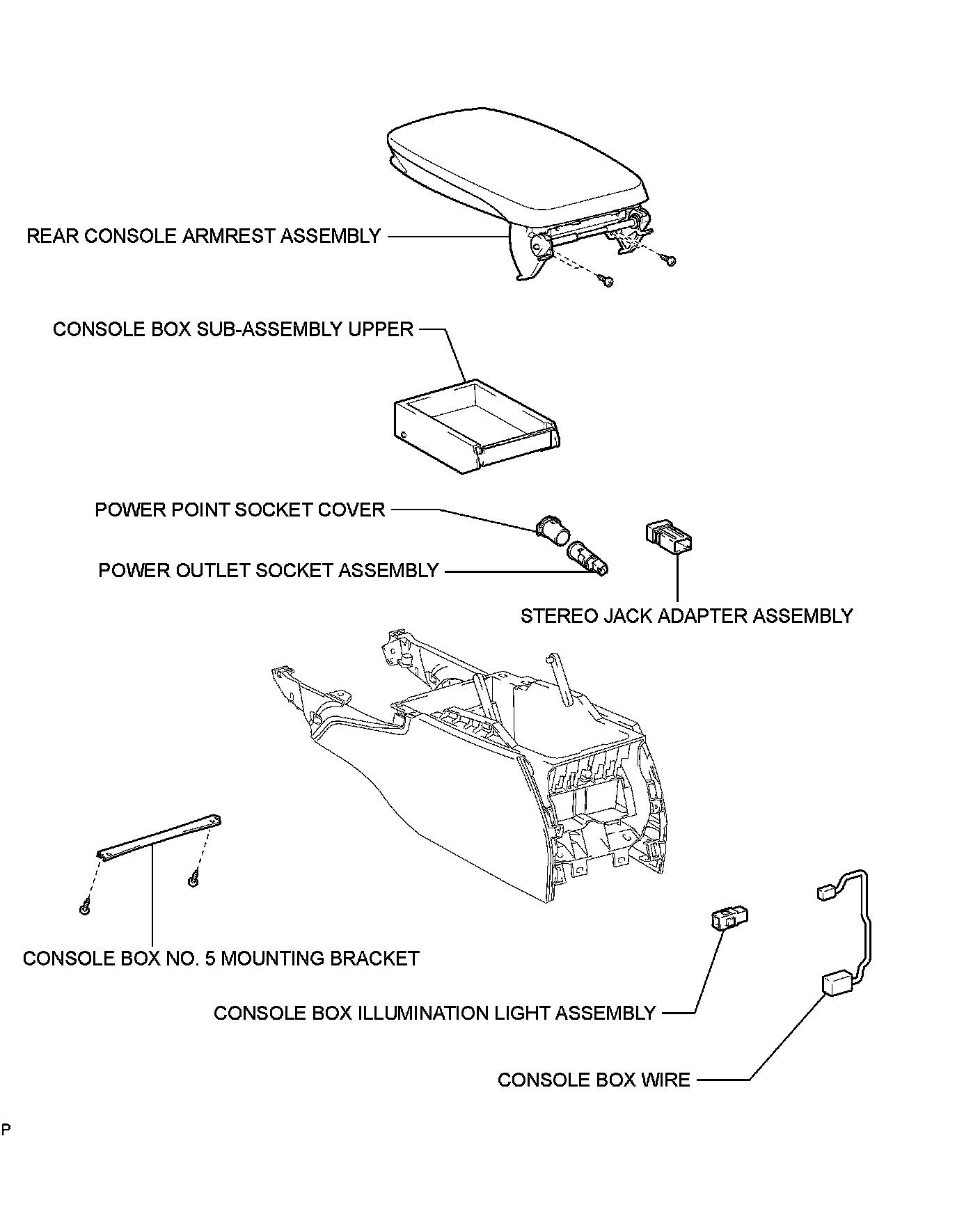

INSTRUMENT PANEL: REAR
CONSOLE
BOX: COMPONENTS
ILLUSTRATION
