Electrical Diagrams

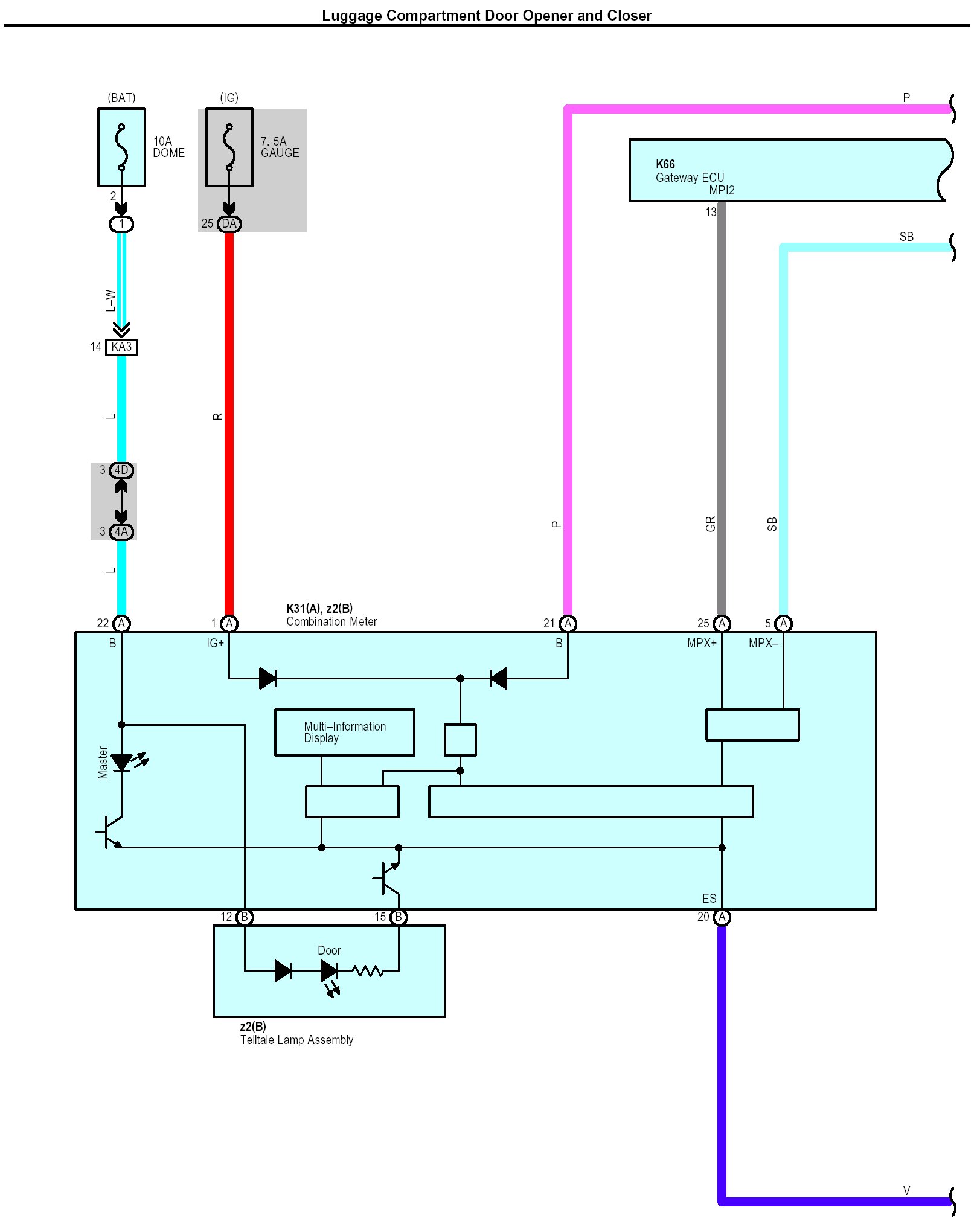

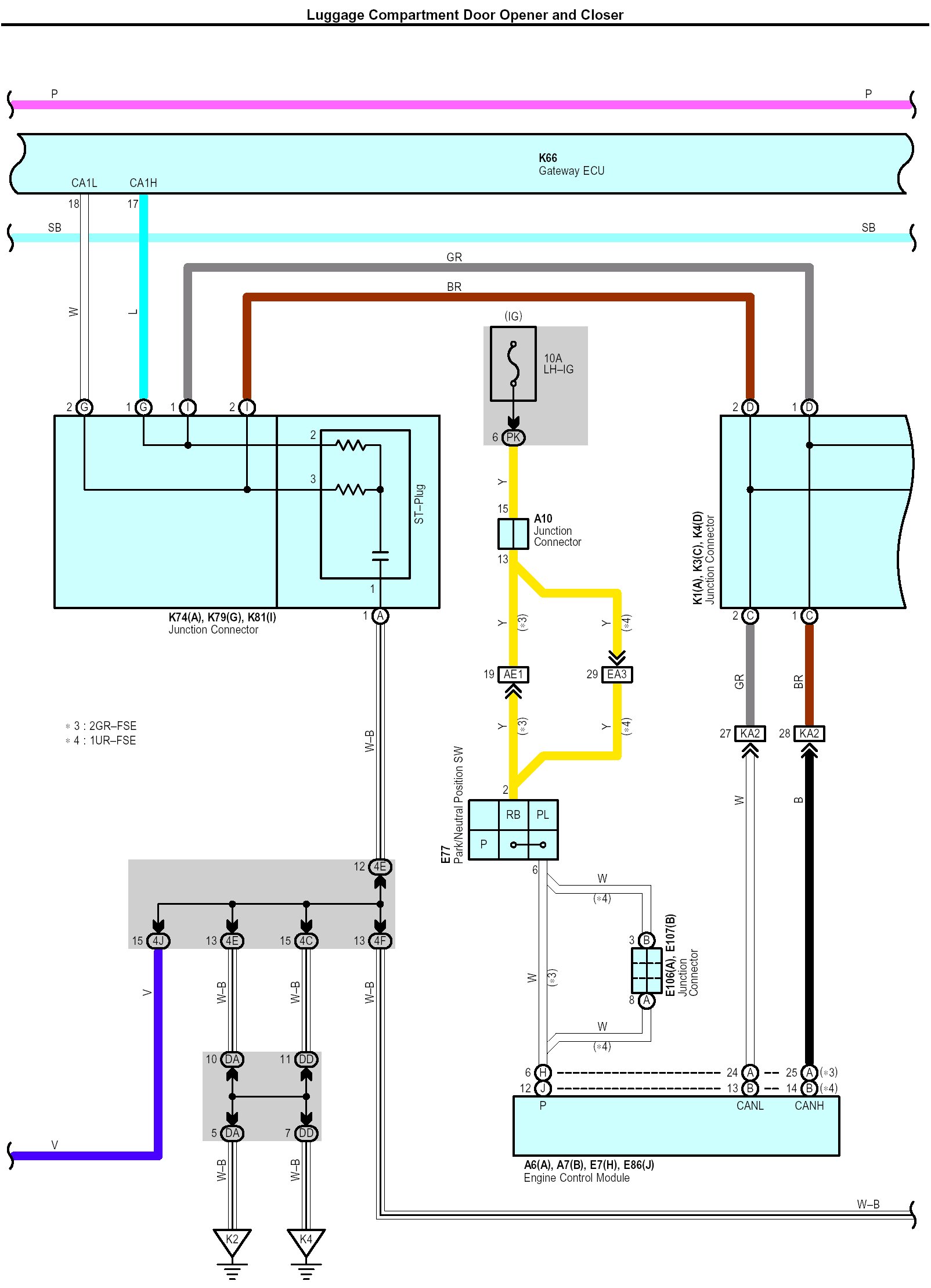

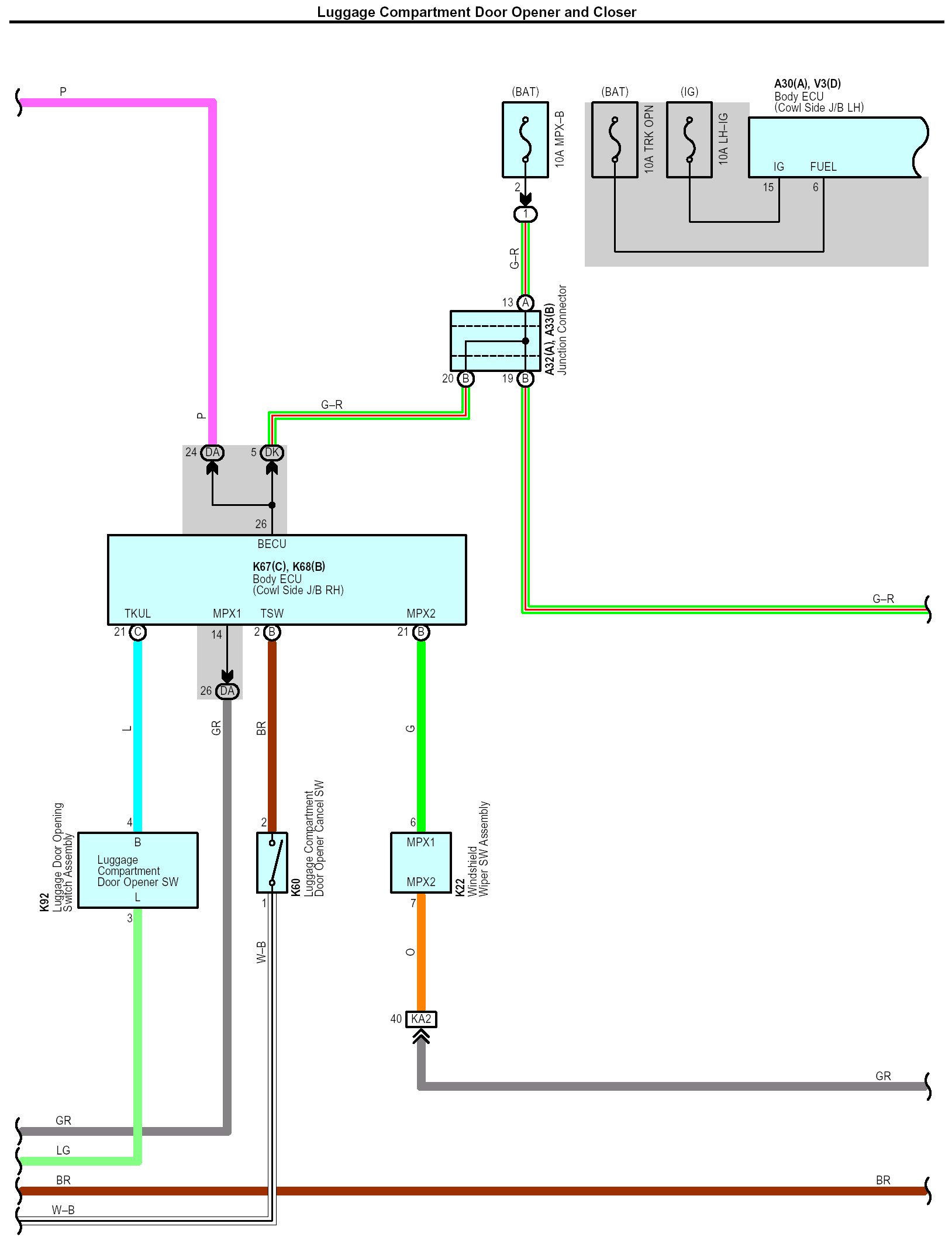

Luggage Compartment Door Opener and Closer Part 1:

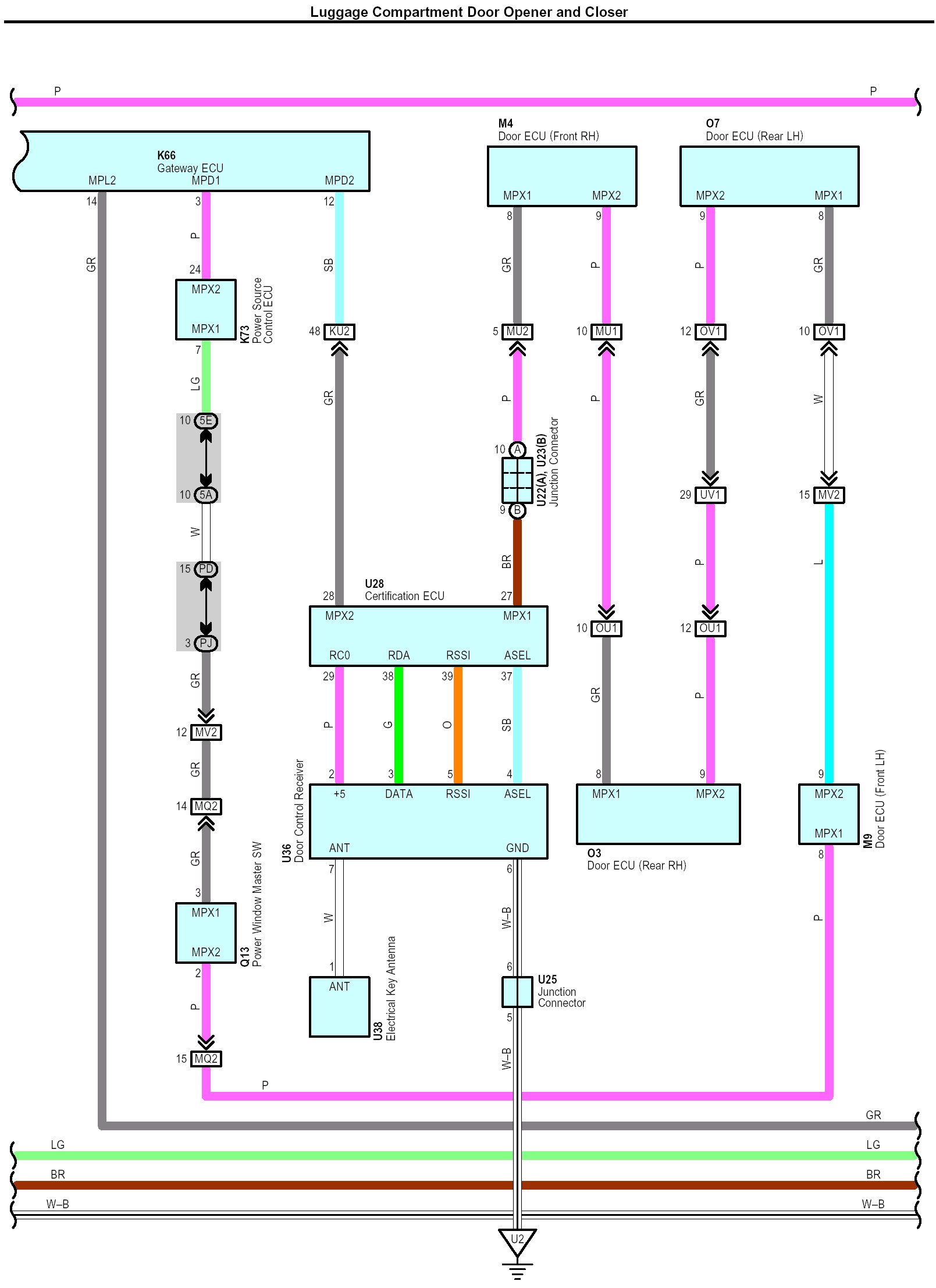

Luggage Compartment Door Opener and Closer Part 2:

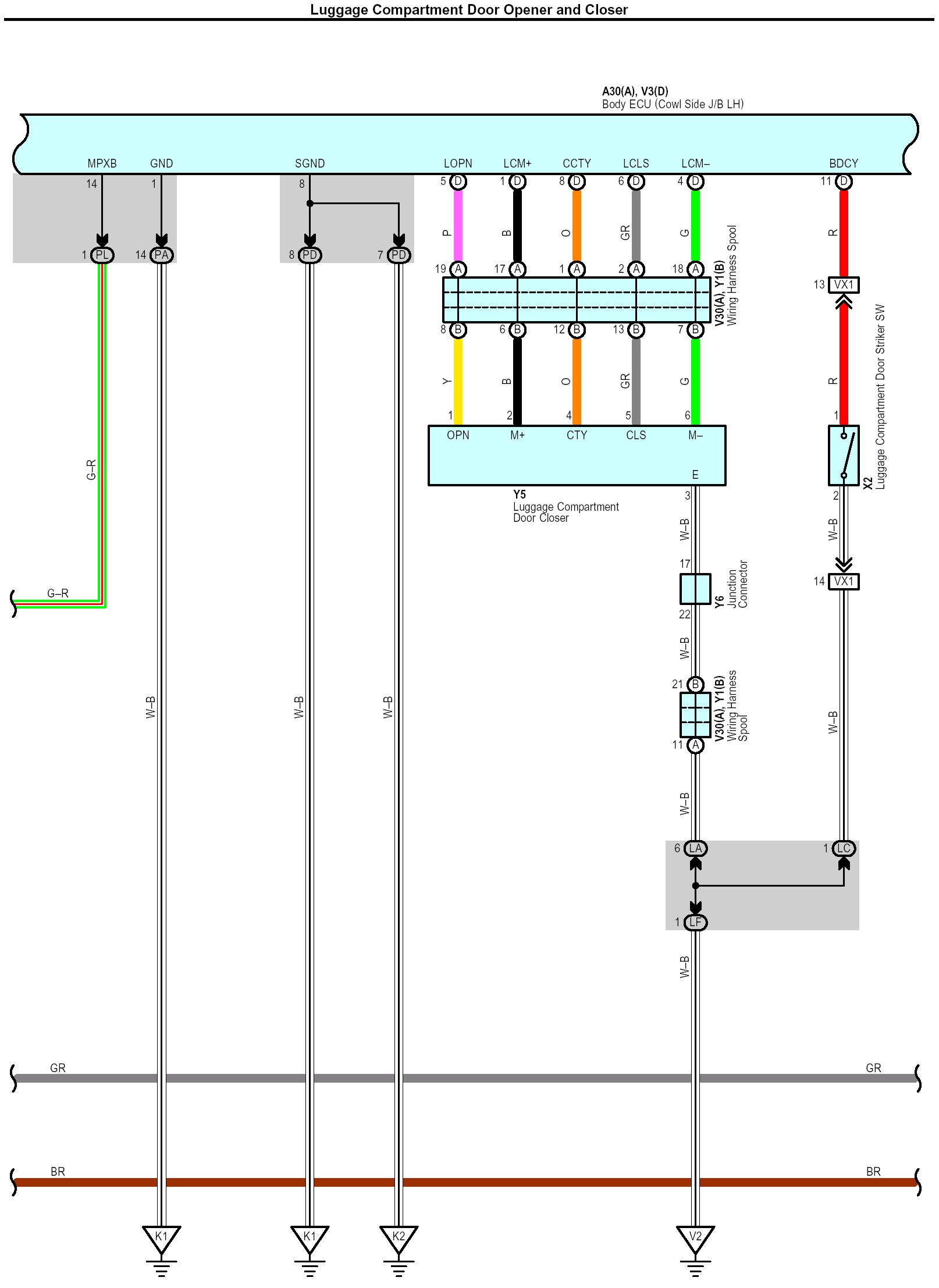

Luggage Compartment Door Opener and Closer Part 3:

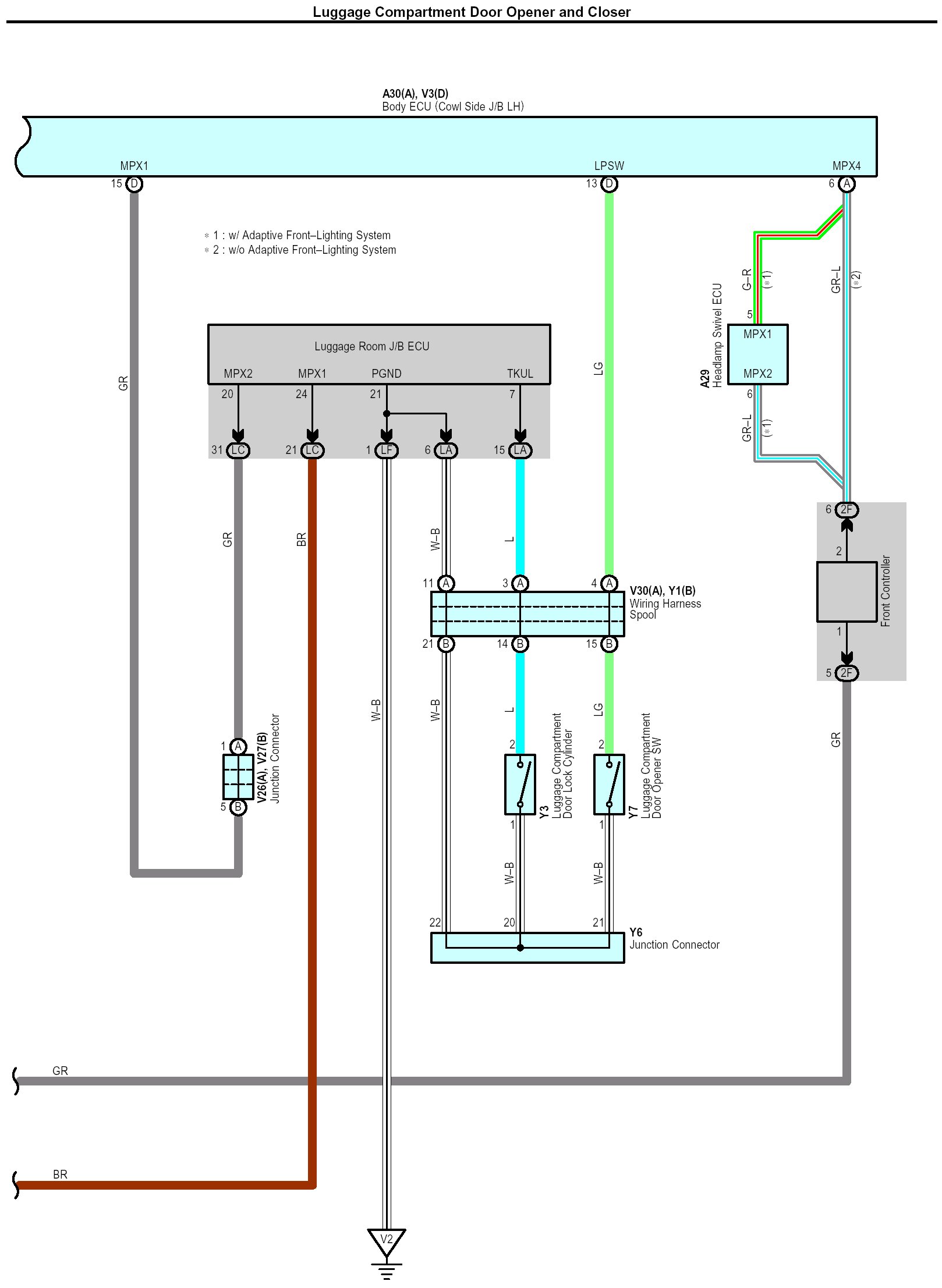

Luggage Compartment Door Opener and Closer Part 4:

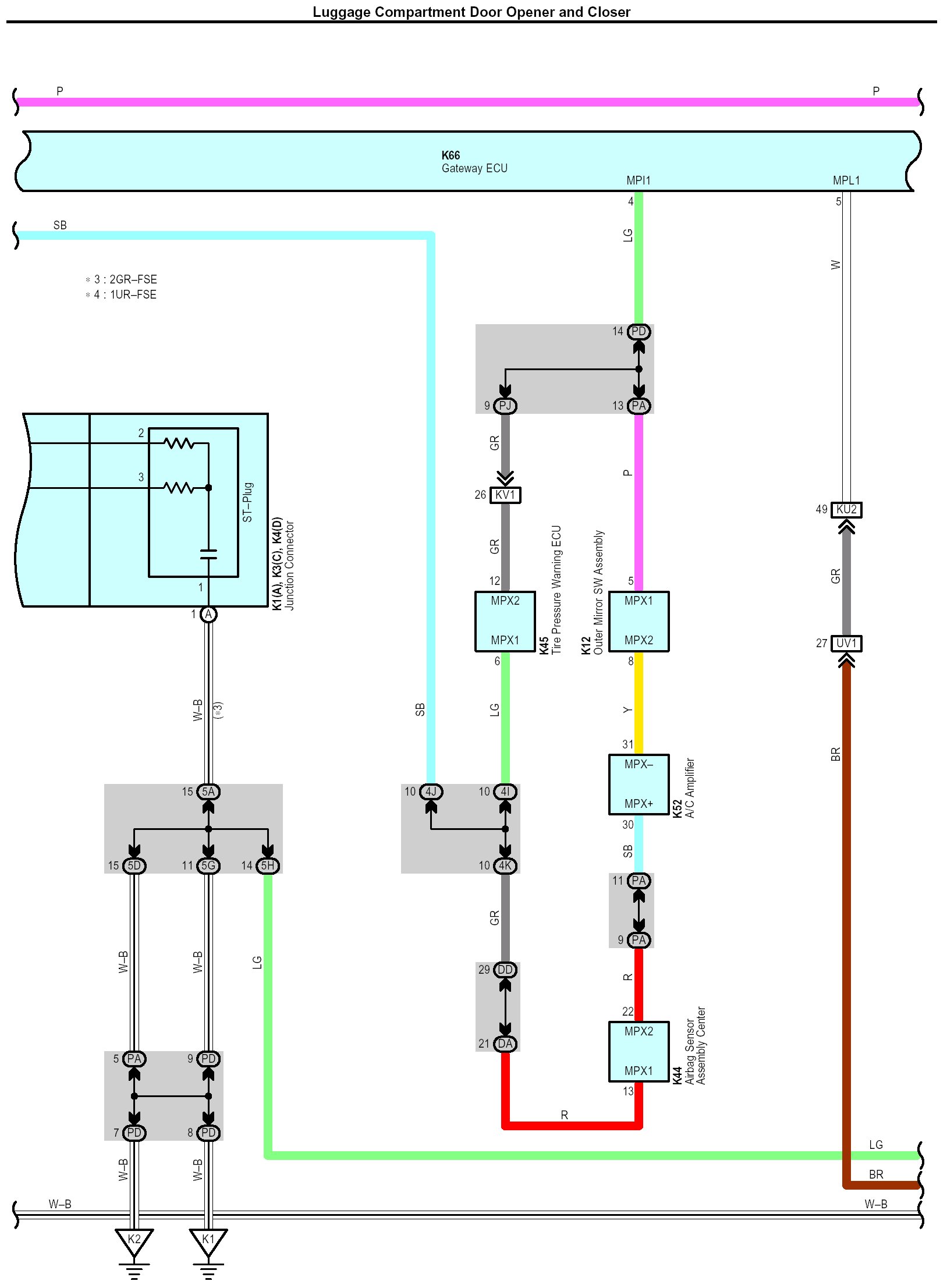

Luggage Compartment Door Opener and Closer Part 5:

Luggage Compartment Door Opener and Closer Part 6:

Luggage Compartment Door Opener and Closer Part 7:

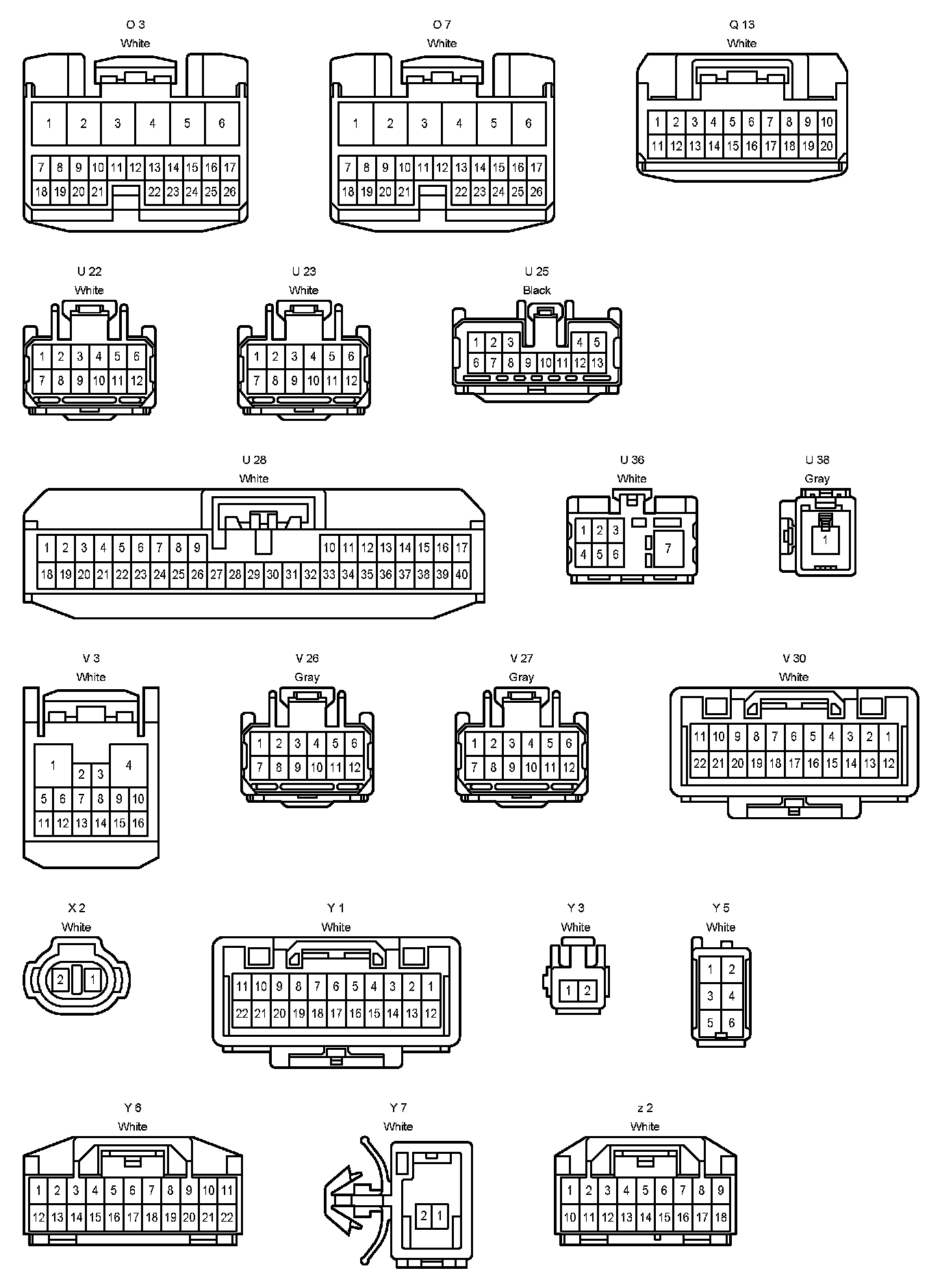

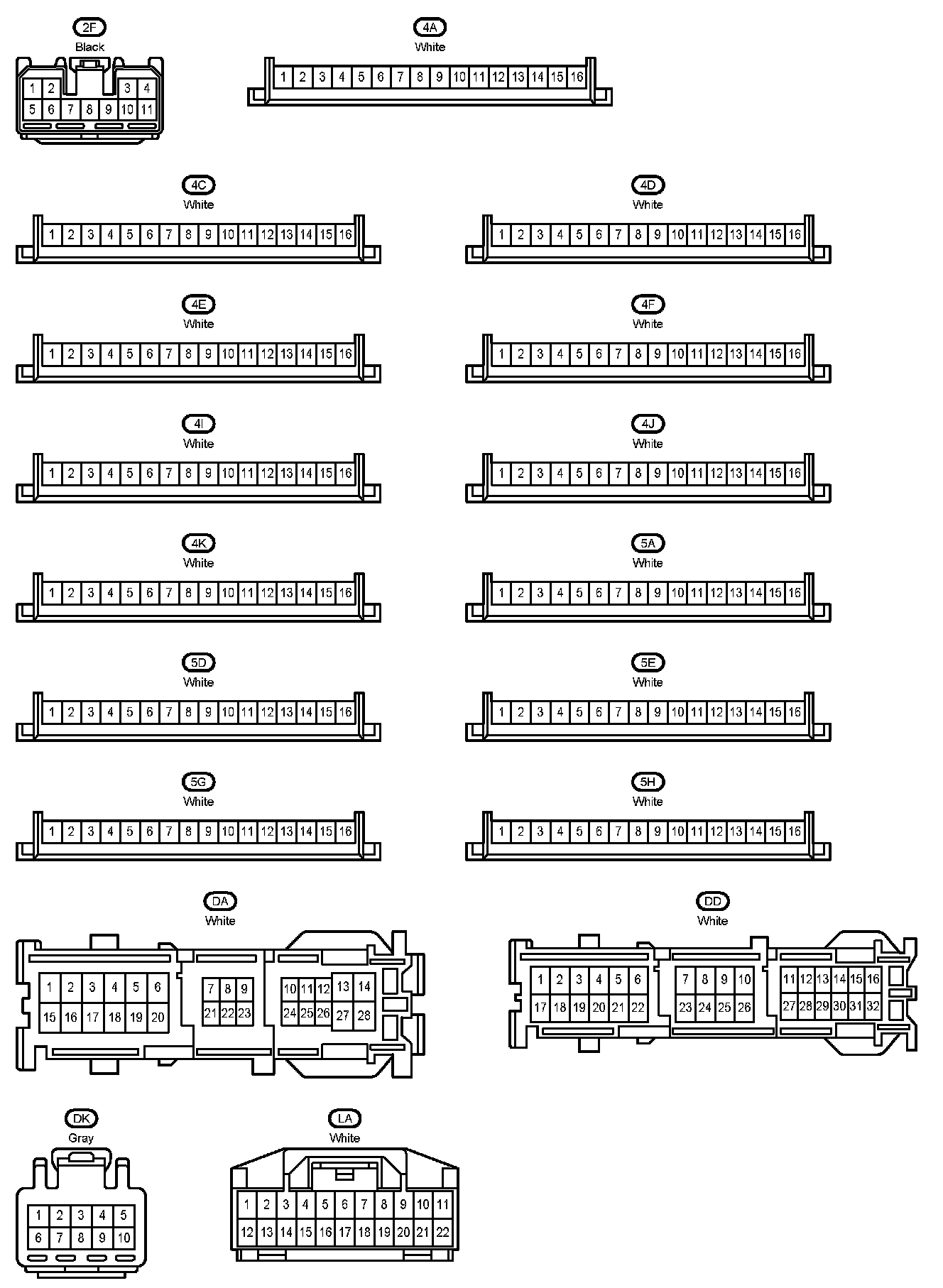

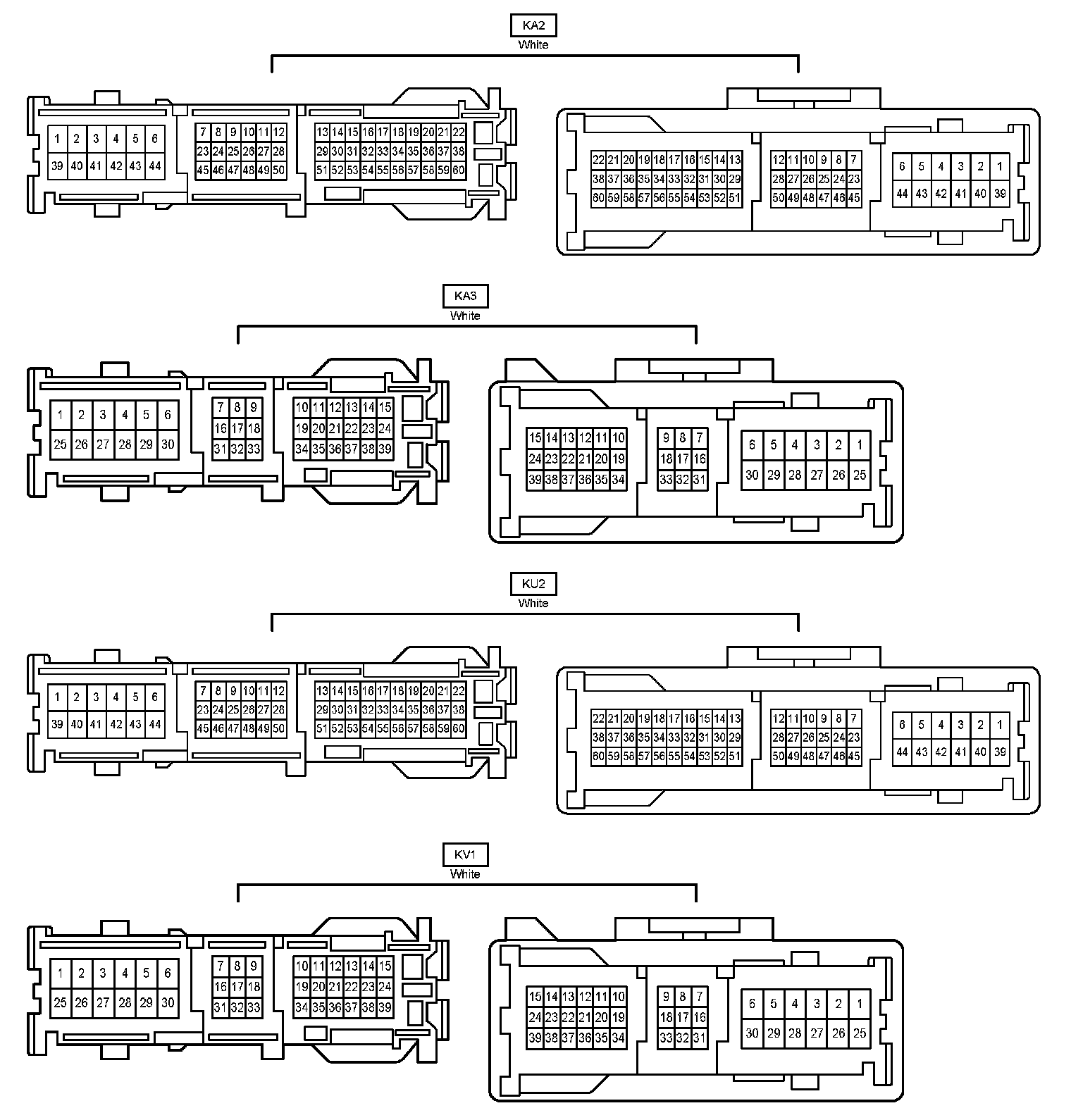

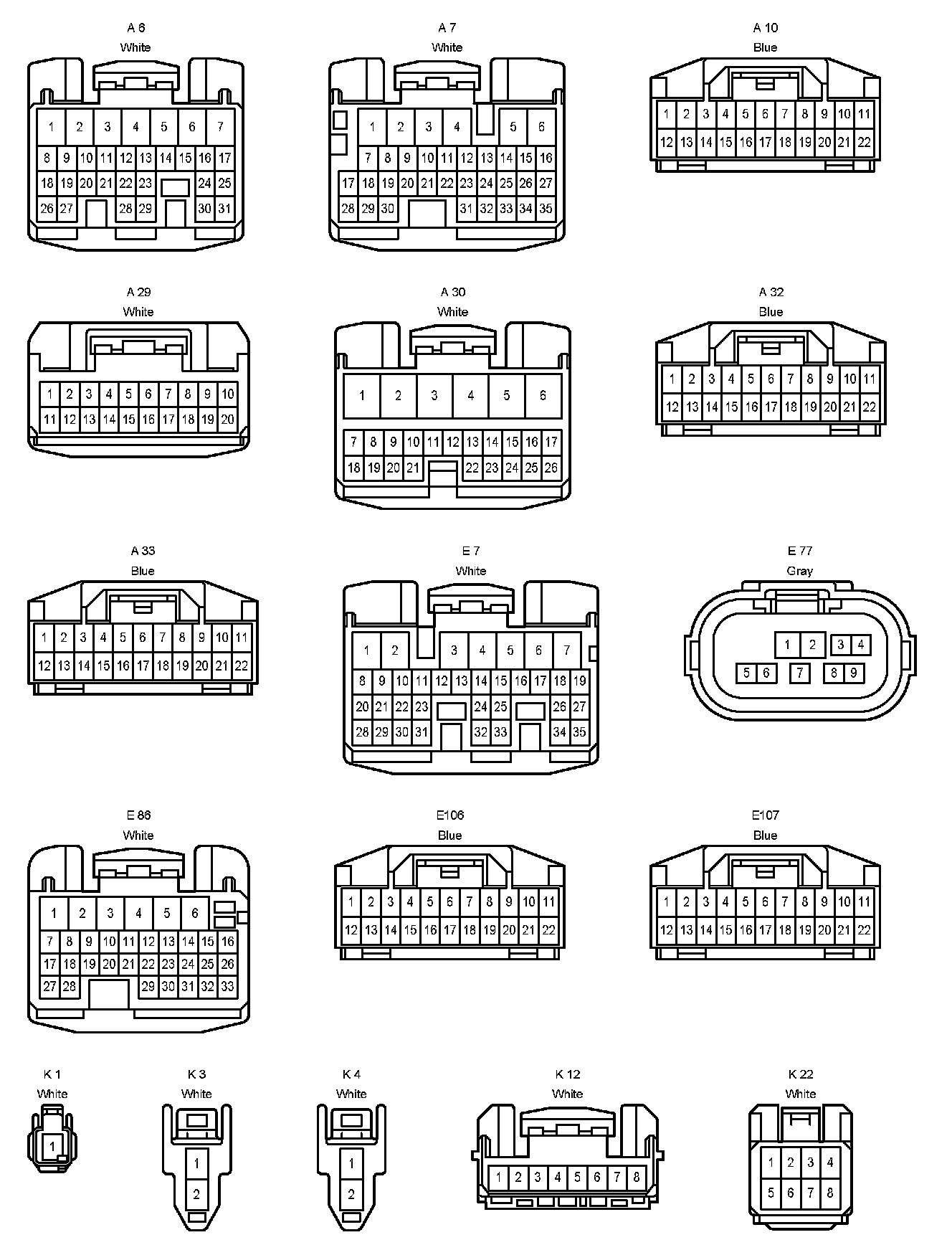

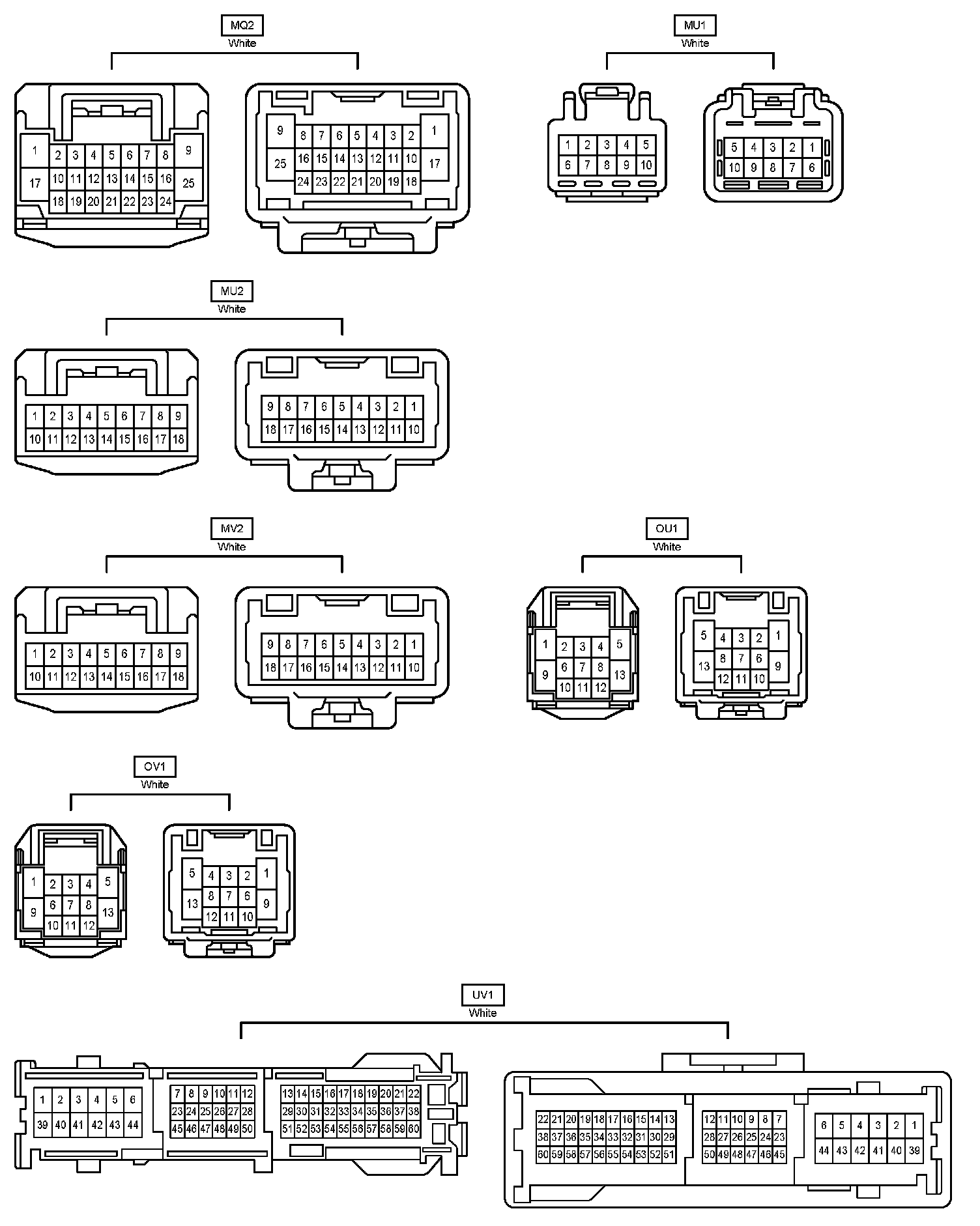

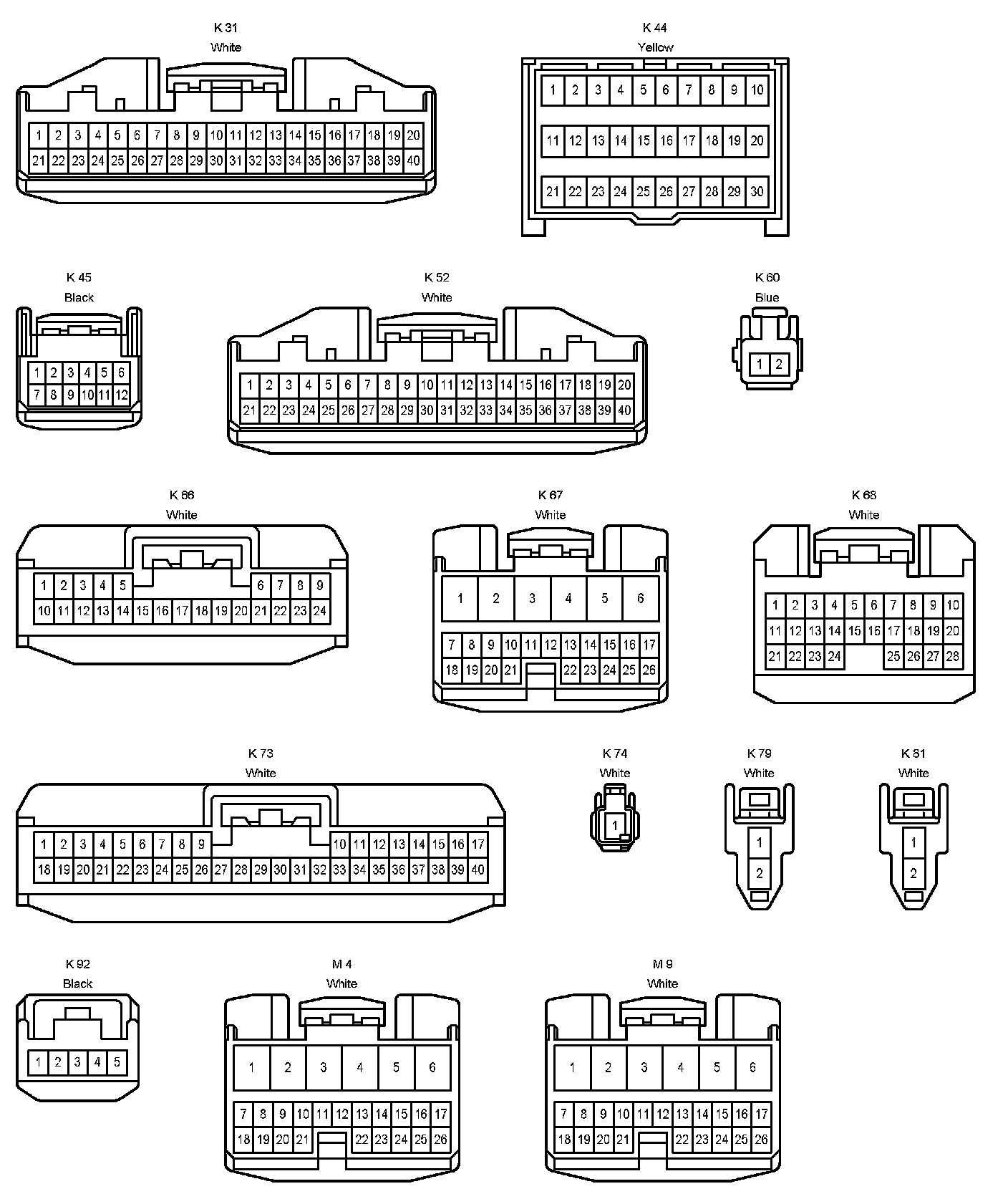

Connector Pin Outs Part 1:

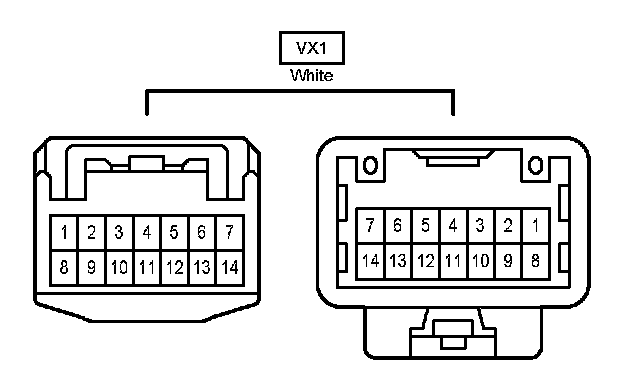

Connector Pin Outs Part 2:

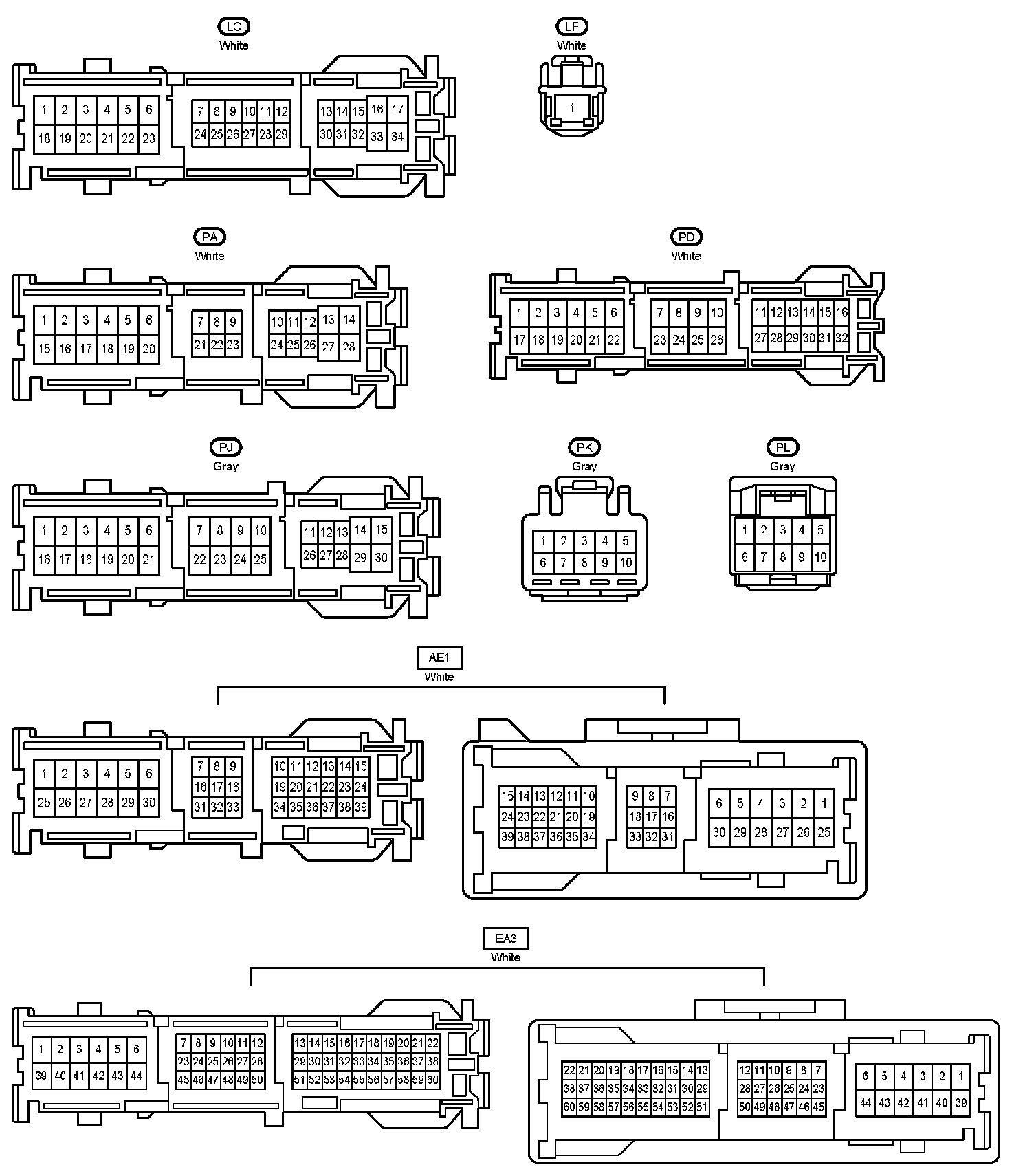

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
