Fuel Door: Description and Operation

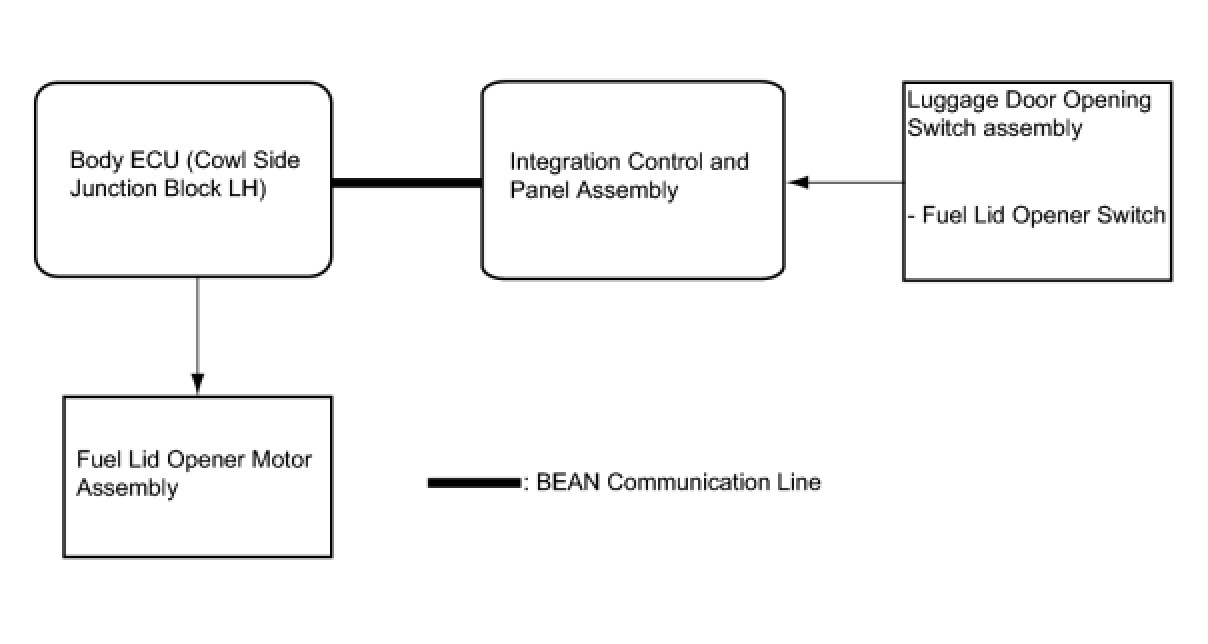

ENGINE HOOD / DOOR: FUEL LID OPENER SYSTEM: SYSTEM DIAGRAM





Communication Table:





ENGINE HOOD / DOOR: FUEL LID OPENER SYSTEM: SYSTEM DESCRIPTION

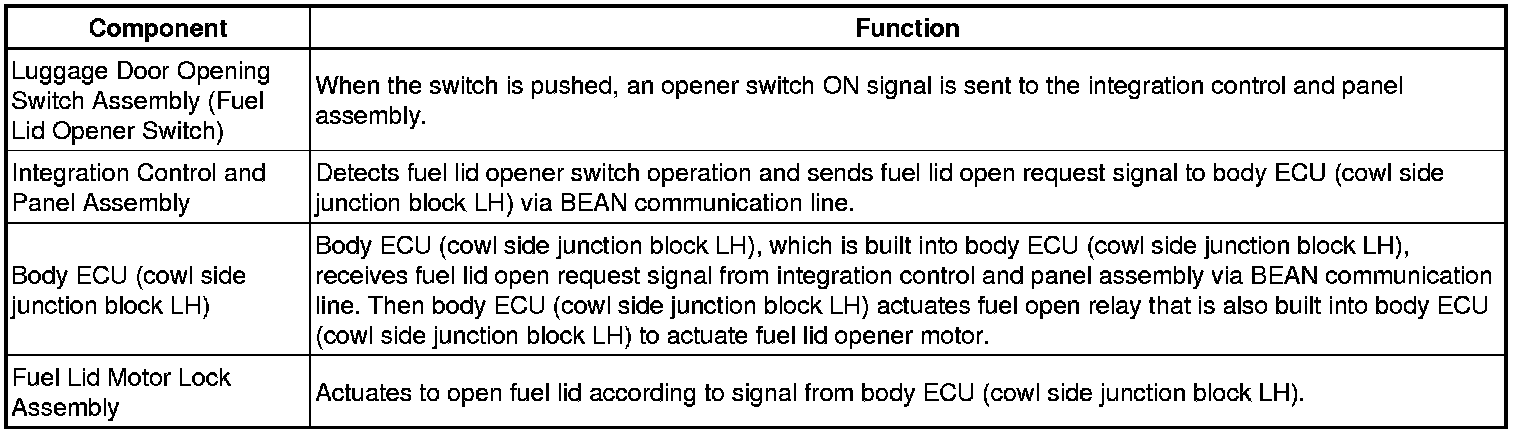

1. FUEL LID OPENER SYSTEM COMPONENT






2. FUEL LID OPENER SYSTEM FUNCTION
When pressing the opener switch, a fuel lid open request signal is sent to the body ECU (cowl side junction block LH) via the BEAN communication line, and the fuel lid opener motor actuates to open the fuel lid.
