Front Door: Testing and Inspection

ENGINE HOOD / DOOR: FRONT DOOR: ON-VEHICLE INSPECTION

1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

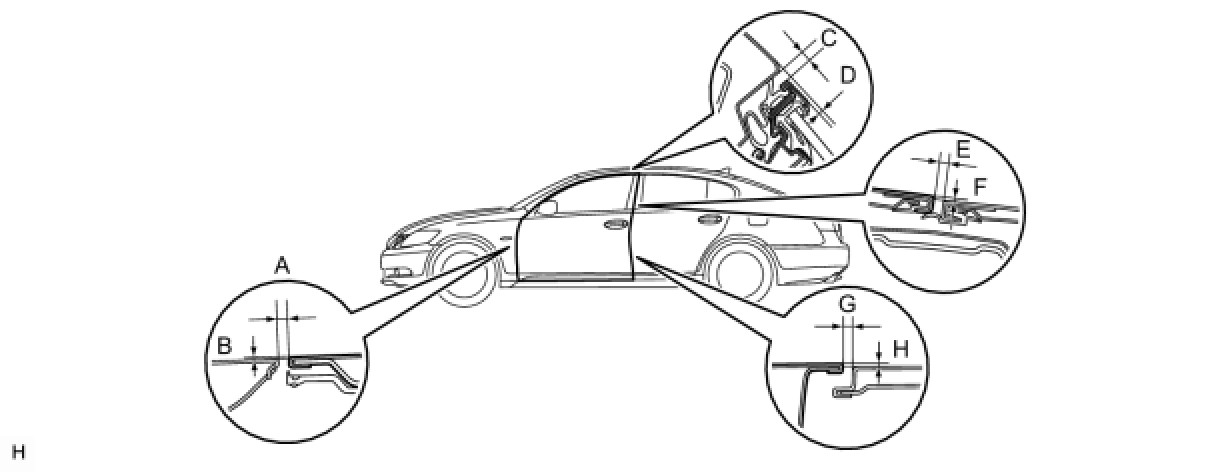

(a) Check that the clearance measurements of areas A to H are within the standard range.

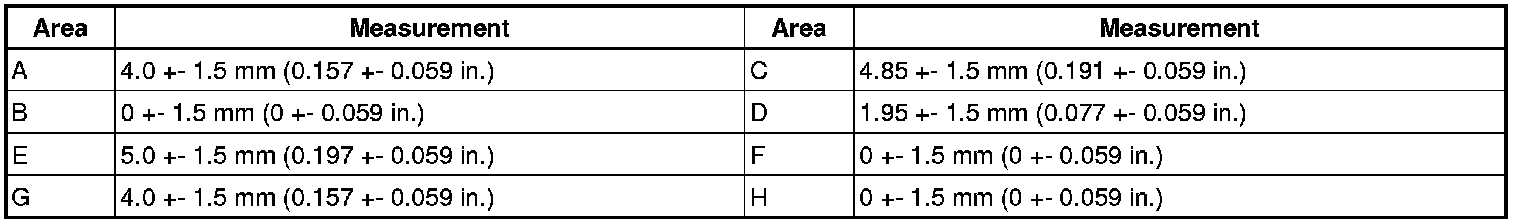

Standard:
