Reassembly

EXTERIOR: FRONT BUMPER: REASSEMBLY

1. INSTALL FRONT FENDER LINER RETAINER
2. INSTALL FRONT BUMPER PROTECTOR
(a) Install 2 new front bumper protectors.

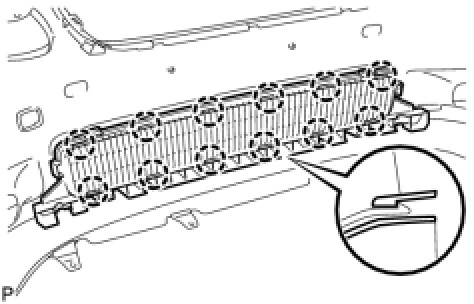

3. INSTALL LOWER RADIATOR GRILLE






(a) Engage the 12 claws and install the lower radiator grille.

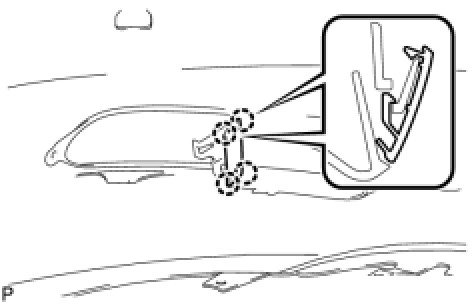

4. INSTALL NO. 2 RADIATOR GRILLE GARNISH






(a) Engage the 4 claws and install the No. 2 radiator grille garnish.
5. INSTALL NO. 1 RADIATOR GRILLE GARNISH
HINT:
Use the same procedure for the RH side and LH side.

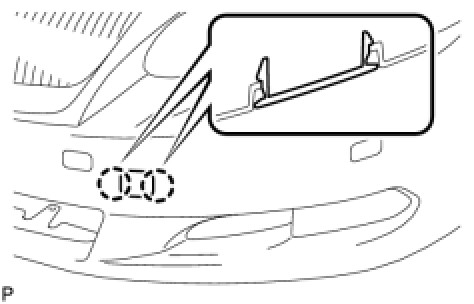

6. INSTALL FRONT BUMPER LOWER COVER






(a) Engage the 2 claws and install the front bumper lower cover.

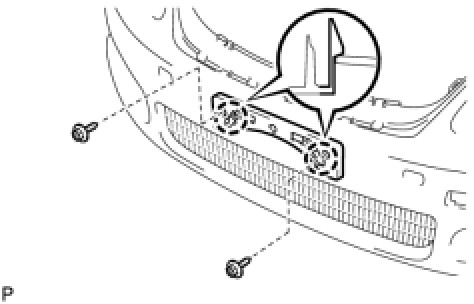

7. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET (w/ Bracket)






(a) Engage the 2 claws and install the front bumper extension mounting bracket.
(b) Install the 2 screws.
8. INSTALL RADIATOR GRILLE SUB-ASSEMBLY Installation

9. INSTALL RADIATOR GRILLE MOULDING Installation

10. INSTALL RADIATOR GRILLE PROTECTOR Installation

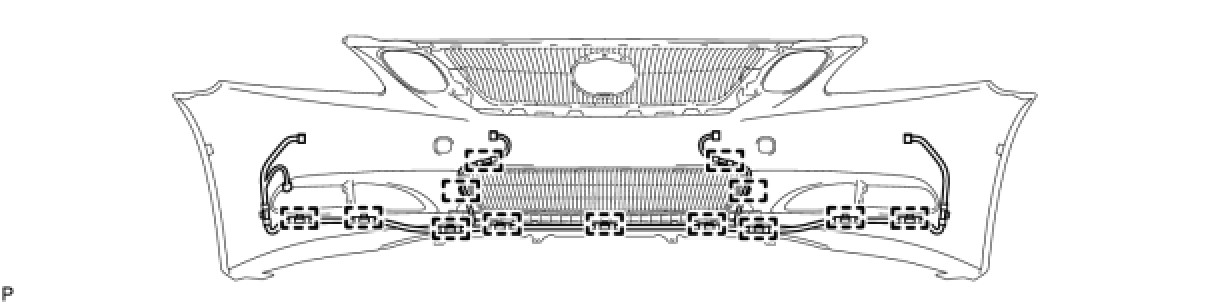

11. INSTALL ENGINE ROOM NO. 4 WIRE (w/ Intuitive Parking Assist System)
(a) Engage the 13 clamps and install the engine room No. 4 wire.





12. INSTALL NO. 3 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System) Installation

13. INSTALL FOG LIGHT ASSEMBLY LH Installation

14. INSTALL FOG LIGHT ASSEMBLY RH
HINT:
Use the same procedure for the RH side and LH side.
