Display Signal Circuit between Multi-display and Radio Receiver

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Display Signal Circuit between Multi-display and Radio Receiver

Display Signal Circuit between Multi-display and Radio Receiver

DESCRIPTION

This circuit sends a DVD image signal from the radio receiver to the multi-display.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (MULTI-DISPLAY - RADIO RECEIVER)





(a) Disconnect the x2 display connector.
(b) Disconnect the x1 receiver connector.

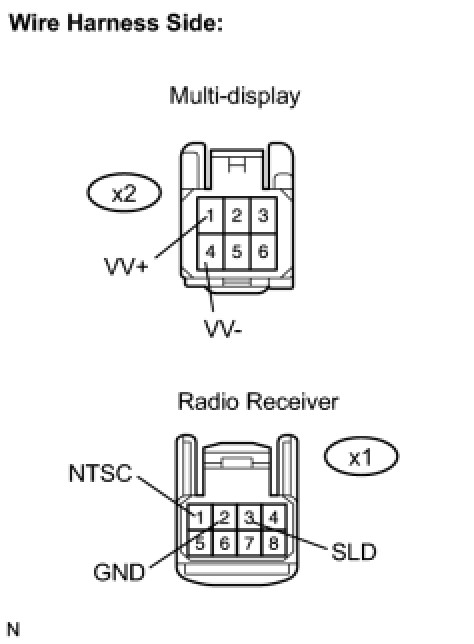

(c) Measure the resistance of the wire harness side connectors.

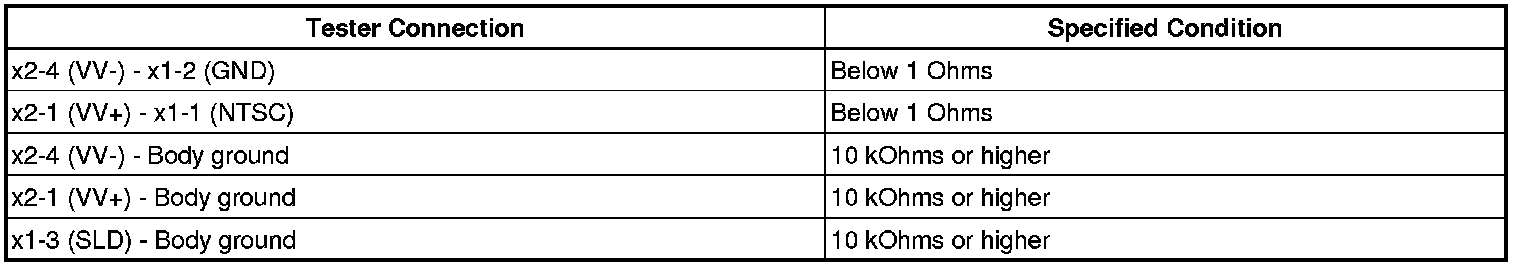

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
