NAVIGATION: NAVIGATION SYSTEM: GYRO Error

GYRO Error

INSPECTION PROCEDURE

PROCEDURE

1. CHECK VEHICLE SENSOR (NAVIGATION CHECK MODE)
(a) Enter the "Navigation Check" mode (Vehicle Sensors) Navigation Check Mode.

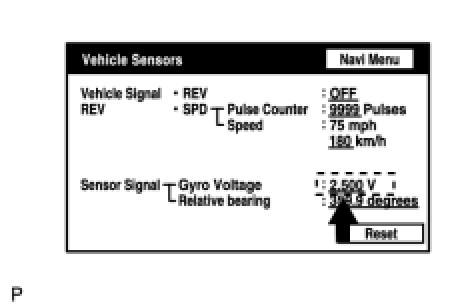

(b) Check the gyro voltage.
Standard voltage:
0.5 to 4.5 V
NG -- REPLACE NAVIGATION ECU
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
