Display Signal Circuit Between Multi-Display And Radio Receiver

NAVIGATION: NAVIGATION SYSTEM: Display Signal Circuit between Multi-display and Radio Receiver

Display Signal Circuit between Multi-display and Radio Receiver

DESCRIPTION

This circuit sends a DVD image signal from the radio receiver to the multi-display.

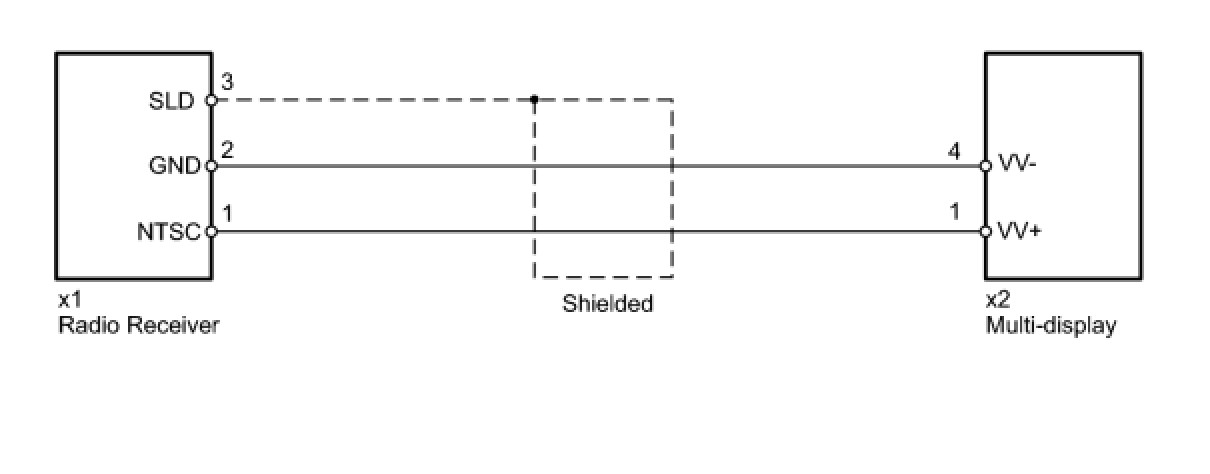

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - RADIO RECEIVER)

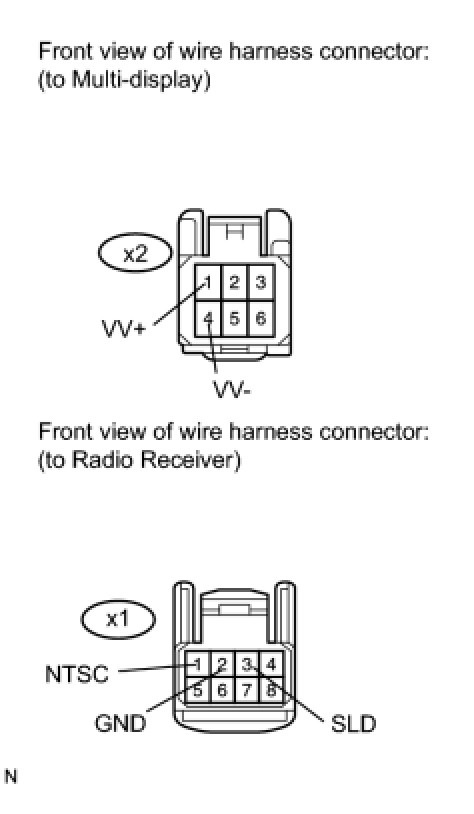

(a) Disconnect the x2 display connector.
(b) Disconnect the x1 receiver connector.

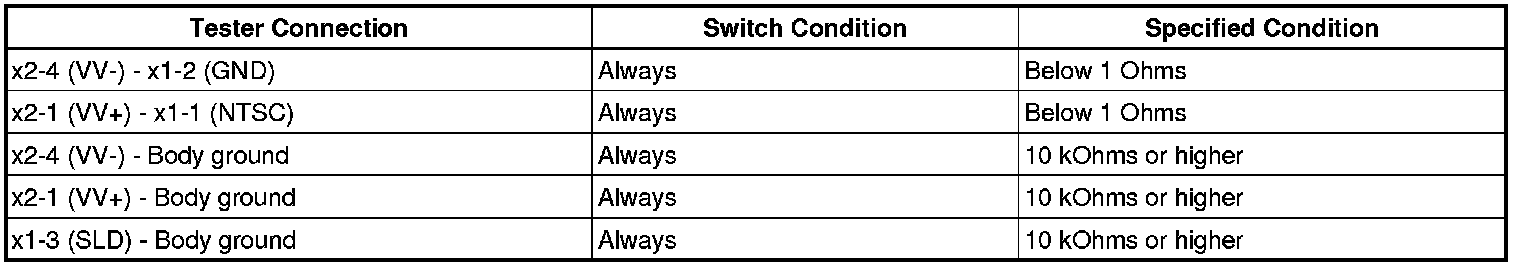

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
