Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: TERMINALS OF ECU

1. CHECK TELEVISION CAMERA ASSEMBLY

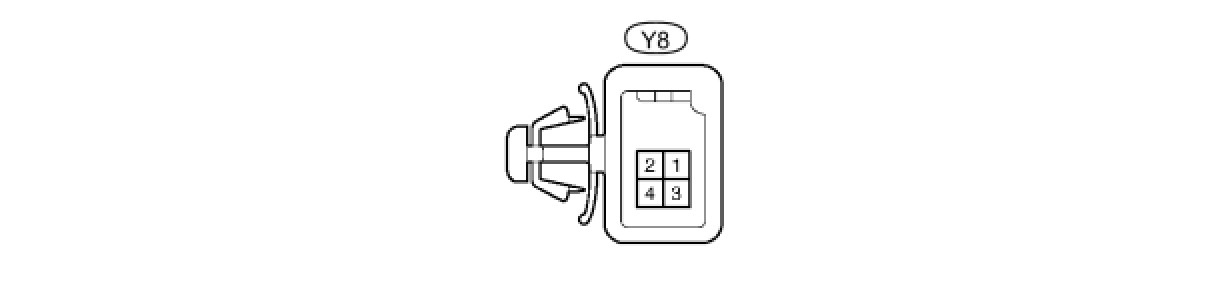

(a) Disconnect the Y8 camera connector.

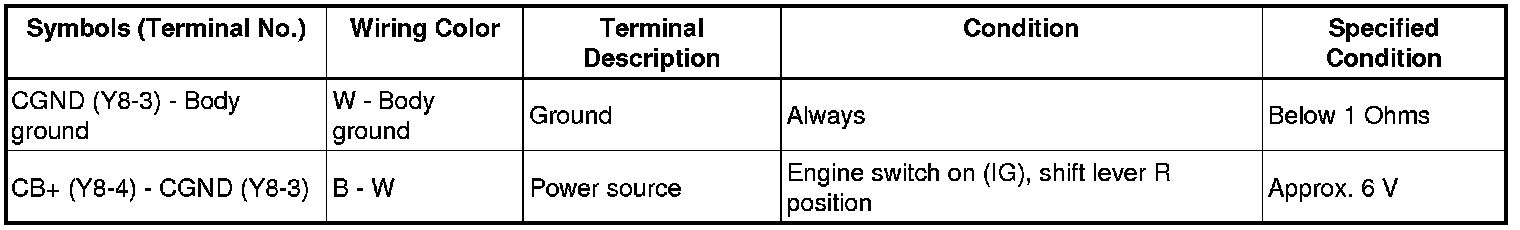

(b) Measure the voltage and resistance between each terminal of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the Y8 camera connector.
(d) Measure the voltage and frequency between each terminal of the connector.





If the result is not as specified, the camera may have a malfunction.

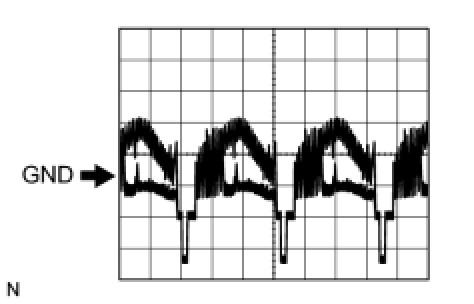

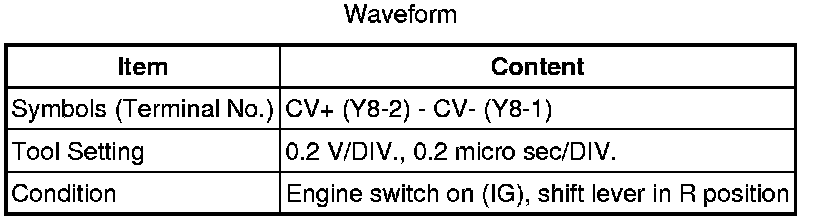

(e) Using an oscilloscope, check the waveform.






2. CHECK MULTI-DISPLAY Pinout Values and Diagnostic Parameters
