Intuitive Parking Assist System

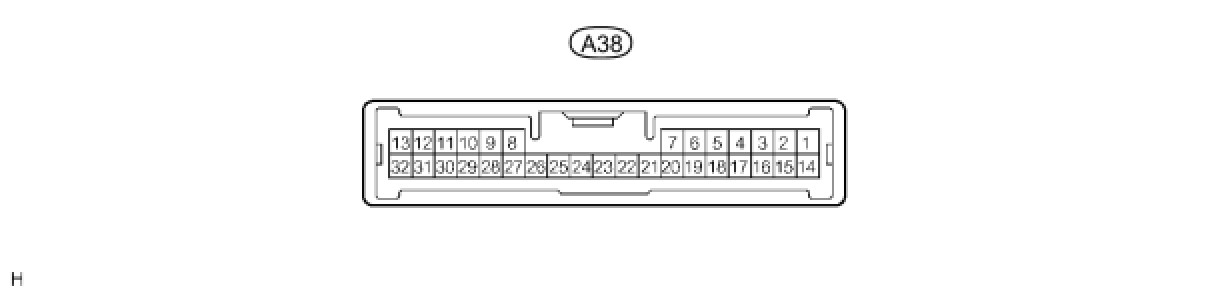

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: TERMINALS OF ECU

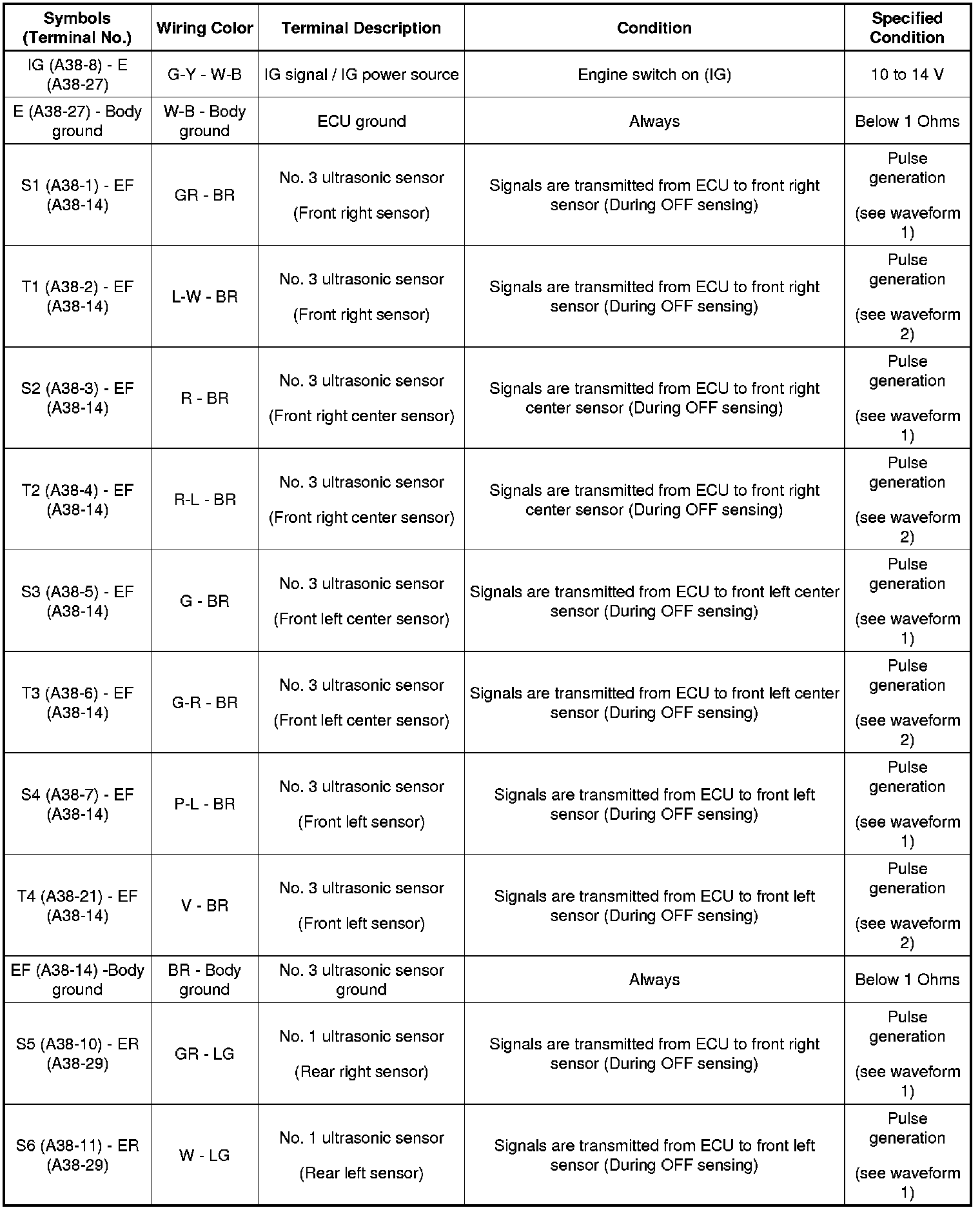

1. CHECK CLEARANCE WARNING ECU

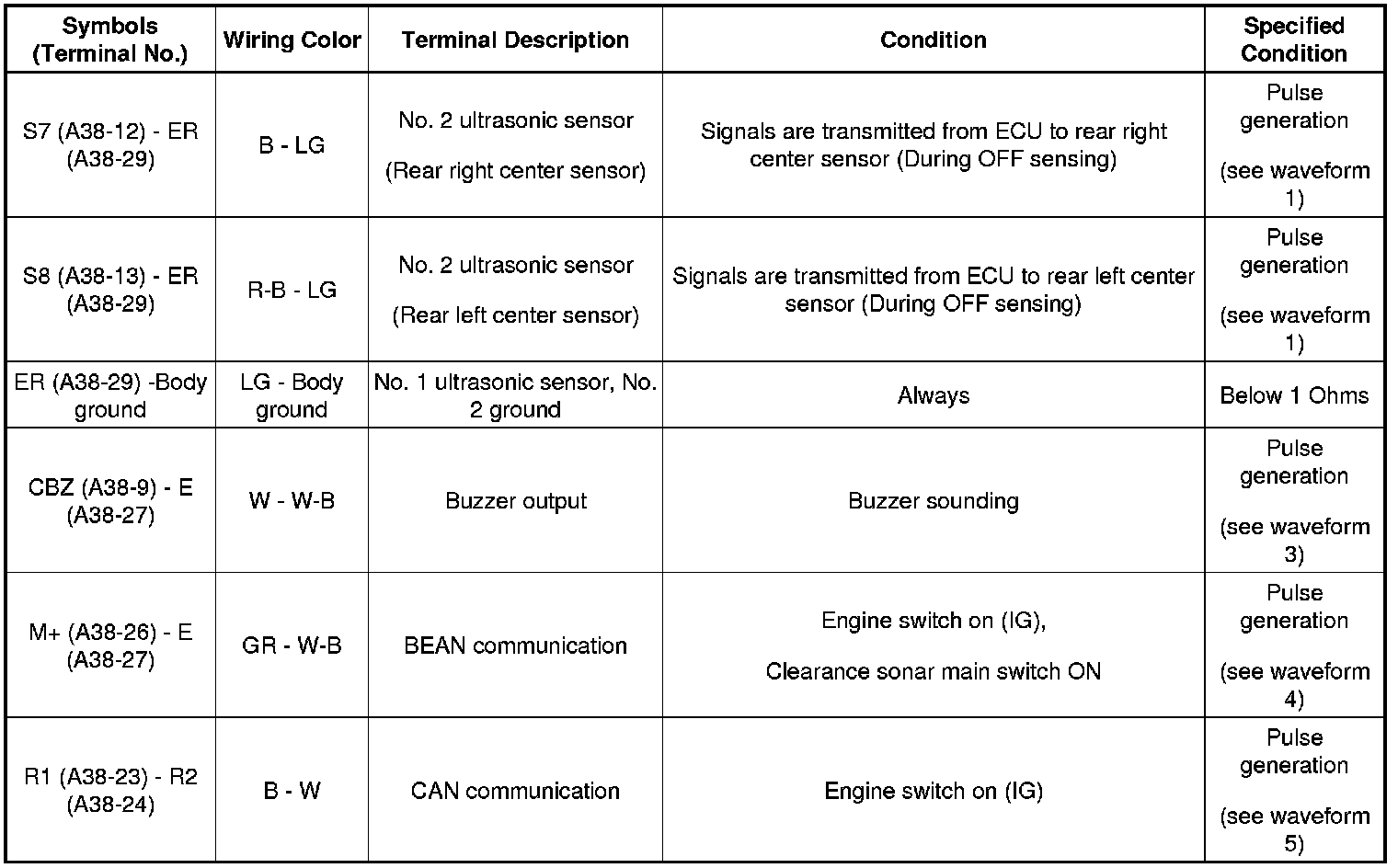

(a) Reference:

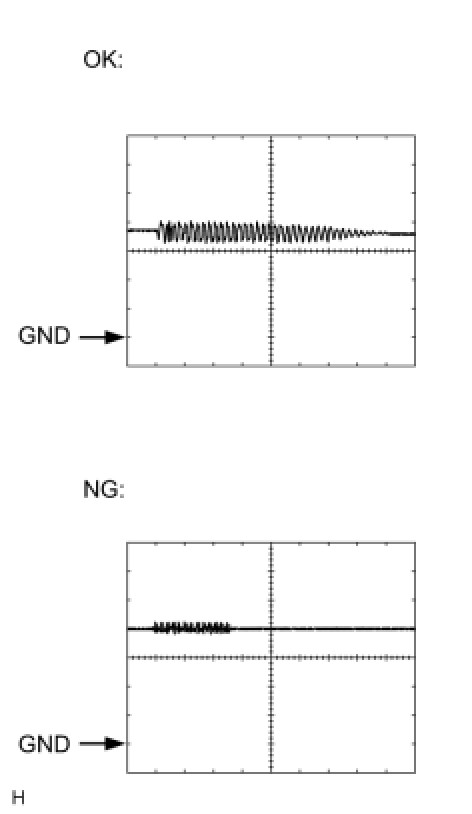

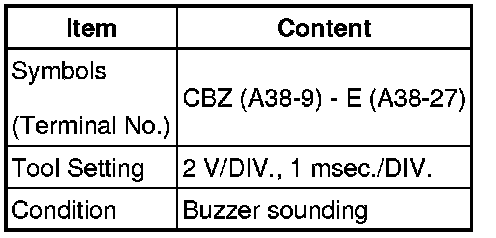

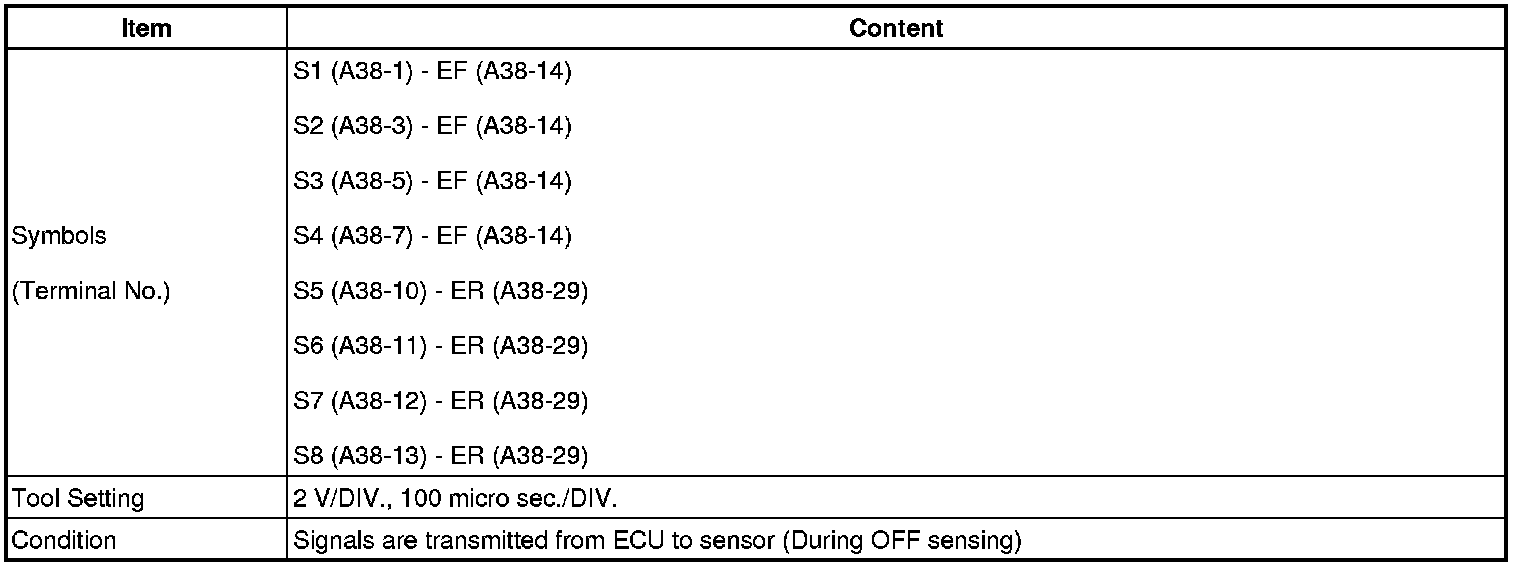

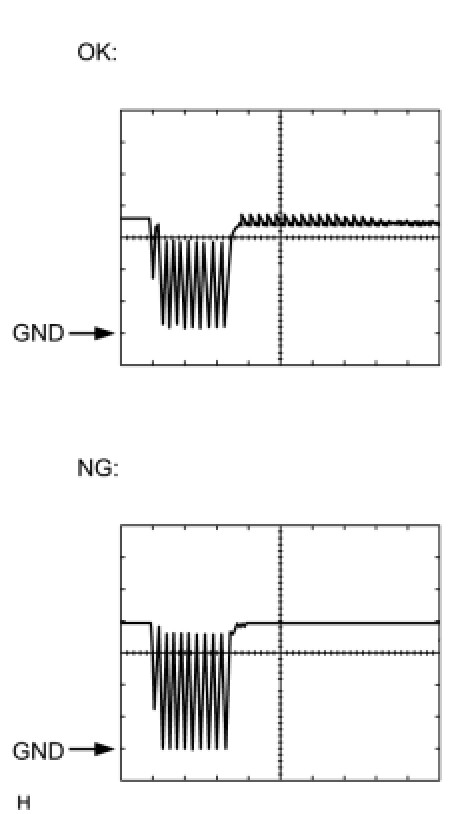

(1) Waveform 1

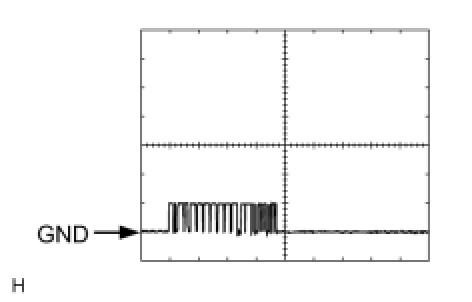

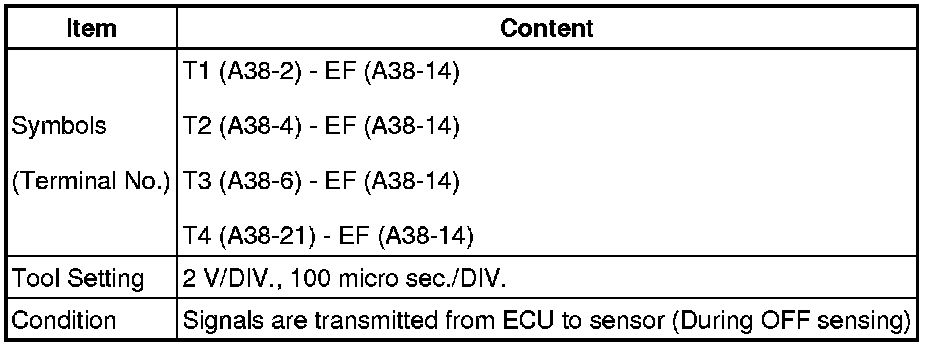

(2) Waveform 2

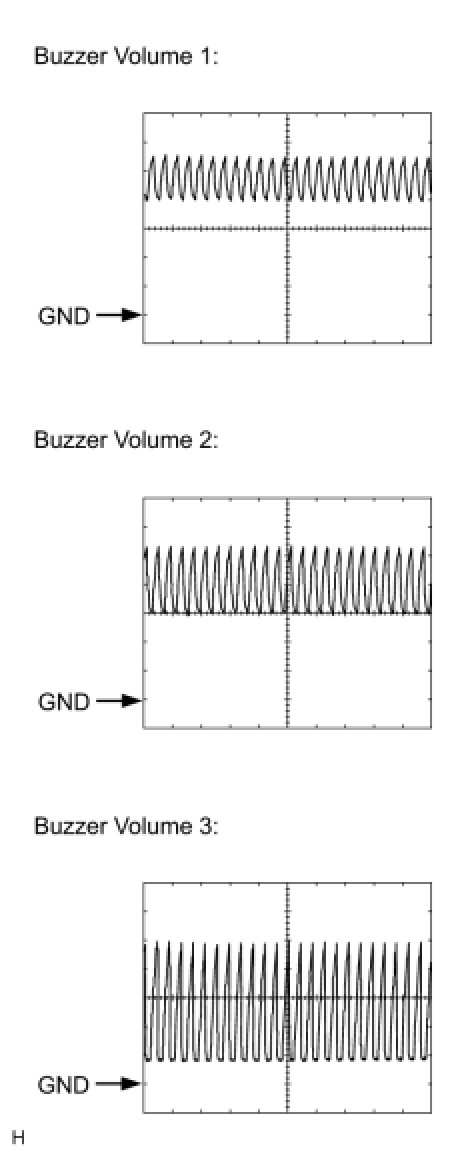

(3) Waveform 3

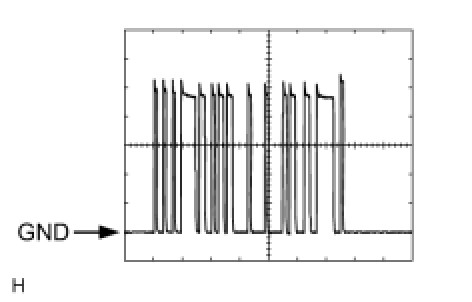

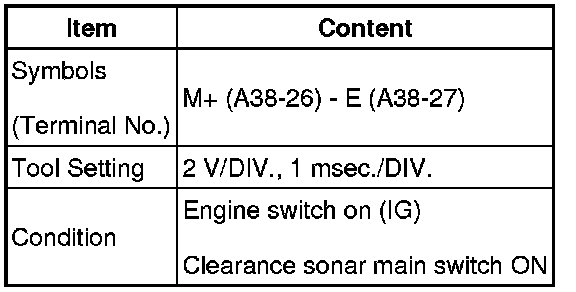

(4) Waveform 4










(5) Waveform 5
