No. 1 Clearance Warning Buzzer Circuit

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: No. 1 Clearance Warning Buzzer Circuit

No. 1 Clearance Warning Buzzer Circuit

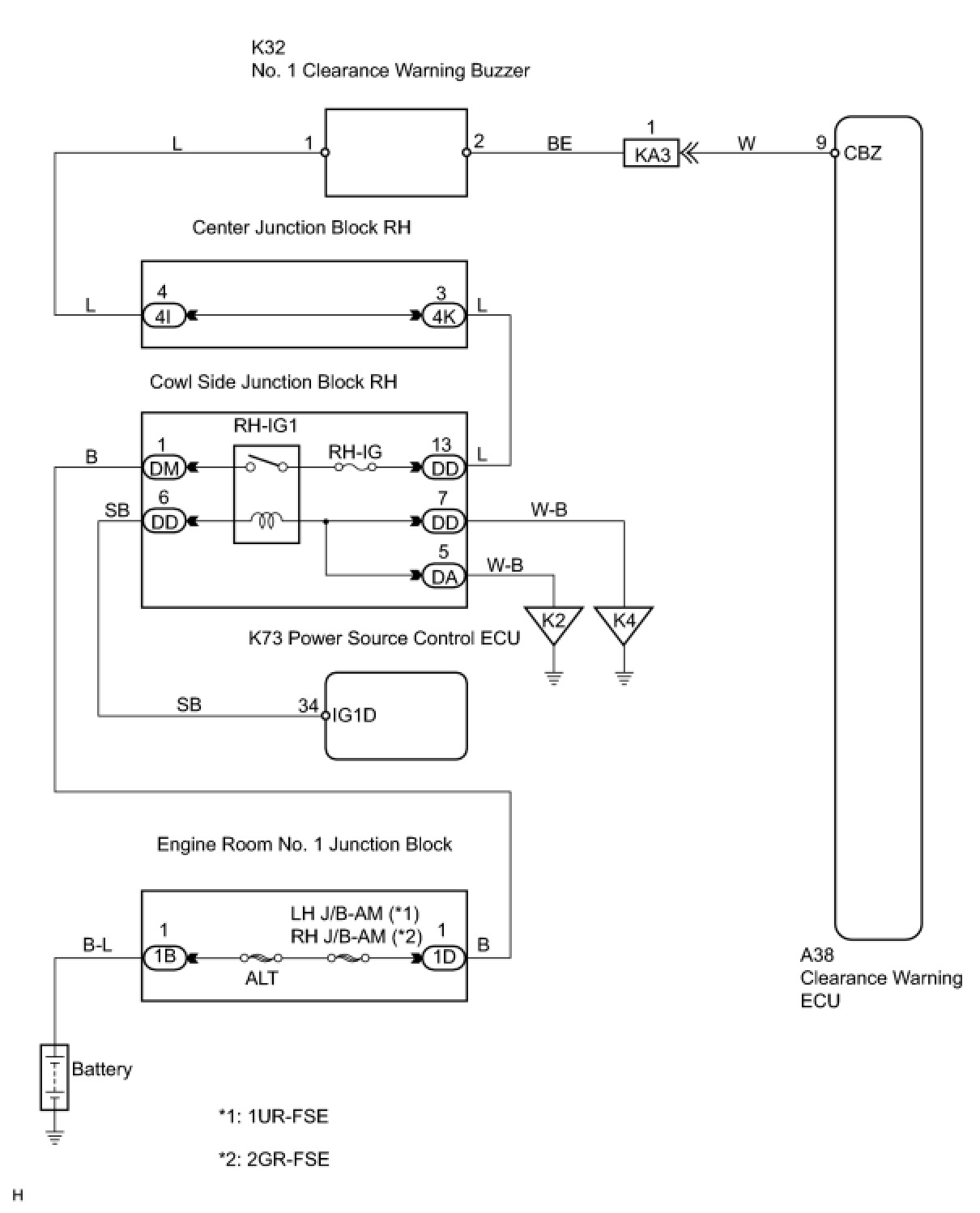

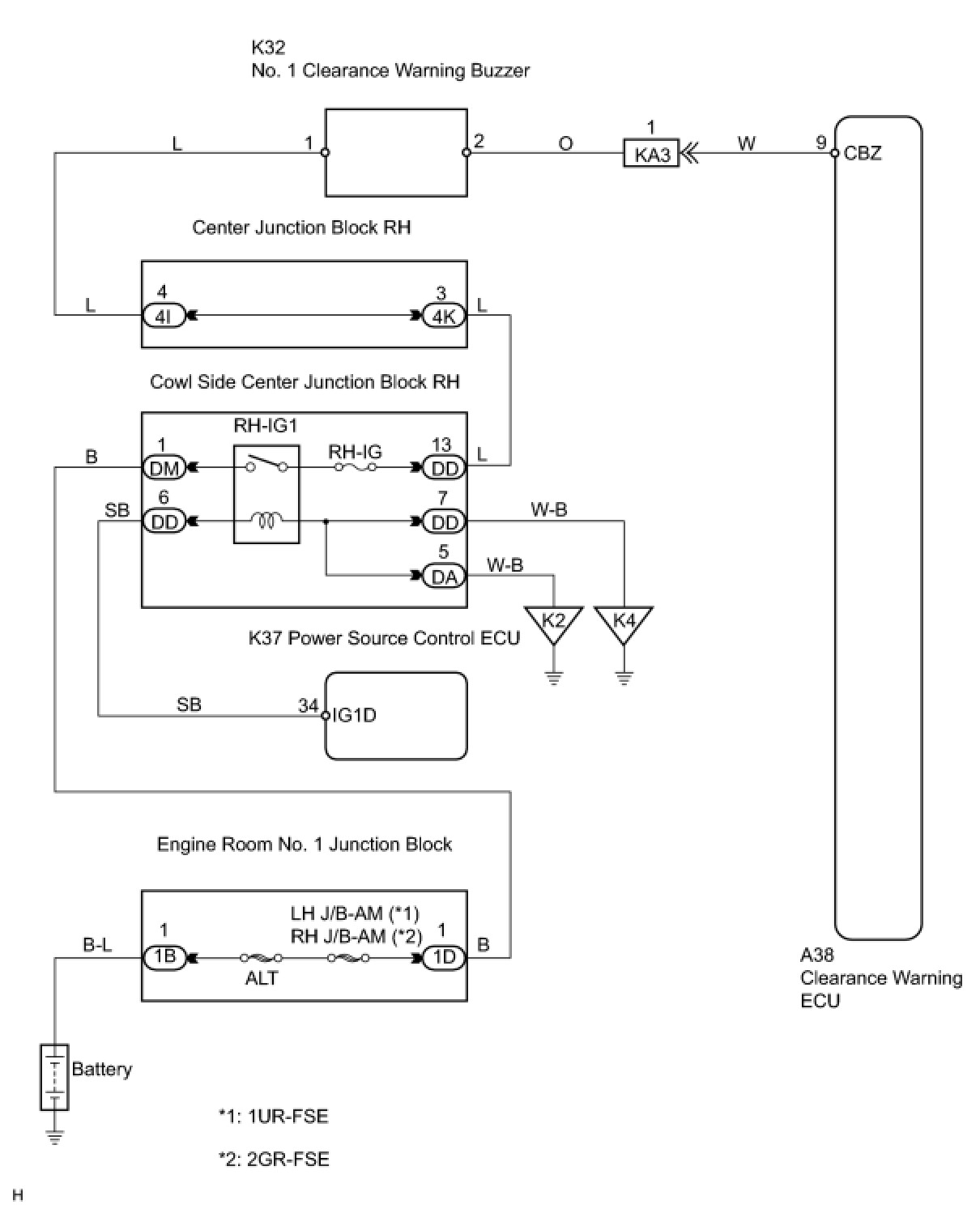

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST BY TECHSTREAM
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / INTUITIVE P/A.
(e) Turn the clearance sonar main switch ON.
(f) Select the Active Test, use the Techstream to generate a control command, and then check that the buzzer operates.

INTUITIVE P/A:





OK:
No. 1 clearance warning buzzer sounds.
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.
2. CHECK WIRE HARNESS (NO. 1 CLEARANCE WARNING BUZZER - CLEARANCE WARNING ECU)
(a) Disconnect the A38 ECU connector.





(b) Disconnect the K32 buzzer connector.

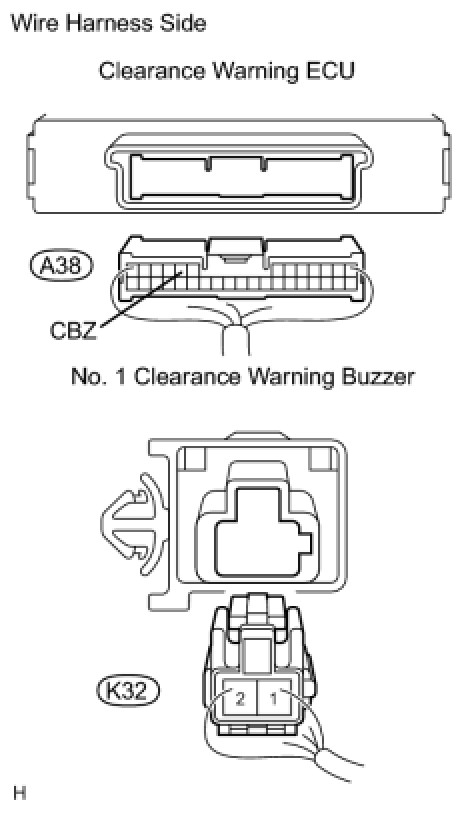

(c) Measure the resistance of the wire harness side connectors.

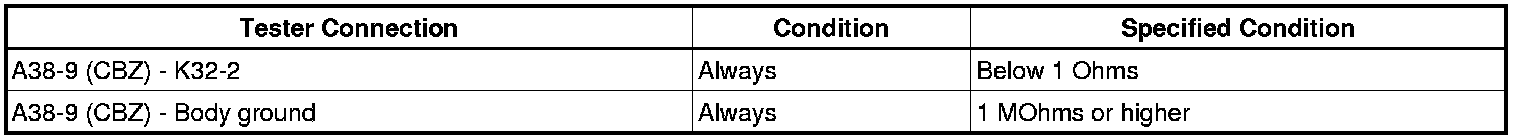

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
3. CHECK NO. 1 CLEARANCE WARNING BUZZER (TERMINAL VOLTAGE)





(a) Disconnect the K32 buzzer connector.

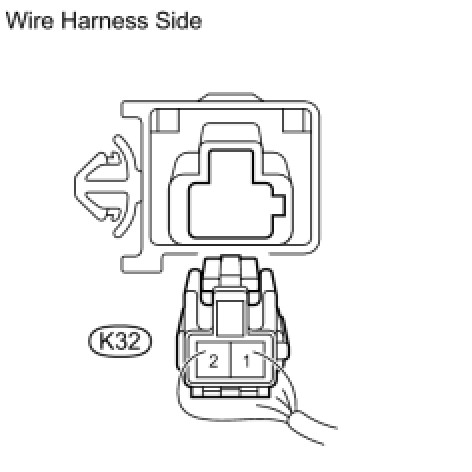

(b) Measure the voltage of the connector.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR (NO. 1 CLEARANCE WARNING BUZZER - BATTERY)
OK -- REPLACE NO. 1 CLEARANCE WARNING BUZZER
