Horn Circuit

THEFT DETERRENT: THEFT DETERRENT SYSTEM: Horn Circuit

Horn Circuit

DESCRIPTION
- When the theft deterrent system changed from the armed state to the alarm sounding state, the front controller transmits a signal to cause the horns to sound at 0.4 second intervals.

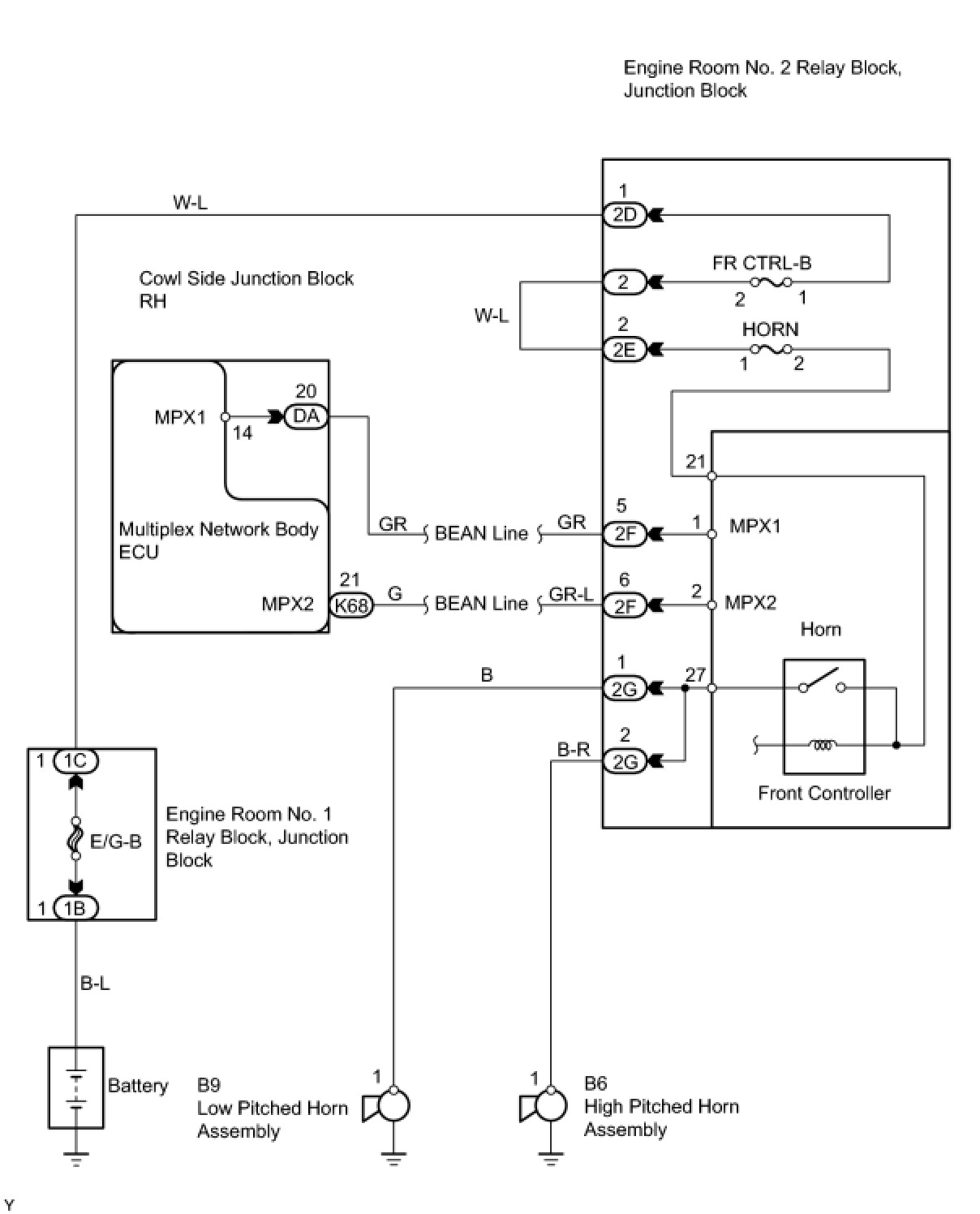

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HORN ASSEMBLY
(a) Press the horn switch and check if the vehicle horns sound normally.
OK:
Vehicle horns sound normally.
NG -- Go to HORN SYSTEM
OK -- REPLACE COWL SIDE JUNCTION BLOCK RH (MULTIPLEX NETWORK BODY ECU)
