Installation

ENGINE IMMOBILIZER: CERTIFICATION ECU: INSTALLATION

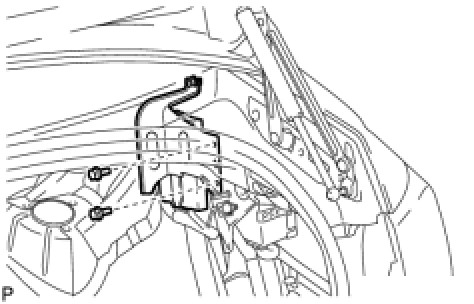

1. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)






(a) Install the certification ECU (smart key ECU assembly) with the 2 bolts.
(b) Connect the connector.
2. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER RH Installation

3. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation

4. INSTALL ROPE HOOK
5. INSTALL REAR FLOOR FINISH PLATE Installation

6. INSTALL ROPE HOOK ASSEMBLY
7. INSTALL TOOL BOX Installation

8. INSTALL TOOL BOX BOARD
9. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER RH Installation

10. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER LH Installation

11. INSTALL LUGGAGE COMPARTMENT FLOOR MAT Installation

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
Some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

13. REGISTER ECU COMMUNICATION ID
NOTICE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.

14. REGISTER KEY
NOTICE:
When replacing the certification ECU (smart key ECU assembly), perform initialization Engine Immobilizer System.
