Installation

CELLULAR COMMUNICATION: TELEPHONE ANTENNA: INSTALLATION

1. INSTALL TELEPHONE ANTENNA ASSEMBLY

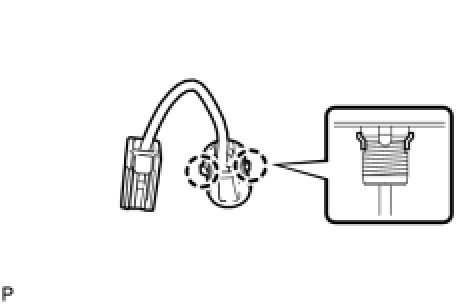

(a) Attach the 2 claws to install the telephone antenna.

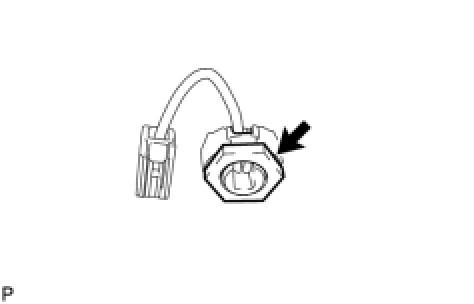

(b) Install the antenna nut.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)

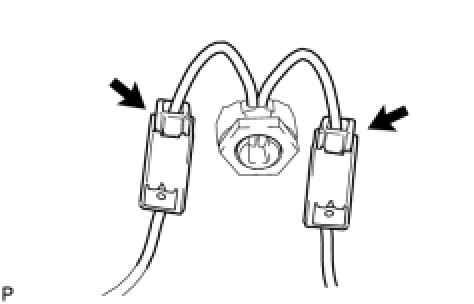

(c) Connect the 2 connectors.

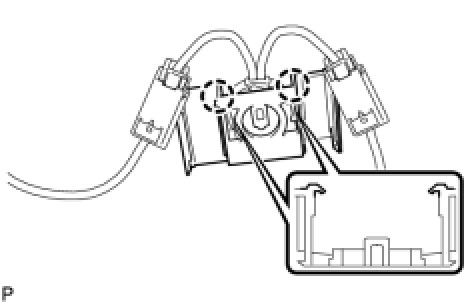

(d) Attach the 2 claws to install the protector.

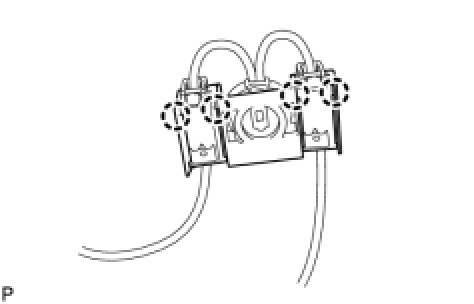

(e) Attach the 4 claws to install the 2 antenna cord connectors.
2. INSTALL ROOF HEADLINING ASSEMBLY
(a) Install the roof headlining Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
