U1109

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: U1109: Lost Communication with Rear Active Stabilizer ECU

DTC U1109 - Lost Communication with Rear Active Stabilizer ECU

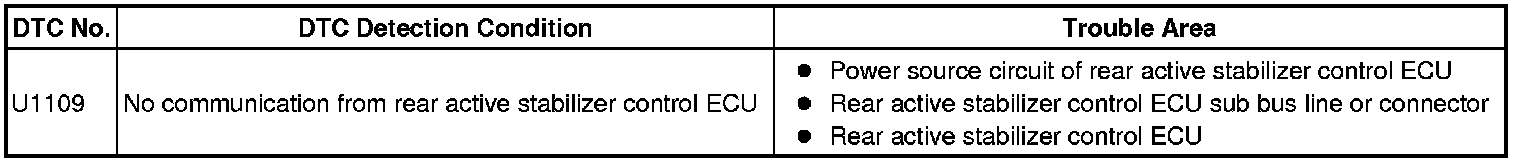

DESCRIPTION





HINT:
For vehicles with 1UR-FSE and active stabilizer suspension system.

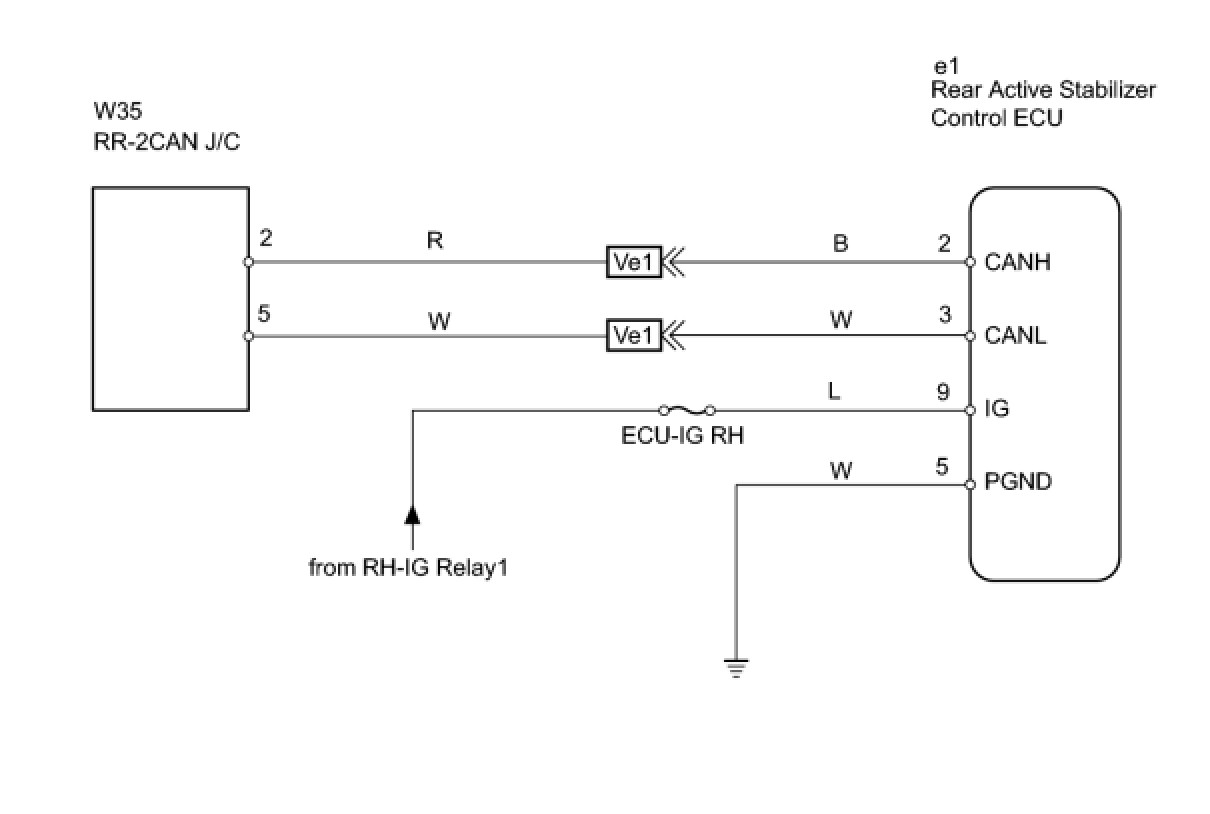

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC
(a) Check for DTCs.
HINT:
If CAN No.2 bus DTC U1002 is output, troubleshoot for U1002 and check for malfunctions in the CAN main bus circuit.

Result:






B -- CHECK DIAGNOSTIC TROUBLE CODE CHART
A -- Continue to next step.

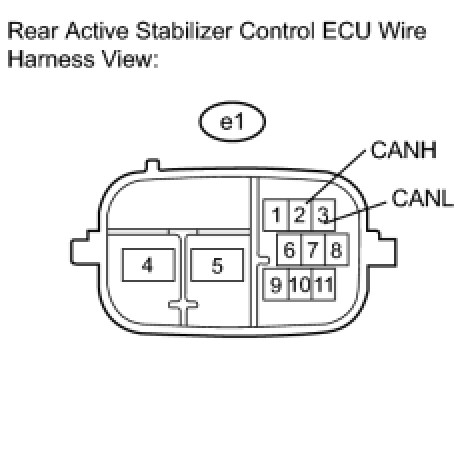

2. CHECK CAN BUS LINE FOR DISCONNECTION (REAR ACTIVE STABILIZER CONTROL ECU SUB BUS LINE)
(a) Turn the engine switch off.





(b) Disconnect the rear active stabilizer control ECU connector (e1).
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE REAR ACTIVE STABILIZER CONTROL ECU SUB BUS LINE OR CONNECTOR (CANH, CANL)
OK -- Continue to next step.

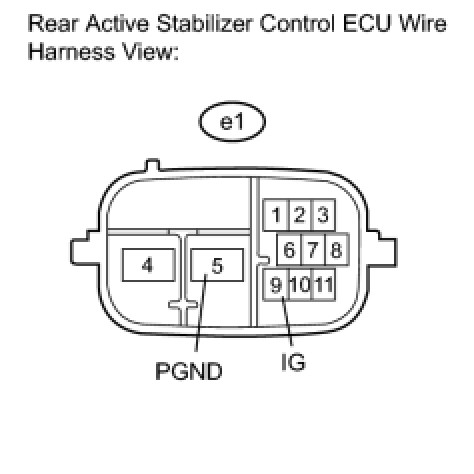

3. CHECK WIRE HARNESS (IG, PGND)





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE REAR ACTIVE STABILIZER CONTROL ECU
