Engine Control System - SFI System

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: U0101: Lost Communication with TCM

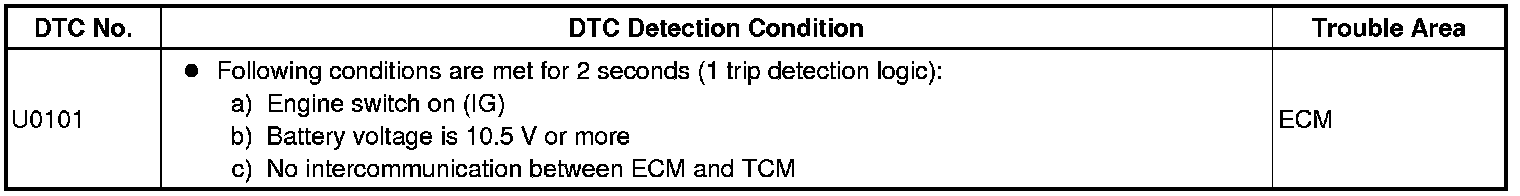

DTC U0101 - Lost Communication with TCM

DESCRIPTION

The ECM (engine control unit) and the TCM (transmission control unit) are located inside the ECM. The ECM intercommunicates with the TCM through the CAN (controller area network).
If there is a problem in this intercommunication, the ECM sets the DTC.

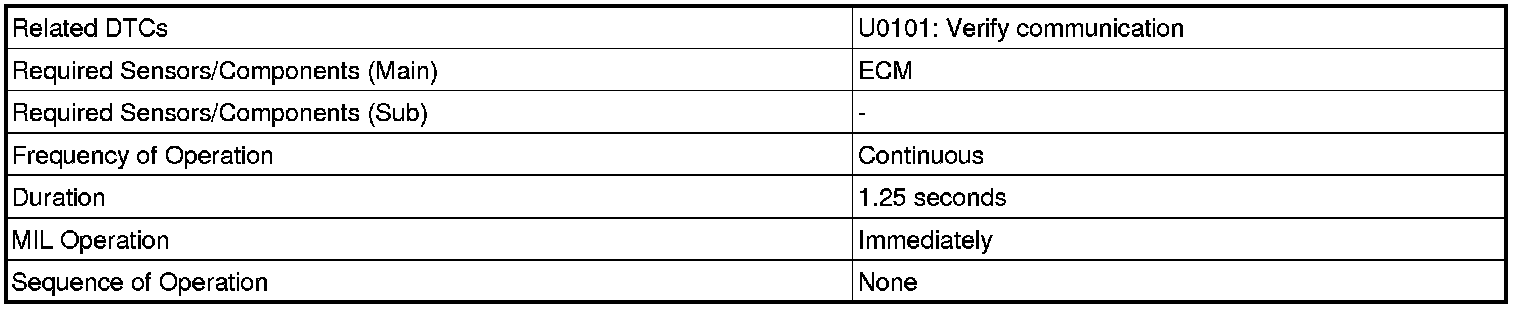

MONITOR STRATEGY

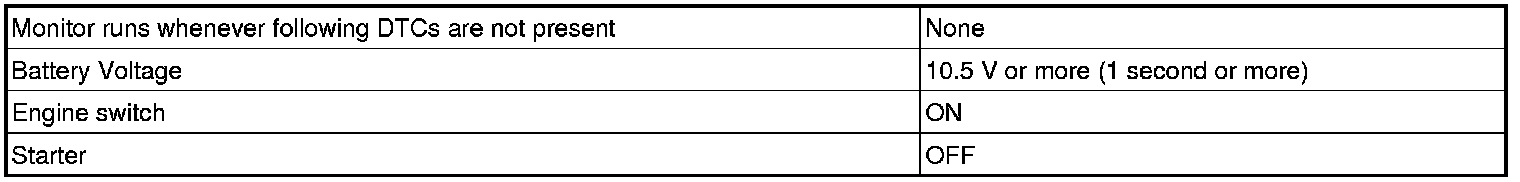

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC U0101)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.
(e) Read DTCs.

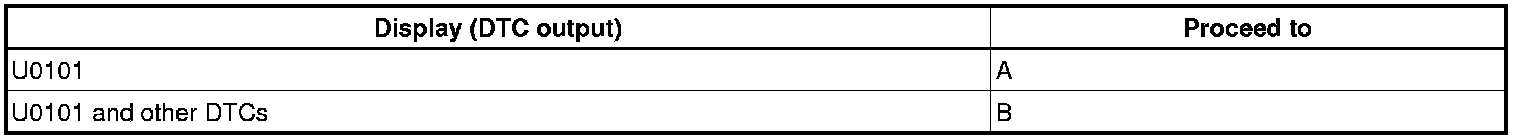

Result:






B -- Go to DTC Chart Diagnostic Trouble Code Descriptions
A -- REPLACE ECM
