AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 5C-40: Camera Picture Error

DTC 5C-40 - Camera Picture Error

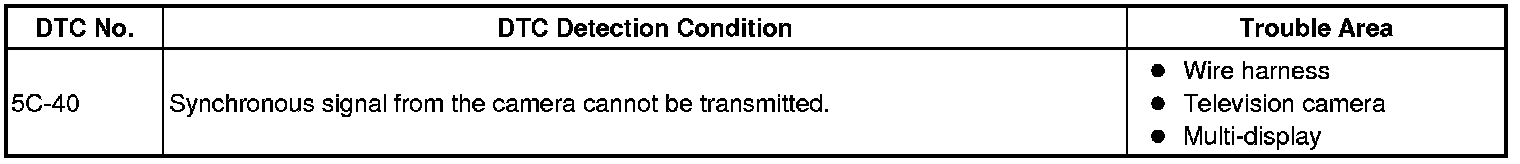

DESCRIPTION

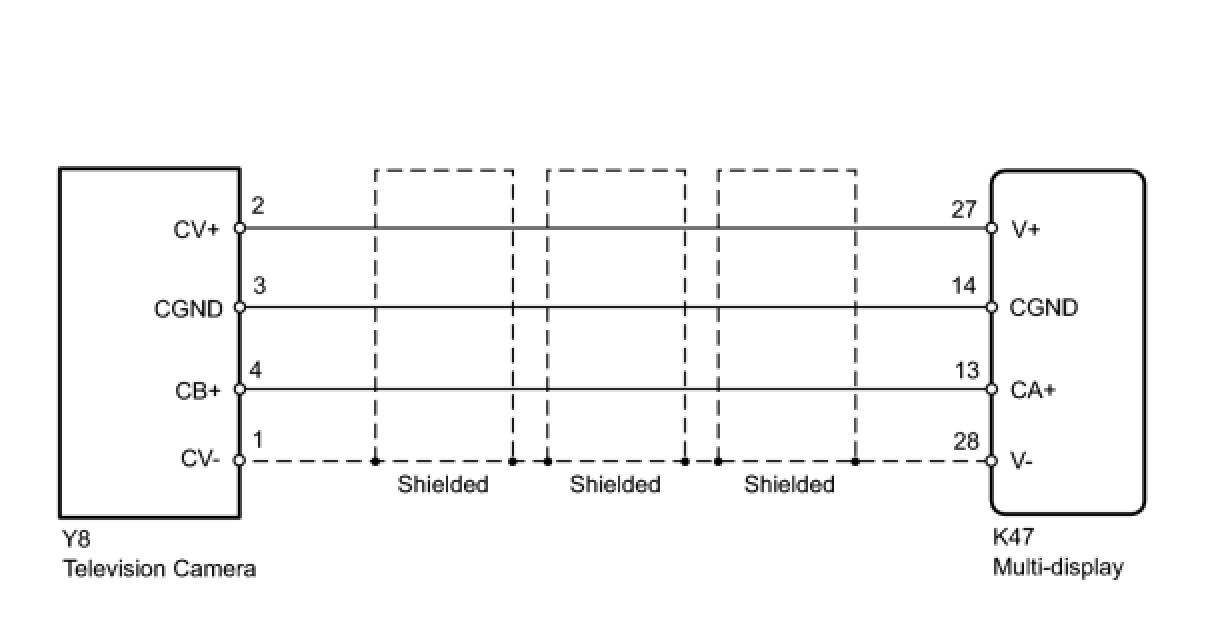

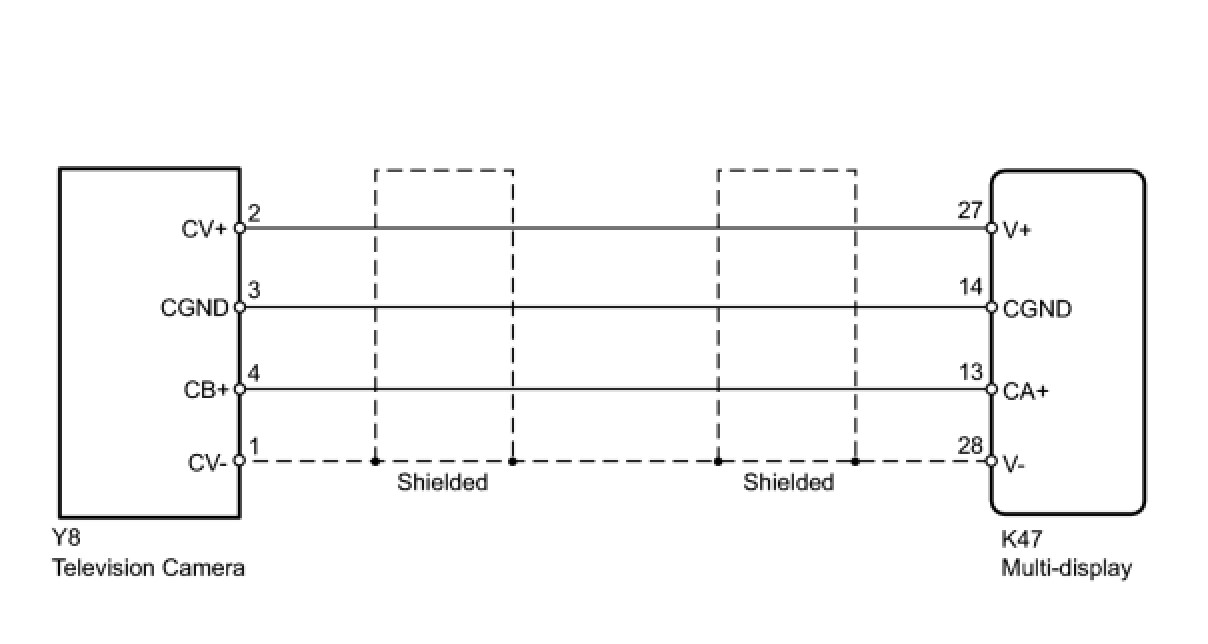

WIRING DIAGRAM





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK WIRE HARNESS (MULTI-DISPLAY - TELEVISION CAMERA)





(a) Disconnect the K47 display connector.
(b) Disconnect the Y8 camera connector.

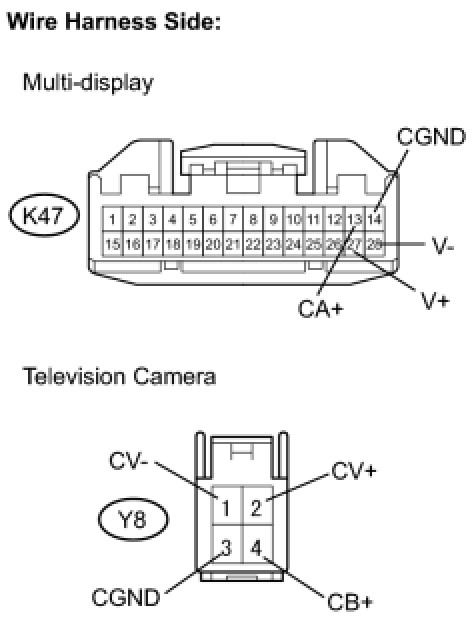

(c) Measure the resistance of the wire harness side connectors.

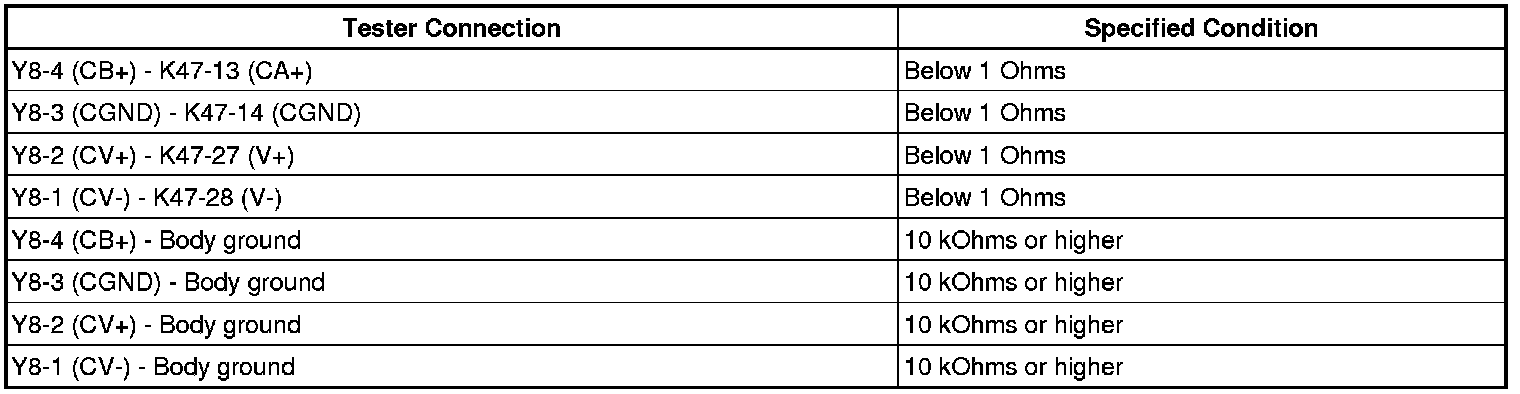

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. CHECK MULTI-DISPLAY (CA+ VOLTAGE)

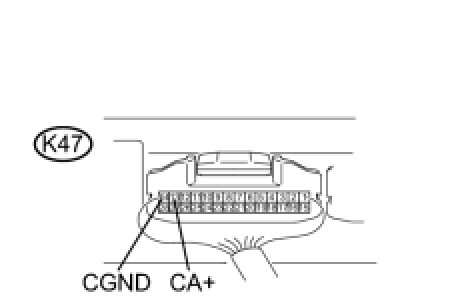

(a) Measure the voltage of the display.
Standard voltage:






NG -- REPLACE MULTI-DISPLAY
OK -- REPLACE TELEVISION CAMERA ASSEMBLY
