Air Mix Damper Control Servo Motor Circuit (Driver Side) - Air Conditioning System

AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1446/46: Air Mix Damper Control Servo Motor Circuit (Driver Side)

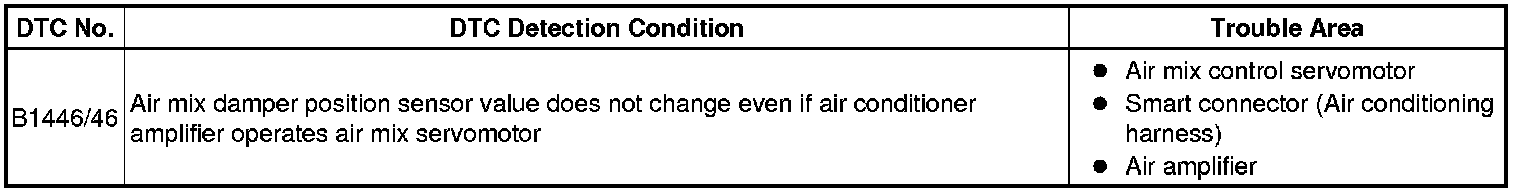

DTC B1446/46 - Air Mix Damper Control Servo Motor Circuit (Driver Side)

DESCRIPTION

The air mix damper servo sends pulse signals to inform the air conditioner amplifier of the damper position. The air conditioner amplifier activates the motor (normal, reverse) based on the signals to move the air mix damper (driver seat) to any position. As a result, the amount of air that has passed through the evaporator and is now passing through the heater core is adjusted, and the temperature of the air blowing toward the driver seat side is controlled.
HINT:
Confirm that no mechanical problem is present because this diagnostic code can be output when either a damper link or damper is mechanically locked.

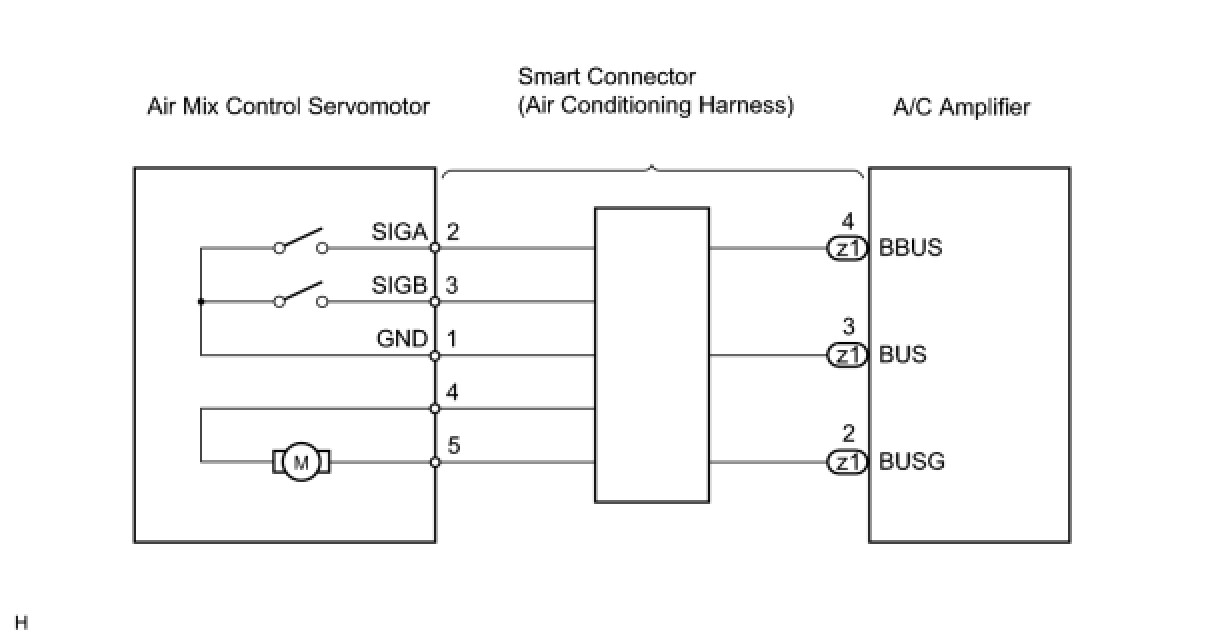

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Select the items below in the Data List, and read the displays on the Techstream.

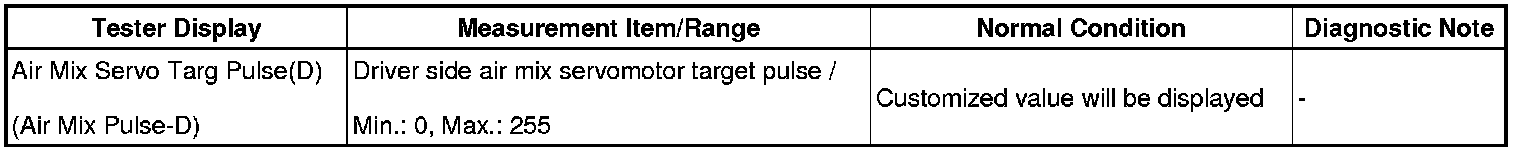

Data List / Air Conditioner:





OK:
The display is as specified in the normal condition.

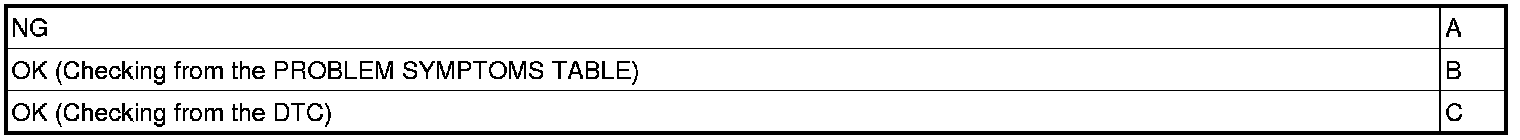

Result:





C -- REPLACE AIR CONDITIONING AMPLIFIER
B -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
A -- Continue to next step.
2. REPLACE AIR MIX CONTROL SERVOMOTOR
HINT:
Since the servomotor cannot be inspected while it is removed from the vehicle, replace the servomotor with a normal one and check that the condition returns to normal.

OK:
Same problem does not occur.
OK -- END
NG -- REPLACE AIR CONDITIONING HARNESS
