Navigation System

NAVIGATION: NAVIGATION SYSTEM: 45-47: High Temperature

DTC 45-47 - High Temperature

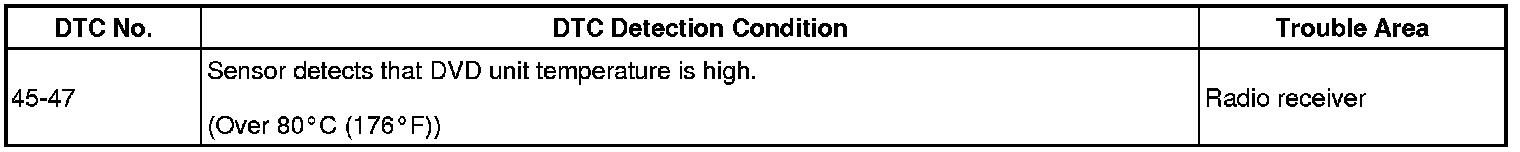

DESCRIPTION





INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK RADIO RECEIVER
(a) Park the vehicle in a cool place.
(b) Check that the temperature of the radio receiver has become sufficiently low, and start the engine. Check that the malfunction disappears.
OK:
Malfunction disappears.
NG -- REPLACE RADIO RECEIVER
OK -- END
