Front Airbag Sensor LH Circuit Malfunction - Airbag System

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1615/14: Front Airbag Sensor LH Circuit Malfunction

DTC B1615/14 - Front Airbag Sensor LH Circuit Malfunction

DESCRIPTION

The front airbag sensor LH consists of the diagnostic circuit, the frontal deceleration sensor, etc.
If the center airbag sensor assembly receives signals from the frontal deceleration sensor, it determines whether or not the SRS should be activated.

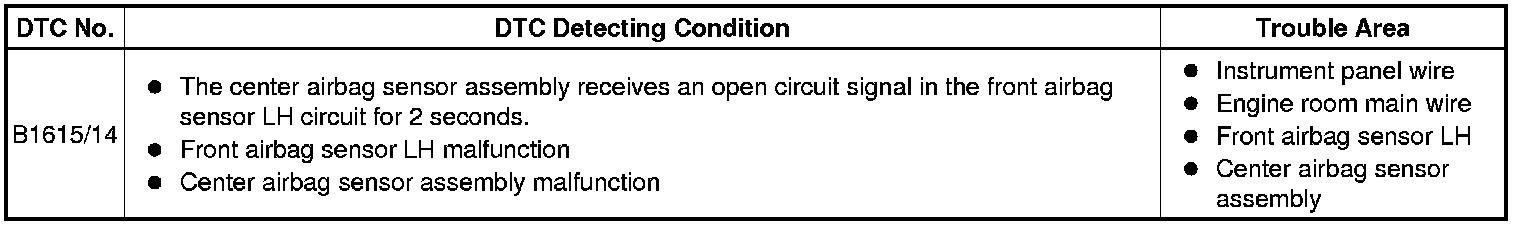

DTC B1615/14 is recorded when a malfunction is detected in the front airbag sensor LH circuit.

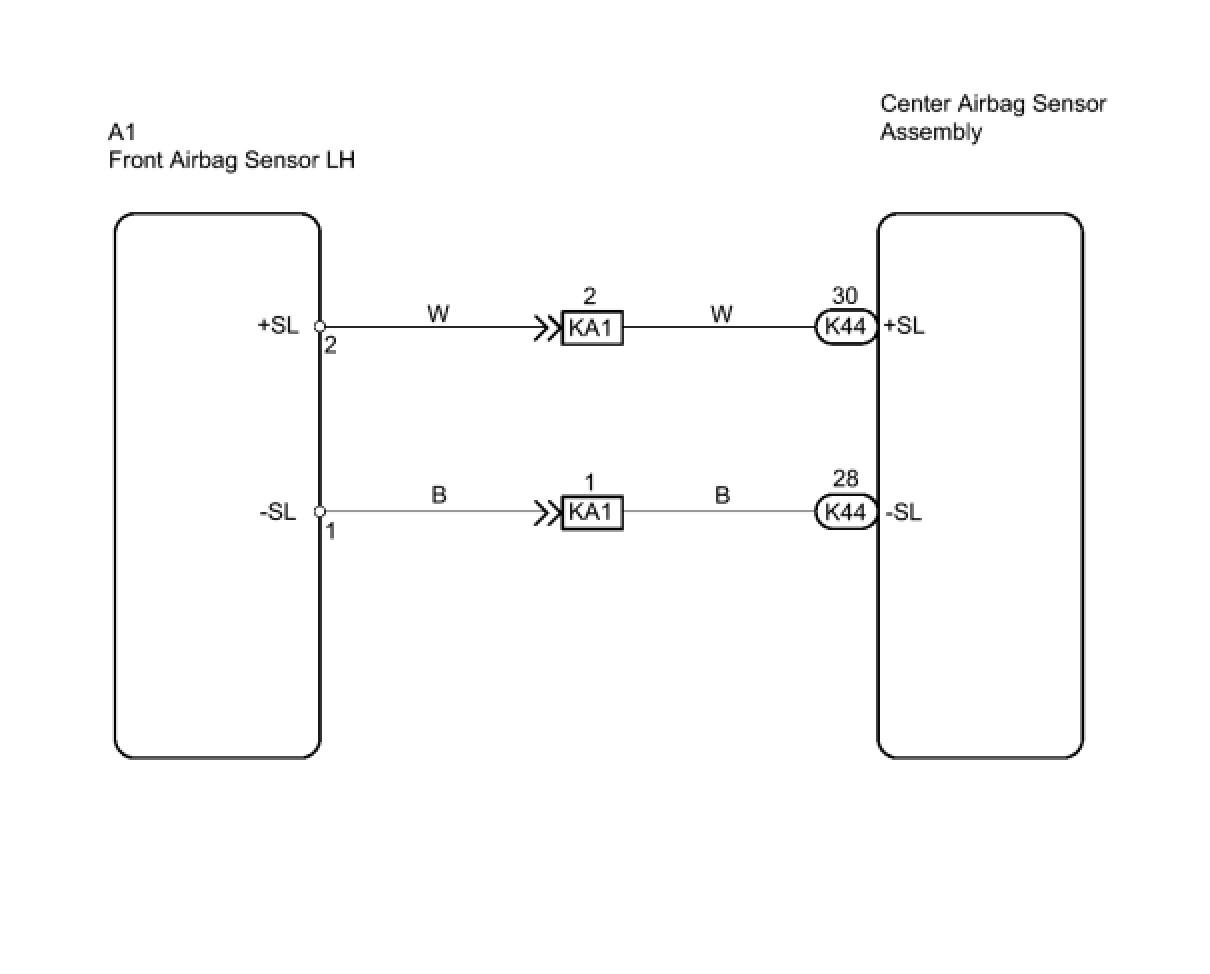

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

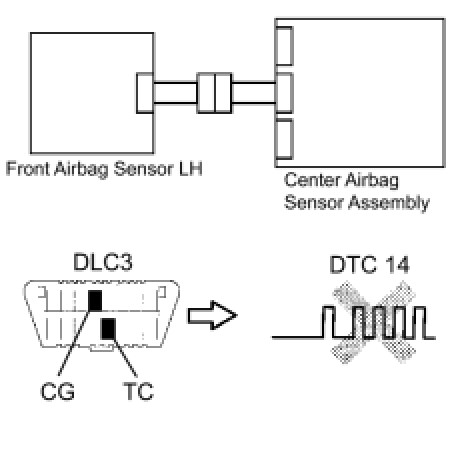

1. CHECK DTC





(a) Turn the engine switch on (IG), and wait for at least 60 seconds.
(b) Clear the DTCs stored in memory DTC Check / Clear.
(c) Turn the engine switch off.
(d) Turn the engine switch on (IG), and wait for at least 60 seconds.
(e) Check the DTCs DTC Check / Clear.
OK:
DTC B1615/14 is not output.
HINT:
Codes other than DTC B1615/14 may be output at this time, but they are not related to this check.

OK -- USE SIMULATION METHOD TO CHECK
NG -- Continue to next step.
2. CHECK CONNECTION OF CONNECTORS
(a) Turn the engine switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Check that the connector is properly connected to the center airbag sensor assembly and the front airbag sensor LH.
OK:
The connectors are connected.
NG -- CONNECT CONNECTORS, THEN GO TO STEP 1
OK -- Continue to next step.

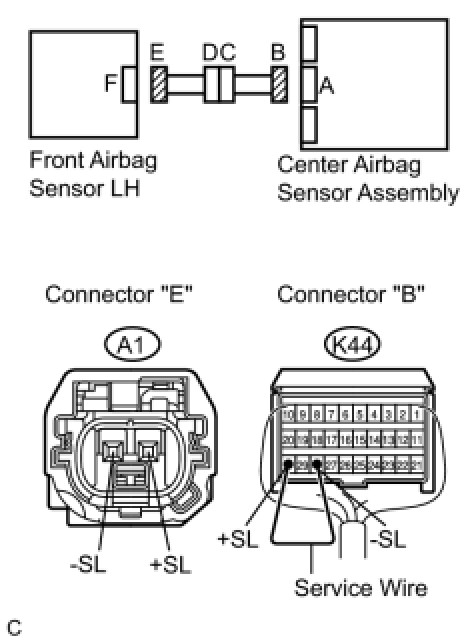

3. CHECK FRONT AIRBAG SENSOR LH CIRCUIT (OPEN)





(a) Disconnect the connectors from the center airbag sensor assembly and the front airbag sensor LH.
(b) Using a service wire, connect K44-30 (+SL) and K44-28 (-SL) of connector "B".
NOTICE:
Do not forcibly insert a service wire into the terminals of the connector when connecting.
(c) Measure the resistance according to the value(s) in the table below.
Resistance:






NG -- CHECK ENGINE ROOM MAIN WIRE
OK -- Continue to next step.

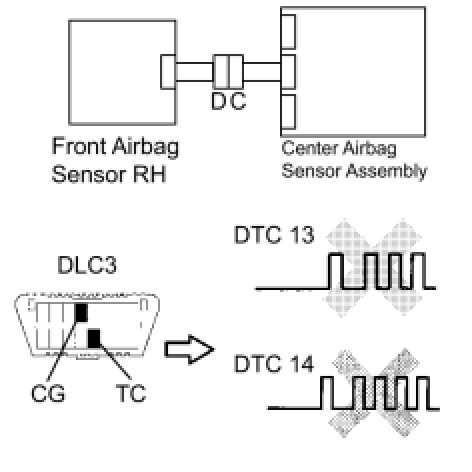

4. CHECK FRONT AIRBAG SENSOR LH





(a) Disconnect the service wire from connector "B".
(b) Connect the connectors to the center airbag sensor assembly.
(c) Interchange the front airbag sensor RH with LH and connect the connectors to them.
(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(e) Turn the engine switch off, and wait for at least 60 seconds.
(f) Clear the DTCs stored in memory DTC Check / Clear.
(g) Turn the engine switch off.
(h) Turn the engine switch on (IG), and wait for at least 60 seconds.
(i) Check the DTCs DTC Check / Clear.

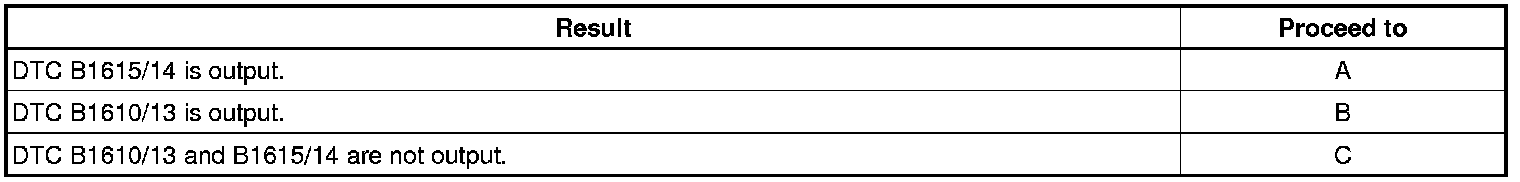

Result:





HINT:
Codes other than DTC B1610/13 and B1615/14 may be output at this time, but they are not related to this check.

B -- REPLACE FRONT AIRBAG SENSOR LH
A -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
C -- USE SIMULATION METHOD TO CHECK

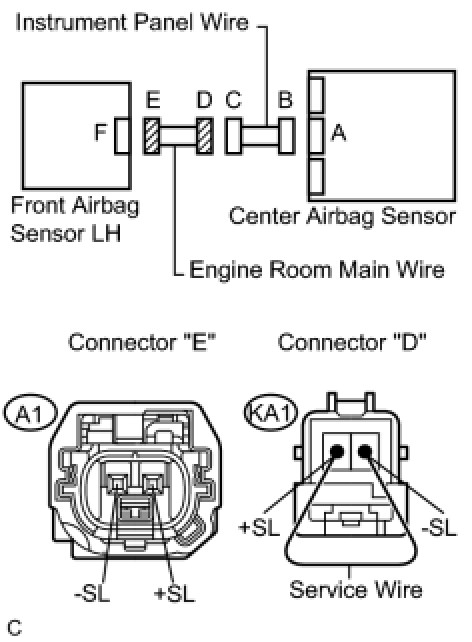

5. CHECK ENGINE ROOM MAIN WIRE





(a) Disconnect the service wire from connector "B".
(b) Disconnect the engine room main wire connector from the instrument panel wire.
(c) Using a service wire, connect KA1-2 (+SL) and KA1-1 (-SL) of connector "D".
NOTICE:
Do not forcibly insert a service wire into the terminals of the connector when connecting.

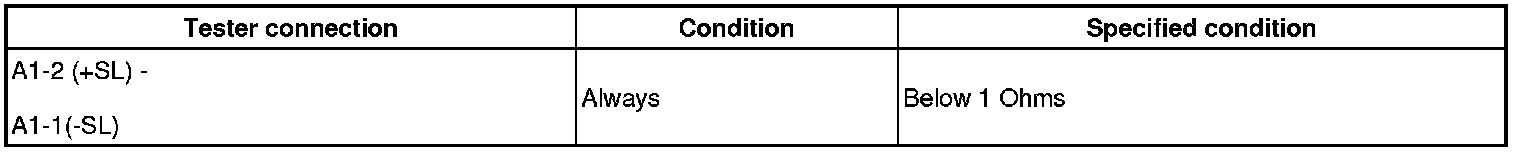

(d) Measure the resistance according to the value(s) in the table below.
Resistance:






NG -- REPAIR OR REPLACE ENGINE ROOM MAIN WIRE
OK -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
